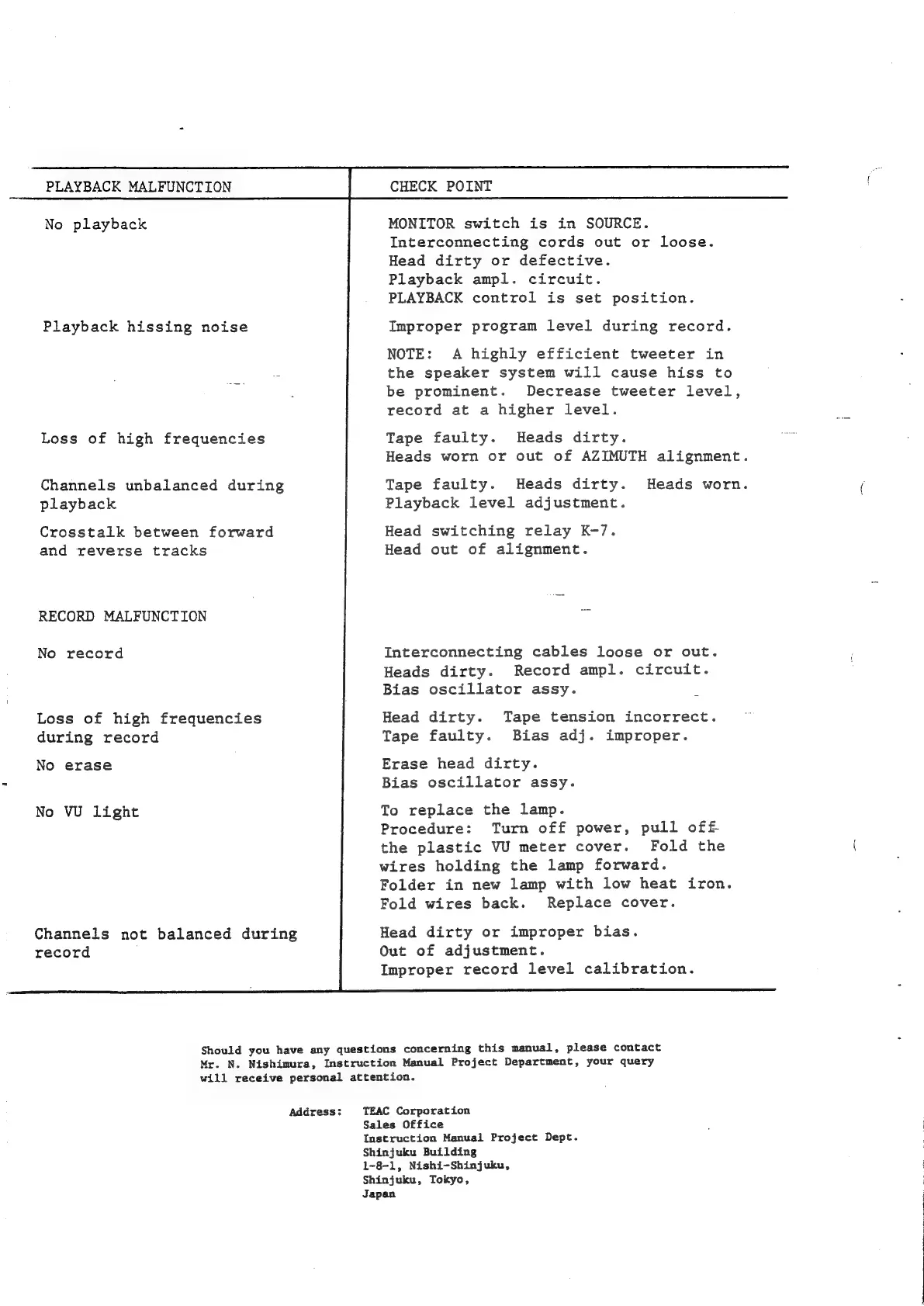

Teac A-4010GSL - Playback Malfunctions; Record Malfunctions

PLAYBACK MALFUNCTION
No playback
Playback hissing noise
Loss of high frequencies
Channels unbalanced during
playback
Crosstalk between forward
and reverse tracks
RECORD MALFUNCTION
No record
Loss of high frequencies
during record
No erase
No VU light
Channels not balanced during
record
CHECK POINT
MONITOR switch is in SOURCE.
Interconnecting cords out or loose.
Head dirty or defective.
Playback ampl. circuit.
PLAYBACK control is set position.
Improper program level during record.
NOTE: A highly efficient tweeter in
the speaker system will cause hiss to
be prominent. Decrease tweeter level,
record at a higher level.
Tape faulty. Heads dirty.
Heads worn or out of AZIMUTH alignment.
Tape faulty. Heads dirty. Heads worn.
Playback level adjustment.
Head switching relay K-7.
Head out of alignment.
Interconnecting cables loose or out.
Heads
dirty.
Record
ampl.
circuit.
Bias oscillator assy. 7
Head dirty. Tape tension incorrect.
Tape faulty. Bias adj. improper.
Erase head dirty.
Bias oscillator assy.
To replace the lamp.
Procedure: Turn off power, pull off
the plastic VU meter cover. Fold the
wires holding the lamp forward.
Folder in new lamp with low heat iron.
Fold wires back. Replace cover.
Head dirty or improper bias.
Out of adjustment.
Improper record level calibration.
Should
you
have
any
questions
concerning
this
manual,
please
contact
Mr.
N.
Nishimura,
Instruction
Manual
Project
Department,
your
query
will
receive
personal
attention.
