1ECHANICAL
Heads:
Tape Width:
Tape Speed:
Motors:
Wow and Flutter:
Fast Winding Time:
Operating Position:
Power Requirements:
Weight:
ELECTRICAL
Transistors:
Diodes:
Frequency Response:
Equalization:
Minimum Input:

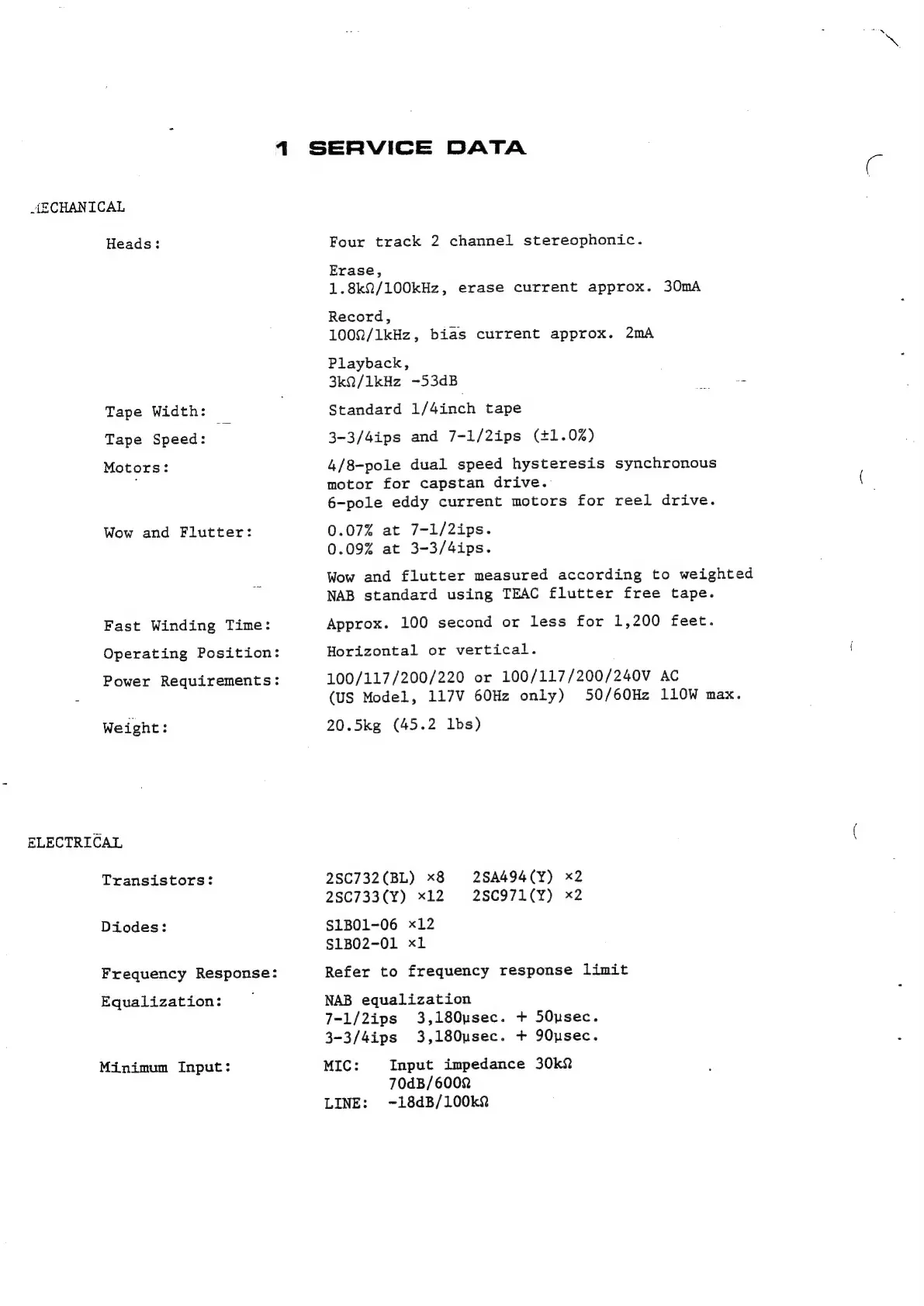

1 SERVICE DATA
Four
track
2
channel
stereophonic.
Erase,
1.8k2/100kHz, erase current approx. 30mA
Record,
100Q/1kHz,
bias
current
approx.
2mA
Playback,
3kQ/1kHz
-53dB
se
Standard 1/4inch tape
3-3/4ips and 7-1/2ips (+1.0%)
4/8-pole
dual
speed
hysteresis
synchronous
motor for capstan drive.
6-pole
eddy
current
motors
for
reel
drive.
0.07% at 7-1/2ips.
0.09% at 3-3/4ips.
Wow
and
flutter
measured
according
to
weighted
NAB
standard
using
TEAC
flutter
free
tape.
Approx.
100
second
or
less
for
1,200
feet.
Horizontal or vertical.
100/117/200/220
or
100/117/200/240V
AC
(US
Model,
117V
60Hz
only)
50/60Hz
110W
max.
20.5kg (45.2 lbs)
2SA494(Y) x2
2SC971(Y) x2
2SC732(BL) x8
28C733(Y¥) x12
$1B01-06 x12
$1B02-01 xl
Refer to frequency response limit
NAB equalization
7-1/2ips 3,180usec. + 50usec.
3-3/4ips 3,180usec. + 90ysec.
MIC: Input impedance 30k2
70dB/6002
LINE: ~18dB/100k2
