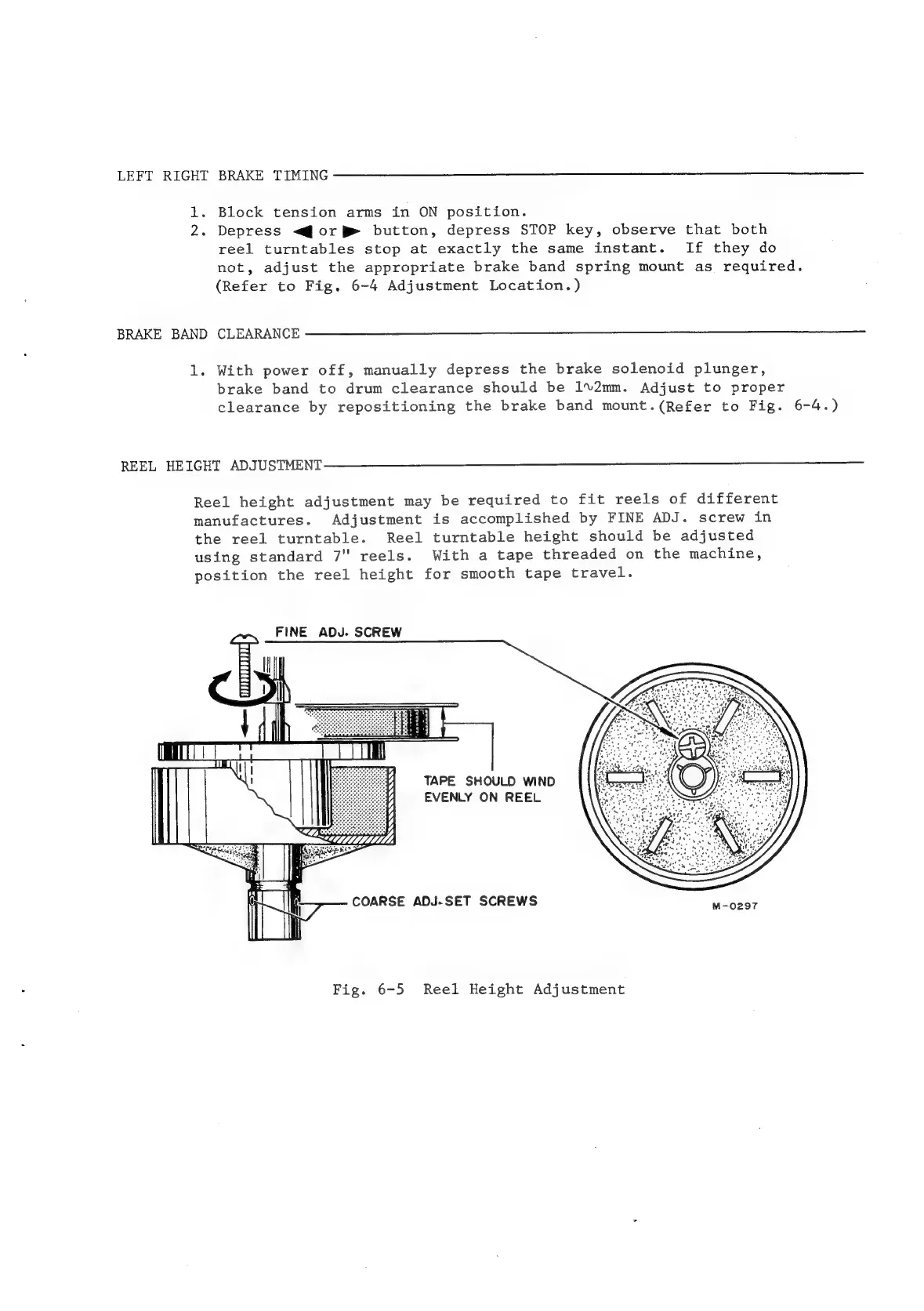

Teac A-4070G - Page 16

LEFT RIGHT BRAKE TIMING
1. Block tension arms in ON position.
2. Depress <@ orp button, depress STOP key, observe that both
reel turntables stop at exactly the same instant. If they do
not, adjust the appropriate brake band spring mount as required.
(Refer to Fig. 6-4 Adjustment Location.)
BRAKE BAND CLEARANCE
1. With power off, manually depress the brake solenoid plunger,
brake band to drum clearance should be 1%2mm. Adjust to proper
clearance by repositioning the brake band mount.(Refer to Fig. 6-4.)
REEL
HEIGHT
ADJUSTMENT
———_———@
———_
cm
uo
Reel
height
adjustment
may
be
required
to
fit
reels
of
different
manufactures.
Adjustment
is
accomplished
by
FINE
ADJ.
screw
in
the
reel
turntable.
Reel
turntable
height
should
be
adjusted
using
standard
7"
reels.
With
a
tape
threaded
on
the
machine,
position
the
reel
height
for
smooth
tape
travel.
FINE ADJ. SCREW
TAPE SHOULD WIND
EVENLY ON REEL
COARSE ADJ-SET SCREWS
Fig. 6-5 Reel Height Adjustment
