Teac A-4070G - Power Supply

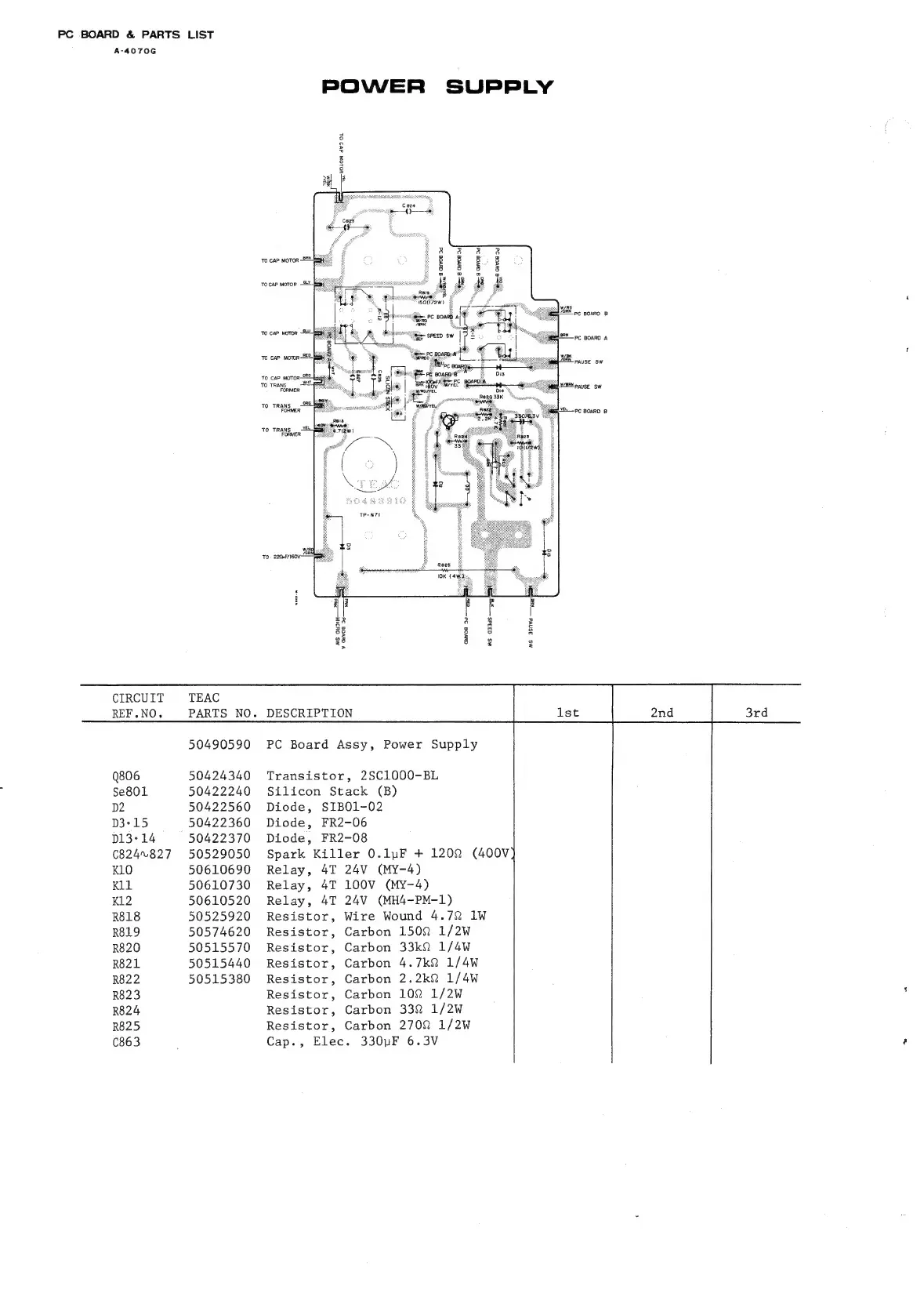

PC BOARD & PARTS LIST
A-4070G
CIRCUIT
REF.NO.
806
Se801
D2
D3°15
D13+14
C824V827
K10
K11
Kk12
R818
R819
R820
R821
R822
R823
R824
R825
C863
TEAC
PARTS NO.
50490590
50424340
50422240
50422560
50422360
50422370
50529050
50610690
50610730
50610520
50525920
50574620
50515570
50515440
50515380
POWER SUPPLY
To cap motor -2%
To cap Motor St
To cap moTor-BS
TO TRANS
FORMER
TO TRANS
FORMER
To TRANS YE
FORMER
MS 0334S —yag ti
2
é
g
a
®
2
3rd
DESCRIPTION
PC Board Assy, Power Supply
Transistor, 2SC1000-BL
Silicon Stack (B)
Diode, SIBO1-02
Diode, FR2-06
Diode, FR2-08
Spark Killer 0.1pF + 1202 (400V
Relay, 4T 24V (MY-4)
Relay, 4T 100V (My-4)
Relay, 4T 24V (MH4-PM-1)
Resistor, Wire Wound 4.72 1W
Resistor, Carbon 1502 1/2W
Resistor, Carbon 33k 1/4W
Resistor, Carbon 4.7kQ 1/4W
Resistor, Carbon 2.2kQ 1/4W
Resistor, Carbon 102 1/2W
Resistor, Carbon 332 1/2W
Resistor, Carbon 2702 1/2W
Cap., Elec. 330uF 6.3V
