Teac A-4070G - Bias Adjust

CIRCUIT
REF.NO.
J302a
J302b
K301
D1
L301
83
S4
$5
S6+7
R301
R302
R303
R304
R312
c301
C302
C303
C304
C310
C311
C312
C313
TEAC
PARTS NO.
50490610
50221510
50432730
50432730
50610860
50432720
50422220
50422340
50566300
50444330
50444340
50444130
50444330
50429140
CARBON RESISTORS
50516210
50516250
50516200
50526070
50516150
CAPACITORS
50554440
50554620
50554940
50554380
50554220
50548390
50548390
50548390
VC101%104 50547070
VC201%204 50547070

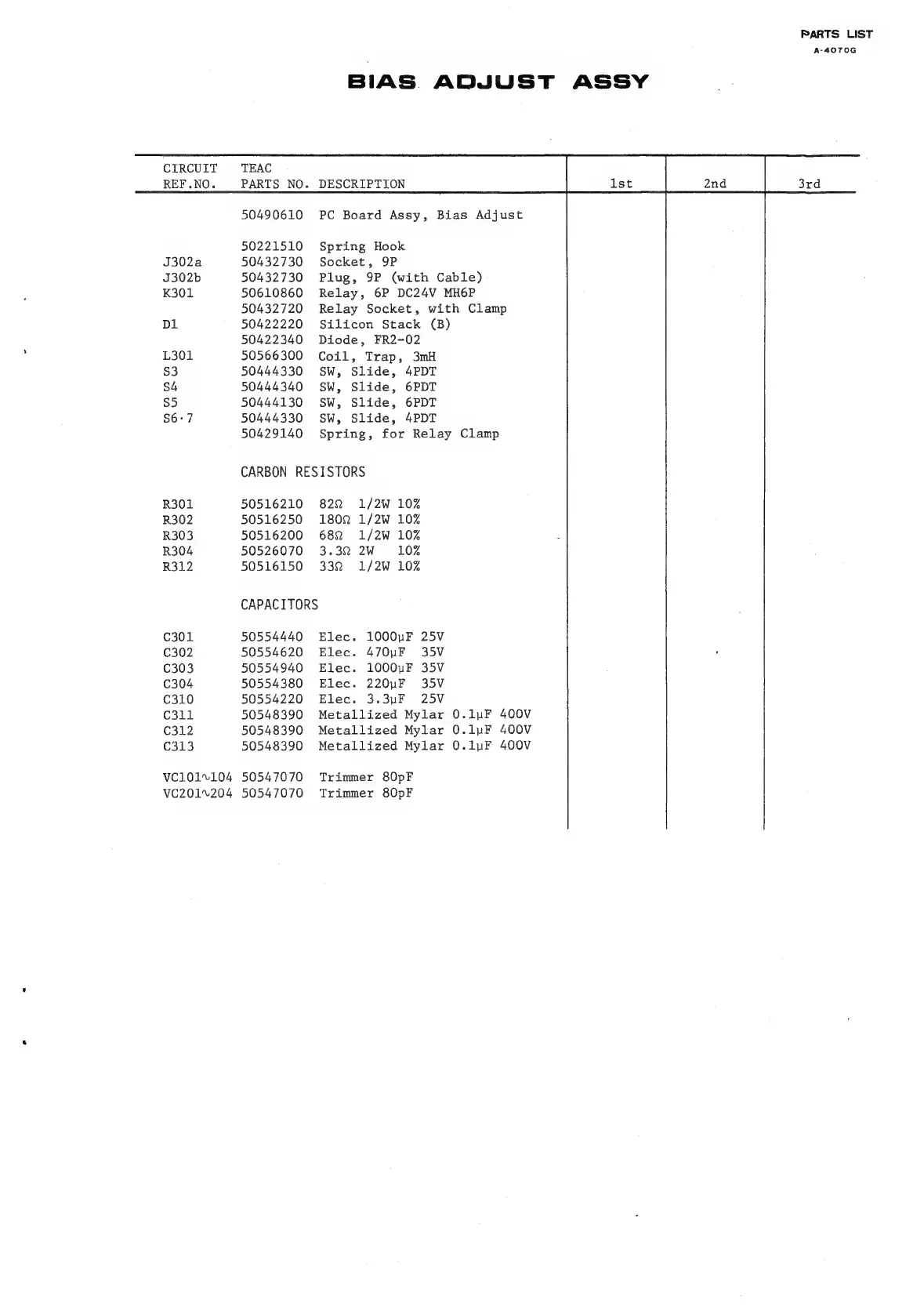

BIAS ADJUST ASSY
DESCRIPTION
PC Board Assy, Bias Adjust
Spring Hook
Socket, 9P
Plug, 9P (with Cable)
Relay, 6P DC24V MH6P
Relay Socket, with Clamp
Silicon Stack (B)
Diode, FR2-02
Coil, Trap, 3mH
SW, Slide, 4PDT
SW, Slide, 6PDT
SW, Slide, 6PDT
SW, Slide, 4PDT
Spring, for Relay Clamp
822 1/2W 10%
1802 1/2W 10%
682 1/2W 10%
3.32 2W 10%
332 1/2W 10%
Elec. 1000uF 25V
Elec. 470uF 35V
Elec. 1000uF 35V
Elec. 220uF 35V
Elec. 3.3uF 25V
Metallized Mylar 0.1uF 400V
Metallized Mylar 0.1uF 400V
Metallized Mylar 0.1uF 400V
Trimmer 80pF
Trimmer 80pF
PARTS LIST
A-4070G
