Teac A-4070G - Page 41

3-31
3-32
3~-33
3-34
3-35
3-36
3-37
3-38
TEAC
50114050
50236660
50522220
50522080
50283830
50235242
50561900
50125282
50112751
50489160
50490580
50125301
50125310
50235030
50489100
50482790
50444300
50553020
50545750
50482780
50241740
50234970
50264790
50412143
50411140
50452060
50432700
50454071
50432690
50271670
50253530
50253530
50443641
50482851
50444310
50444320
50235140
50490590
50236790
50221460
50412130
50411140
50419010
50125580
50125590
PARTS NO.

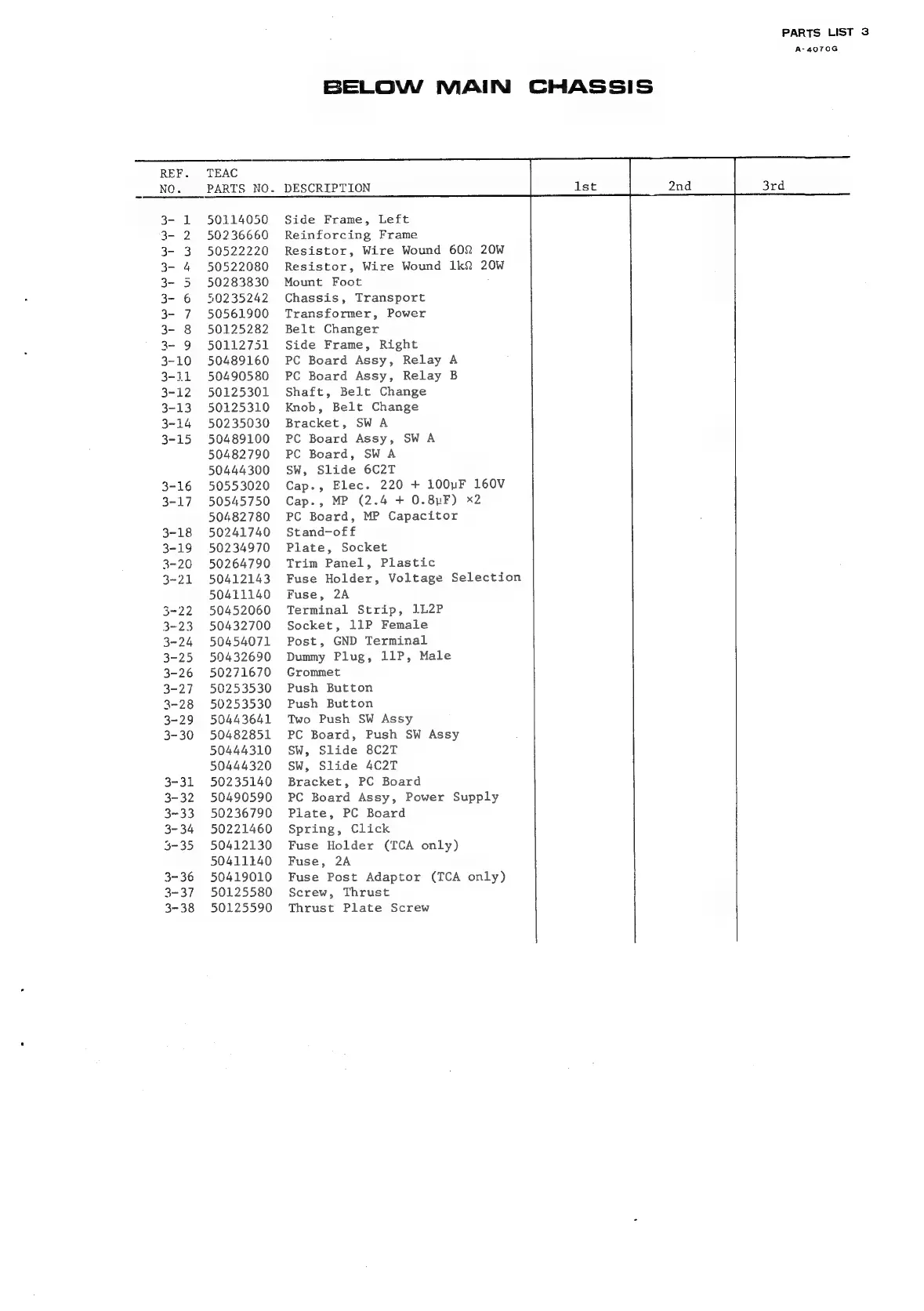

BELOW MAIN CHASSIS
DESCRIPTION
Side Frame, Left
Reinforcing Frame
Resistor, Wire Wound 602 20W
Resistor, Wire Wound 1kQ 20W
Mount Foot
Chassis, Transport
Transformer, Power
Belt Changer
Side Frame, Right
PC Board Assy, Relay A
PC Board Assy, Relay B
Shaft, Belt Change
Knob, Belt Change
Bracket, SW A
PC Board Assy, SWA
PC Board, SWA
SW, Slide 6C2T
Cap., Elec. 220 + 100uF 160V
Cap., MP (2.4 + 0.8pF) x2
PC Board, MP Capacitor
Stand-off
Plate, Socket
Trim Panel, Plastic
Fuse Holder, Voltage Selection
Fuse, 2A
Terminal Strip, 1L2P
Socket, 1IP Female
Post, GND Terminal
Dummy Plug, 11P, Male
Grommet
Push Button
Push Button
Two Push SW Assy
PC Board, Push SW Assy
SW, Slide 8C2T
SW, Slide 4C2T
Bracket, PC Board
PC Board Assy, Power Supply
Piate, PC Board
Spring, Click
Fuse Holder (TCA only)
Fuse, 2A
Fuse Post Adaptor (TCA only)
Screw, Thrust
Thrust Plate Screw
PARTS LIST 3
A-40706
