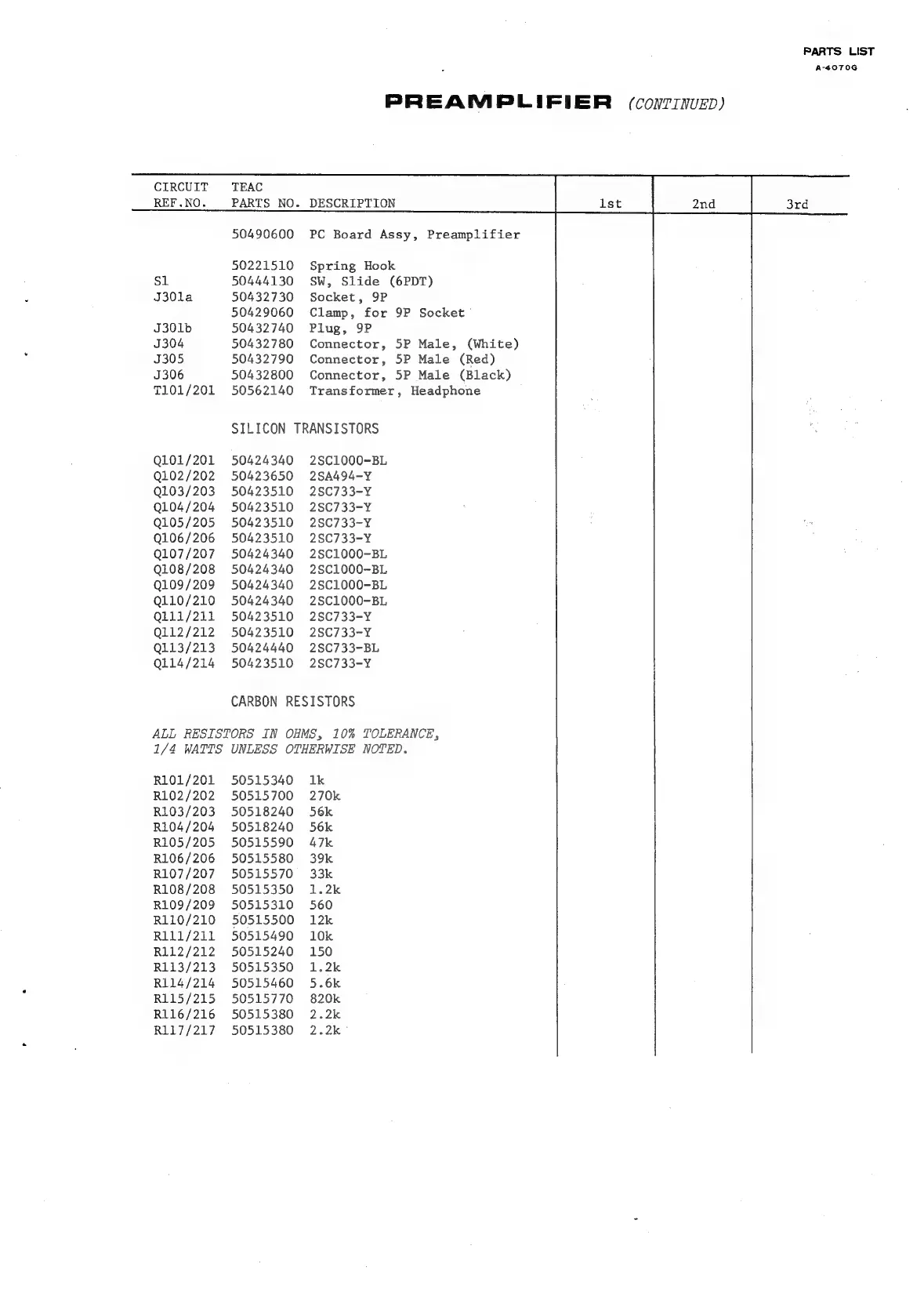

PARTS LIST
A-40706
PREAMPLIFIER (conTinuzep)
CIRCUIT
REF.NO.
TEAC
PARTS NO. DESCRIPTION
50490600 PC Board Assy, Preamplifier
50221510 Spring Hook
Sl 50444130 SW, Slide (6PDT)
J301la 50432730 Socket, 9P
50429060 Clamp, for 9P Socket
J301b 50432740 Plug, 9P
J304 50432780 Connector, 5P Male, (White)
J305 50432790 Connector, 5P Male (Red)
J306 50432800 Connector, 5P Male (Black)
T101/201 50562140 Transformer, Headphone
SILICON TRANSISTORS
Q101/201 50424340 2SC1000-BL
Q102/202 50423650 2SA494-Y
Q103/203 50423510 28C733-Y
Q104/204 50423510 28C733-¥
Q105/205 50423510 2SC733-Y
Q106/206 50423510 2SC733-Y
Q107/207 50424340 2SC1000-BL
Q108/208 50424340 2SC1000-BL
Q109/209 50424340 2SC1000-BL
Q110/210 50424340 2SC1000-BL
Ql11/211 50423510 2SC733-Y
Q112/212 50423510 28C733-Y
Q113/213 50424440 2SC733-BL
Ql14/214 50423510 2SC733-Y
CARBON RESISTORS
ALL RESISTORS IN OHMS, 10% TOLERANCE,
1/4 WATTS UNLESS OTHERWISE NOTED.
R101/201 50515340 1k
R102/202 50515700 270k
R103/203 50518240 56k
R104/204 50518240 56k
R105/205 50515590 47k
R106/206 50515580 39k
R107/207 50515570 33k
R108/208 50515350 1.2k
R109/209 50515310 560
R110/210 50515500 12k
R111/211 50515490 10k
R112/212 50515240 150
R113/213 50515350 1.2k
R114/214 50515460 5.6k
R115/215 50515770 820k
R116/216 50515380 2.2k
R117/217 50515380 2.2k°
