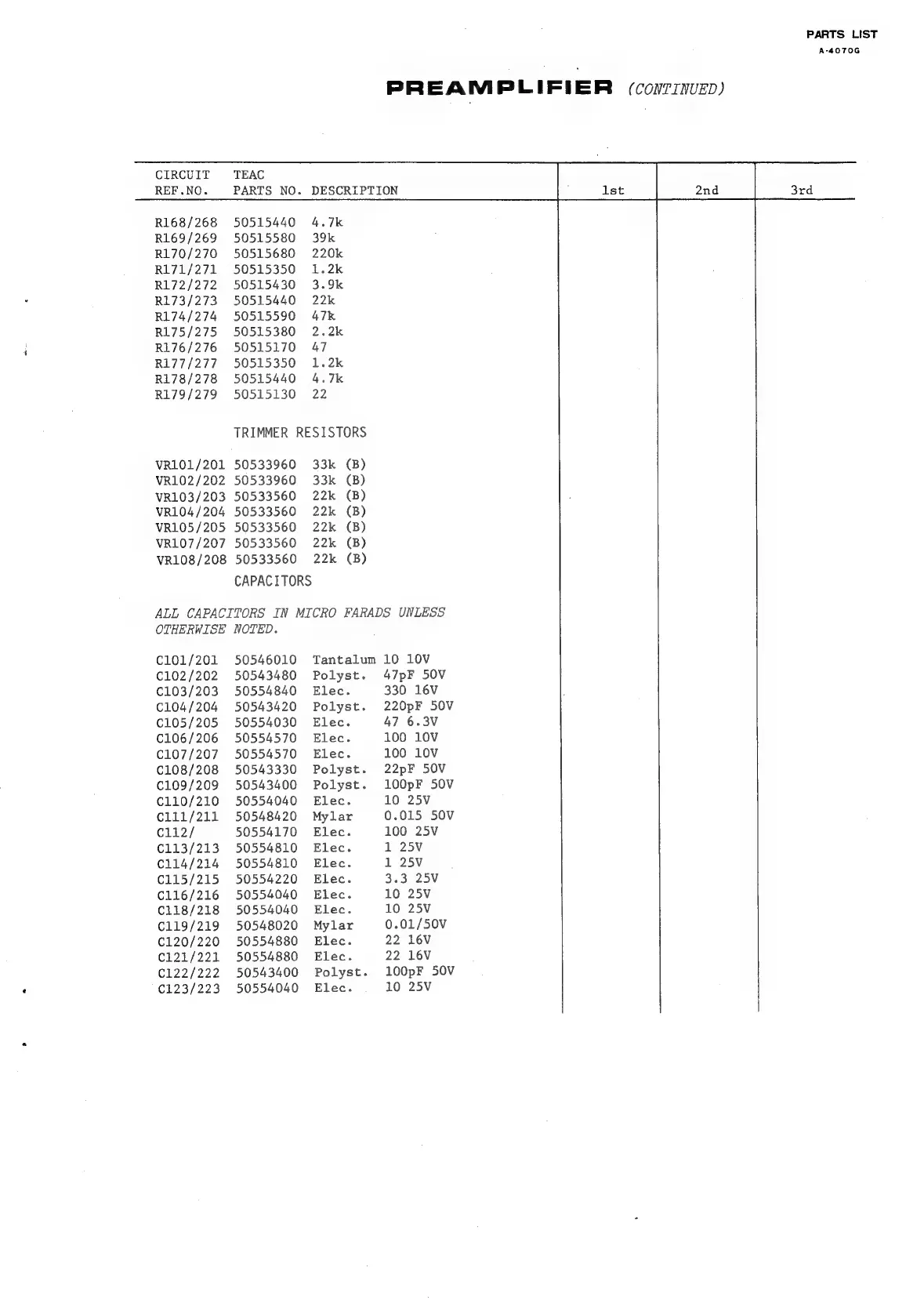

Teac A-4070G - Page 52

CIRCUIT
REF.NO.
R168/268
R1L69/269
R170/270
RL71/271
R172/272
R173/273
R174/274
RL75/275
R176/276
R177/277
R178/278
R179/279
VR1O1/201
VR102/202
VR103/203
VR104/204
VR105/205
VR107/207
VR108/208
ALL CAPACITORS IN MICRO FARADS UNLESS
TEAC
PARTS NO.
50515440 4.7k
50515580 39k
50515680 220k
50515350 1.2k
50515430 3.9k
50515440 22k
50515590 47k
50515380 2.2k
50515170 47
50515350 1.2k
50515440 4.7k
50515130 22
TRIMMER RESISTORS
50533960 33k (B)
50533960 33k (B)
50533560 22k (B)
50533560 22k (B)
50533560 22k (B)
50533560 22k (B)
50533560 22k (B)
CAPACITORS
OTHERWISE NOTED.
c101/201
C102/202
C103/203
C104/204
€105/205
C106/206
C107/207
C108/208
C109/209
C110/210
C111/211
C112/
C113/213
C114/214
C115/215
C116/216
C118/218
119/219
C120/220
C121/221
C122/222
C123/223
50546010 Tantalum 10 10V
50543480 Polyst.
50554840 Elec.
50543420 Polyst.
50554030 Elec.
50554570 Elec.
50554570 Elec.
50543330 Polyst.
50543400 Polyst.
50554040 Elec.
50548420 Mylar
50554170 Elec.
50554810 Elec.
50554810 Elec.
50554220 Elec.
50554040 Elec.
50554040 Elec.
50548020 Mylar
50554880 Elec.
50554880 Elec.
50543400 Polyst.
50554040 Elec.
DESCRIPTION
PR EAM PLIFIER (conrinveD)
47pF 50V
330 16V
220pF 50V
47 6.3V
100 10V
100 lov
22pF SOV
100pF 50V
10 25V
0.015 50V
100 25V
1 25V
1 25V
3.3 25V
10 25V
10 25V
0.01/50V
22 16V
22 16V
100pF 50V
10 25V
PARTS LIST
A-4070G
