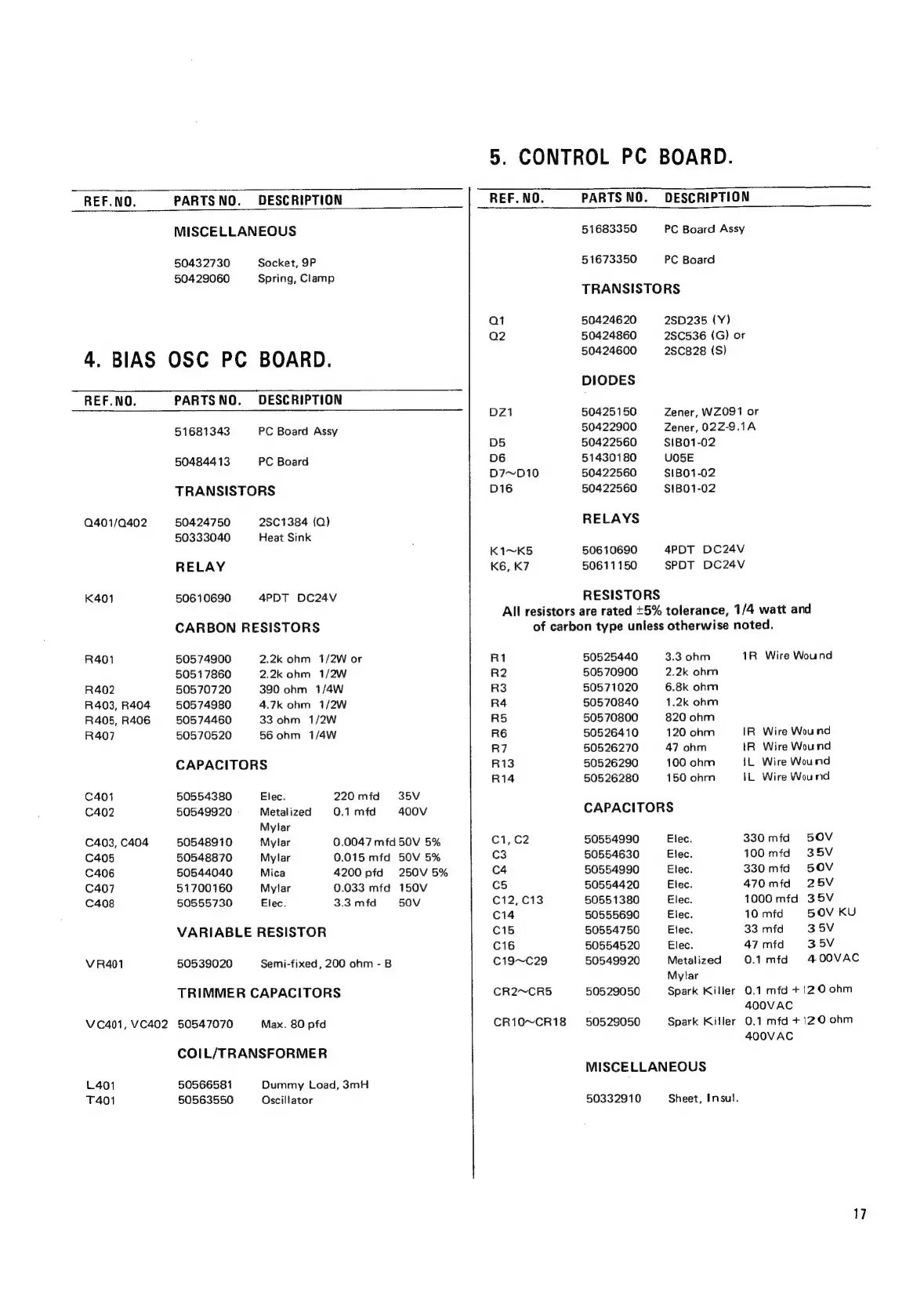

REF.NO.
PARTS NO. DESCRIPTION
5. CONTROL PC BOARD.
4. BIAS OSC PC
MISCELLANEOUS
50432730 Socket, 9P
50429060 Spring, Clamp
BOARD.
REF.NO. PARTSNO. DESCRIPTION
51681343 PC Board Assy
50484413 PC Board
TRANSISTORS
0401/0402 50424750 25C1384 (Q)
50333040 Heat Sink
RELAY
K401 50610690 4PDT DC24V
CARBON RESISTORS
R401 50574900 2.2k ohm 1/2W or
50517860 2.2k ohm 1/2W
R402 50570720 390 ohm 1/4W
R403, R404 50574980 4.7k ohm 1/2W
R405, R406 50574460 33 ohm 1/2W
R407 50570520 56 ohm 1/4W
CAPACITORS
C401 50554380 Elec. 220mfd 35V
C402 50549920 Metalized 0.1 mfd 400V
Mylar
C403, C404 50548910 Mylar 0.0047 mfd 50V 5%
C405 50548870 Mylar 0.015 mfd 50V 5%
C406 50544040 Mica 4200 pfd 250V 5%
C407 51700160 Mytar 0.033 mfd 150V
C408 50555730 Elec. 3.3 mfd 50V
VARIABLE RESISTOR
VR401 50539020 Semi-fixed, 200 ohm - B
TRIMMER CAPACITORS
REF.NO. PARTS NO. DESCRIPTION
51683350 PC Board Assy
51673350 PC Board
TRANSISTORS
Q1 50424620 2SD235 (Y)
Q2 50424860 2SC536 (G) or
50424600 280828 (S)
DIODES
DZ1 50425150 Zener, WZ091 or
50422900 Zener, 02Z-9.1A
D5 50422560 SIBO1-02
D6 51430180 UO5E
D7~D10 50422560 $1B01-02
D16 50422560 S!IBO1-02
RELAYS
K1~K5 50610690 4PDT DC24V
K6, K7 50611150 SPDT DC24V
RESISTORS
All resistors are rated +5% tolerance, 1/4 watt and
of carbon type unless otherwise noted.
R1 50525440 3.3 ohm 1R Wire Wound
R2 50570900 2.2k ohm
R3 50571020 6.8k ohm
R4 50570840 1.2k ohm
R5 50570800 820 ohm
R6 50526410 120 ohm IR Wire Wound
R7 50526270 47 ohm IR Wire Wound
R13 50526290 100 ohm {L Wire Wound
R14 50526280 150 ohm iL Wire Wound
CAPACITORS
C1, C2 50554990 Elec. 330mfd 50V
C3 50554630 Elec. 100 mfd 35V
C4 50554990 Elec. 330 mfd 5OV
cs 50554420 Elec. 470 mfd 25V
C12,C13 50551380 Elec. 1000 mid 35V
C14 50555690 Elec. 10 mfd 5O0V KU
C15 50554750 Elec. 33 mfd 35V
C16 50554520 Elec. 47 mtd 35V
Ci9~C29
50549920
Metalized
0.1mfd
400VAC
Mytar
CR2~CR5 50529050 Spark Killer 0.1 mfd + {20 ohm
400VAC
CR10~CR18 50528050 Spark Killer 0.1 mfd +120 ohm
400VAC
MISCELLANEOUS
Vc401, VC402 50547070 Max. 80 pfd
COIL/TRANSFORMER
L401 50566581 Dummy Load, 3mH
T401 50563550 Oscillator
50332910
Sheet, Insul.
17
