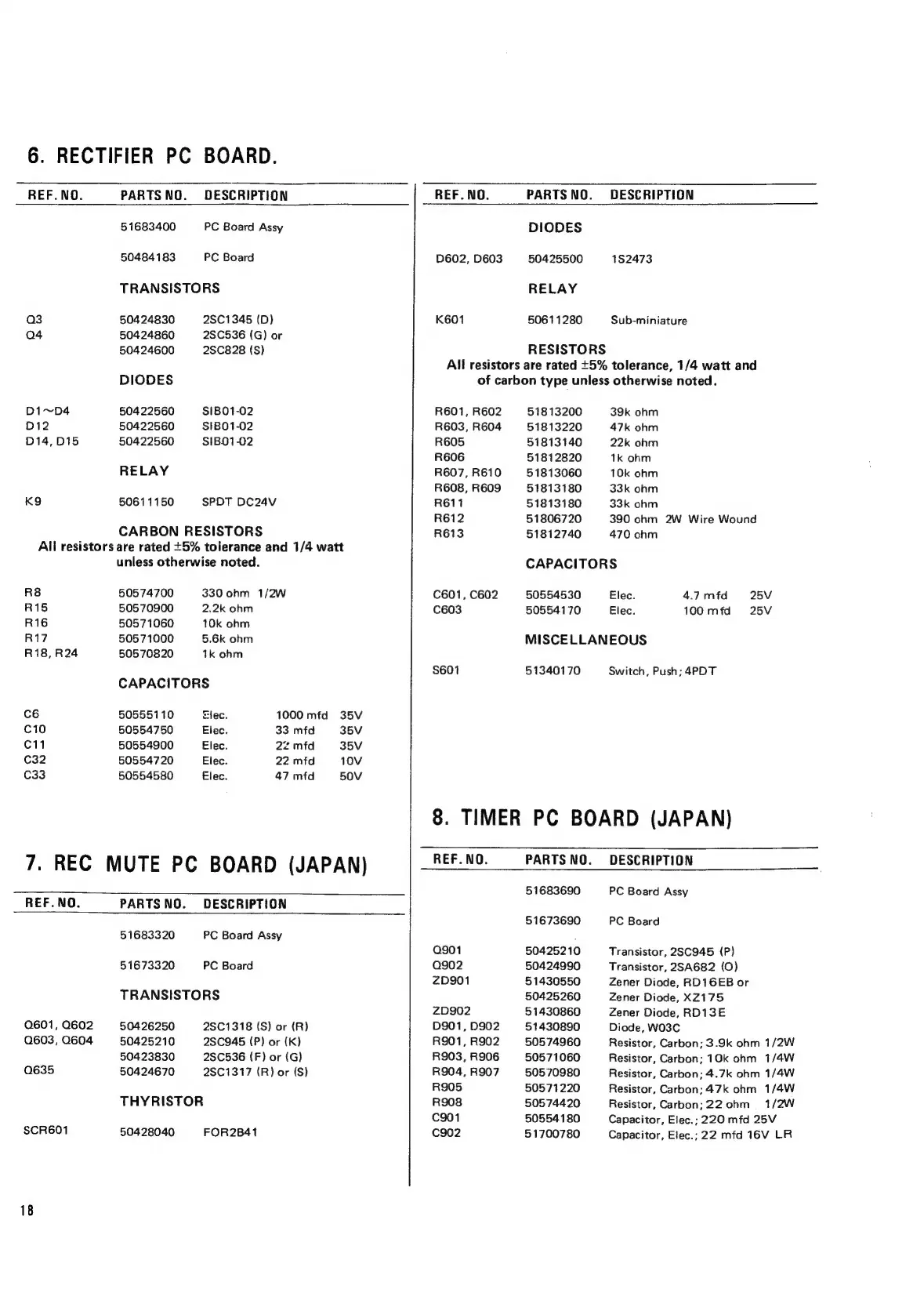

Teac A-4300SX - Page 45

6. RECTIFIER PC BOARD.
REF.NO. PARTSNO. DESCRIPTION
DIODES
D602,D603 50425500 182473
RELAY
K601 50611280 = Sub-miniature
RESISTORS
All resistors are rated +5% tolerance, 1/4 watt and
of carbon type unless otherwise noted.
REF.NO. PARTS NO. DESCRIPTION
51683400 PC Board Assy
50484183 PC Board
TRANSISTORS
Q3 50424830 28C1345 (D)
a4 50424860 2SC536 (G) or
50424600 2SC828 (S)
DIODES
D1~D4 50422560 $iBO1-02
D12 50422560 SIBO1-02
D014, D15 50422560 SIBO1-02
RELAY
K9 50611150 SPOT DC24V
CARBON RESISTORS
All resistors are rated +5% toierance and 1/4 watt
unless otherwise noted.
R8 50574700 330 ohm 1/2W
R15 50570900 2.2k ohm
R16 50571060 10k ohm
R17 50571000 5.6k ohm
R18,R24 50570820 1k ohm
CAPACITORS
C6 50555110 Elec. 1000 mfd 35V
C10 50554750 Elec. 33 mfd 35V
C11 50554900 Elec. 22 mfd 35V
C32 50554720 Elec. 22 mfd 10V
C33 50554580 Elec. 47 mfd 50V
7. REC MUTE PC BOARD (JAPAN)
R601, R602 51813200 39k ohm
R603, R604 51813220 47k ohm
R605 51813140 22k ohm
R606 51812820 1k ohm
R607, R610 51813060 10k ohm
R608, R609 51813180 33k ohm
R611 51813180 33k ohm
R612 51806720 330 ohm 2W Wire Wound
R613 51812740 470 ohm
CAPACITORS
C601, C602 50554530 Elec. 4.7 mfd 25V
C603 50554170 Elec. 100 mfd = 25V
MISCELLANEOUS
$601 51340170 Switch, Push; 4PDT
8. TIMER PC BOARD (JAPAN)
REF.NO. PARTS NO. DESCRIPTION
51683320 PC Board Assy
51673320 PC Board
TRANSISTORS
Q601, O602 50426250 2SC1318 (S) or (R)
Q603, Q604 50425210 2SC945 (P) or (K)
50423830 28C536 (F) or (G)
O635 50424670 28C1317 (R) or (S)
THYRISTOR
SCR601 50428040 FOR2B41
18
REF.NO. PARTS NO. DESCRIPTION
51683690 PC Board Assy
51673690 PC Board
0901 50425210 Transistor, 2SC945 (P)
Qg902 50424990 Transistor, 2SA682 (O)
ZD901 51430550 Zener Diode, RD16EB or
50425260 Zener Diode, XZ175
ZD902 51430860 Zener Diode, RD13E
D901, D902 51430890 Diode, WO3C
R901, R902 50574960 Resistor, Carbon; 3.9k ohm 1/2W
R903, R906 50571060 Resistor, Carbon; 10k ohm 1/4W
R904, R907 50570980 Resistor, Carbon; 4.7k ohm 1/4W
R905 50571220 Resistor, Carbon; 47k ohm 1/4W
R908 50574420 Resistor, Carbon; 22 ohm = 1/2W
c901 50554180 Capacitor, Elec.; 220 mfd 25V
c902 51700780 Capacitor, Elec.; 22 mfd 16V LR
