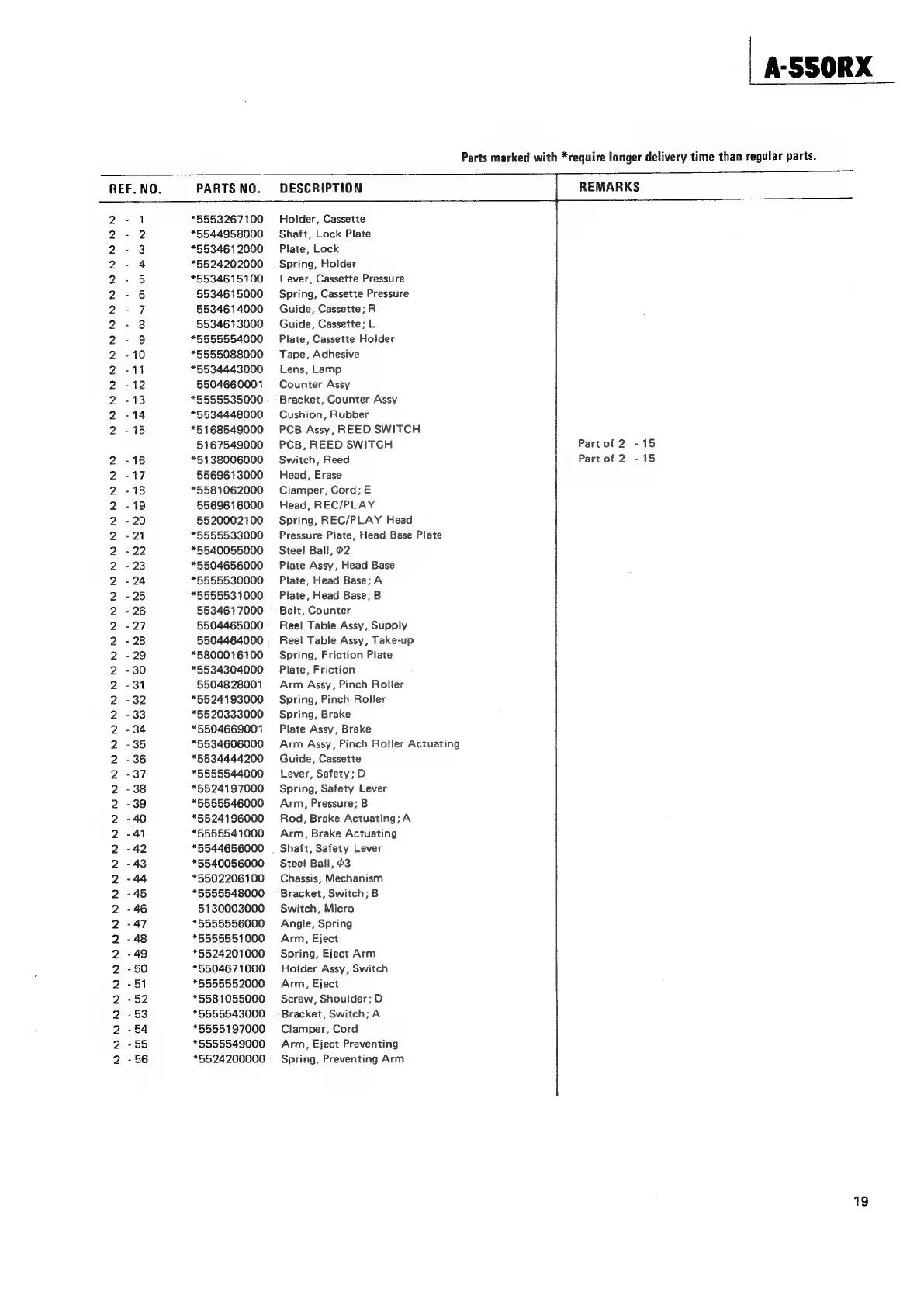

REF. NO. PARTS NO. DESCRIPTION
2-1 *5553267100 Holder, Cassette
2-2 *5544958000 Shaft, Lock Plate
2 - 3 *5534612000 Plate, Lock
2-4 *5524202000 = Spring, Holder
2-5 *5534615100 Lever, Cassette Pressure
2-6 5534615000 Spring, Cassette Pressure
2-7 5534614000 Guide, Cassette; R
2-8 5534613000 Guide, Cassette; L
2-9 *5555554000 ‘Plate, Cassette Holder
2 -10 *5555088000 Tape, Adhesive
2-11 *5534443000 Lens, Lamp
2 -12 5504660001 Counter Assy
2 -13 *5555535000 _ = Bracket, Counter Assy
2 -14 *5534448000 Cushion, Rubber
2 -15 *5168549000 PCB Assy, REED SWITCH
5167549000 PCB, REED SWITCH
2 -16 *5138006000 Switch, Reed
2-17 5569613000 Head, Erase
2 -18 *5581062000 Clamper, Cord; &
2 -19 5569616000 Head, REC/PLAY
2 -20 5520002100 Spring, REC/PLAY Head
2 -21 *5555533000 Pressure Plate, Head Base Plate
2 -22 *5540055000 = Stee! Ball, #2
2 -23 *5504656000 Plate Assy, Head Base
2 -24 *5555530000 Plate, Head Base; A
2 -25 *5555531000 Plate, Head Base; B
2 -26 5534617000 _— Belt, Counter
2 -27 5504465000 _ =—Reel Tabie Assy, Supply
2 -28 5504464000 _ ‘Reel Table Assy, Take-up
2 -29 *5800016100 Spring, Friction Plate
2 -30 *5534304000 ‘Plate, Friction
2 -31 5504828001 Arm Assy, Pinch Roller
2 -32 *5524193000 Spring, Pinch Roller
2 -33 *5520333000 Spring, Brake
2 -34 *5504669001 Plate Assy, Brake
2 -35 *5534606000 Arm Assy, Pinch Roller Actuating
2 -36 *5534444200 Guide, Cassette
2 -37 *6555544000 Lever, Safety; D
2 -38 *5524197000 Spring, Safety Lever
2 -39 *5555546000 Arm, Pressure; B
2 -40 *5524196000 Rod, Brake Actuating; A
2 -41 *5555541000 Arm, Brake Actuating
2 -42 *5544656000 = Shaft, Safety Lever
2 -43 *5540056000 = Steel Ball, 3
2 -44 *5502206100 Chassis, Mechanism
2 -45 *5555548000 =‘ Bracket, Switch; B
2 -46 5130003000 Switch, Micro
2 -47 *5555556000_ = Angle, Spring
2 -48 *5555551000 Arm, Eject
2 -49 *5524201000 Spring, Eject Arm
2 -50 *5504671000 Hoider Assy, Switch
2-51 *5555552000 Arm, Eject
2 -52 *5581055000 Screw, Shoulder; D
2 -53 *5555543000_ =— Bracket, Switch; A
2 -54 *5555197000 Clamper, Cord
2 -55 *5555549000 Arm, Eject Preventing
2 -56 *5524200000 = Spring, Preventing Arm
A-SSORX
Parts marked with *require longer delivery time than regular parts.
REMARKS
Part of 2
Part of 2
- 15
- 15
19
