| A-SSORX

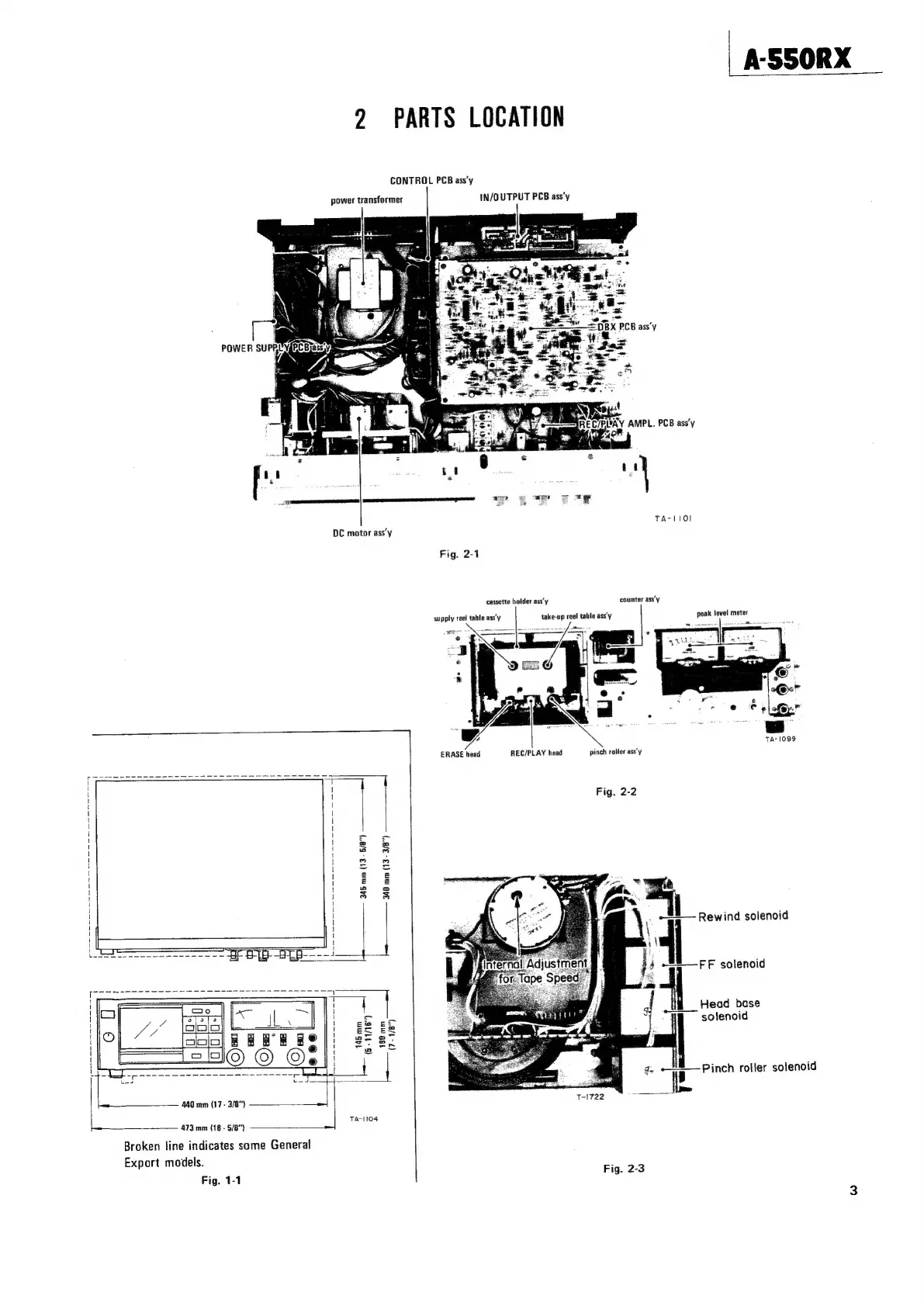

2 PARTS LOCATION
CONTROL PCB ass'y
power
transformer
IN/OUTPUT
PCB
ass’y
TA-1101
DC motor ass’y
Fig. 2-1
cassette holder ass’y counter ass'y
supply
reel
table
ass’y
take-up
reel
table
ass'y
TA-1099
ERASE
head
REC/PLAY
head
pinch
roller
ass'y
|
Fig.
2-2
345 mm (13 - 5/8”)
340 mm (13 - 3/8") ————
Rewind solenoid
FF solenoid
Head base
solenoid
:
(5 - 11/16"
Pinch
roller
solenoid
440 mm (17 - 3/8"}
473 mm (18 - 5/8") TA-1104
Broken line indicates some General
Export models.
Fig. 2-3
Fig. 1-1
