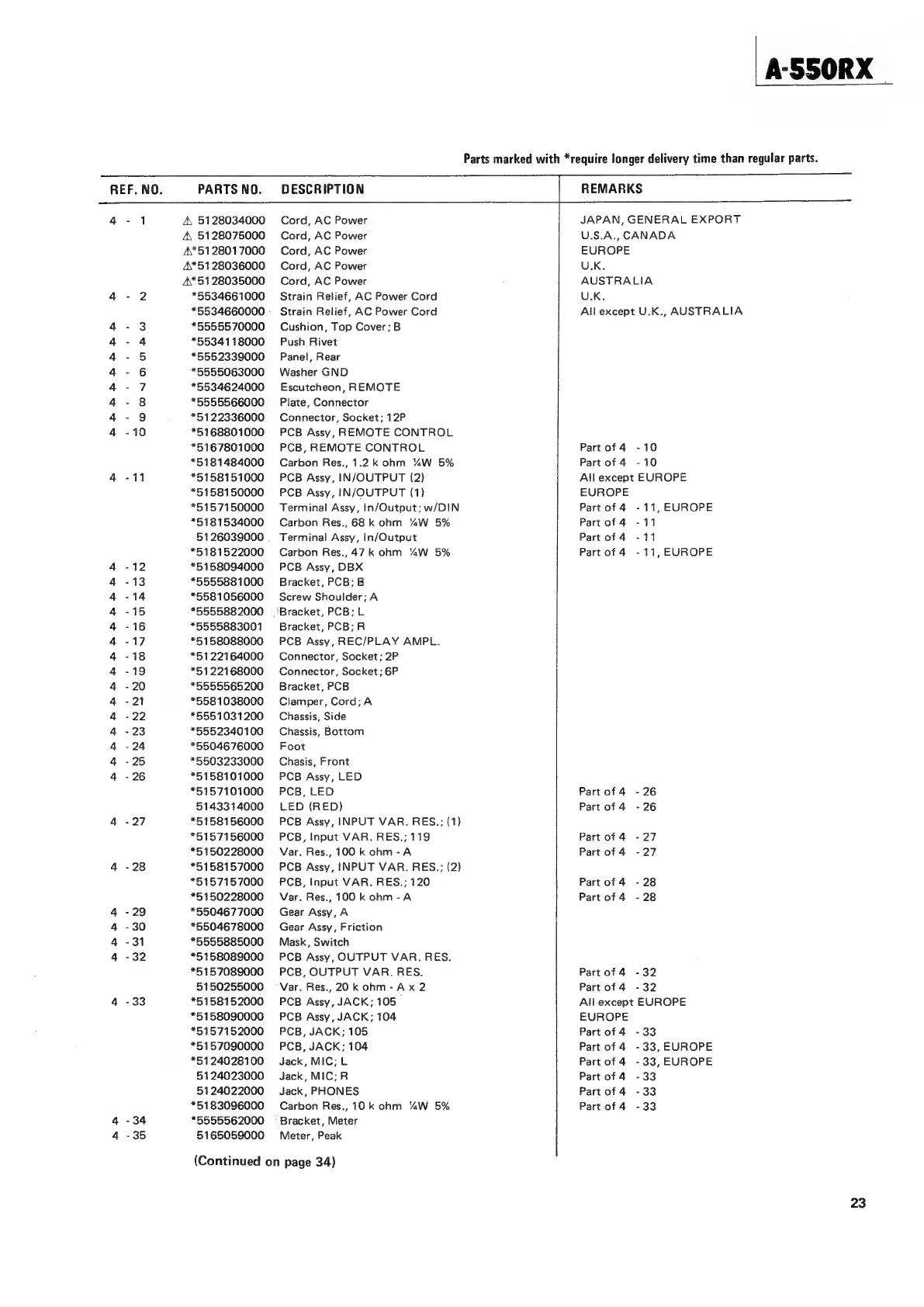

A-SSORX
Parts marked with *require longer delivery time than regular parts.
REF. NO. PARTS NO. DESCRIPTION REMARKS
4-1 4, 5128034000 Cord, AC Power JAPAN, GENERAL EXPORT
4, 5128075000 Cord, AC Power U.S.A., CANADA
4*5128017000 Cord, AC Power EUROPE
4*5128036000 Cord, AC Power ULK.
4*5128035000 Cord, AC Power AUSTRALIA
- 2 *5534661000 Strain Relief, AC Power Cord U.K.
*5534660000 = Strain Relief, AC Power Cord All except U.K., AUSTRALIA
4 - 3 *5555570000 Cushion, Top Cover; B
4-4 *5534118000 Push Rivet
4-5 *5552339000 Panel, Rear
4-6 *5555063000 Washer GND
4-7 *5534624000 Escutcheon, REMOTE
4-8 *5555566000 _ Plate, Connector
4-9 *5122336000 Connector, Socket; 12P
4 -10 *5168801000 PCB Assy, REMOTE CONTROL
*5167801000 PCB, REMOTE CONTROL Partof 4 -10
*5181484000 Carbon Res.,1.2k ohm “W 5% Partof4 -10
4 -11 *5158151000 PCB Assy, IN/OUTPUT (2) All except EUROPE
*5158150000 PCB Assy, IN/OUTPUT (1) EUROPE
*5157150000 Terminal Assy, In/Output; w/DIN Partof4 -11, EUROPE
*5181534000 Carbon Res.,68k ohm “%W 5% Partof4 -11
5126039000 _ Terminal Assy, In/Output Part of 4 -11
*5181522000 Carbon Res.,47k ohm “W 5% Partof4 -11, EUROPE
4 -12 *5158094000 PCB Assy, DBX
4 -13 *5555881000 Bracket, PCB; B
4 -14 *5581056000 Screw Shoulder; A
4 -15 *5555882000_ =i Bracket, PCB; L
4 -16 *5555883001 Bracket, PCB; R
4 -17 *5158088000 PCB Assy, REC/PLAY AMPL.
4 -18 *5122164000 Connector, Socket; 2P
4 -19 *5122168000 Connector, Socket; 6P
4 -20 *5555565200 = Bracket, PCB
4 -21 *5581038000 Clamper, Cord;A
4 -22 *5551031200 Chassis, Side
4 -23 *5552340100 Chassis, Bottom
4 -24 *5504676000 Foot
4 -25 *5503233000 Chasis, Front
4 -26 *5158101000 PCB Assy, LED
*5157101000 PCB, LED Partof4 -26
5143314000 LED (RED) Part of 4 -26
4 -27 *5158156000 PCB Assy, INPUT VAR. RES.; (1)
*5157156000 PCB, Input VAR. RES.; 119 Part of 4 -27
*5150228000_ Var. Res., 100 k ohm-A Part of 4 -27
4 -28 *5158157000 PCB Assy, INPUT VAR. RES.; (2)
*5157157000 PCB, Input VAR. RES.; 120 Part of 4 - 28
*5150228000 Var. Res., 100 k ohm-A Part of 4 -28
4 -29 *5504677000 Gear Assy, A
4 -30 *5504678000 Gear Assy, Friction
4 -31 *5555885000 Mask, Switch
4 -32 *5158089000 PCB Assy, OUTPUT VAR. RES.
*5157089000 PCB, OUTPUT VAR. RES. Partof4 -32
5150255000 sé Var. Res., 20 k ohm - Ax 2 Partof4 -32
4 -33 *5158152000 PCB Assy, JACK; 105 All except EUROPE
*5158090000 PCB Assy, JACK; 104 EUROPE
*5157152000 PCB, JACK; 105 Part of 4 -33
*5157090000 PCB, JACK; 104 Part of 4 -33, EUROPE
*5124028100 Jack, MIC; L Partof4 -33, EUROPE
5124023000 Jack, MIC;R Part of 4 - 33
5124022000 Jack, PHONES Part of 4 -33
*5183096000 Carbon Res.,10k ohm “%W 5% Part of 4 -33
4 -34 *5555562000_ ~=— Bracket, Meter
4 -35 5165059000 Meter, Peak
(Continued on page 34)
23
