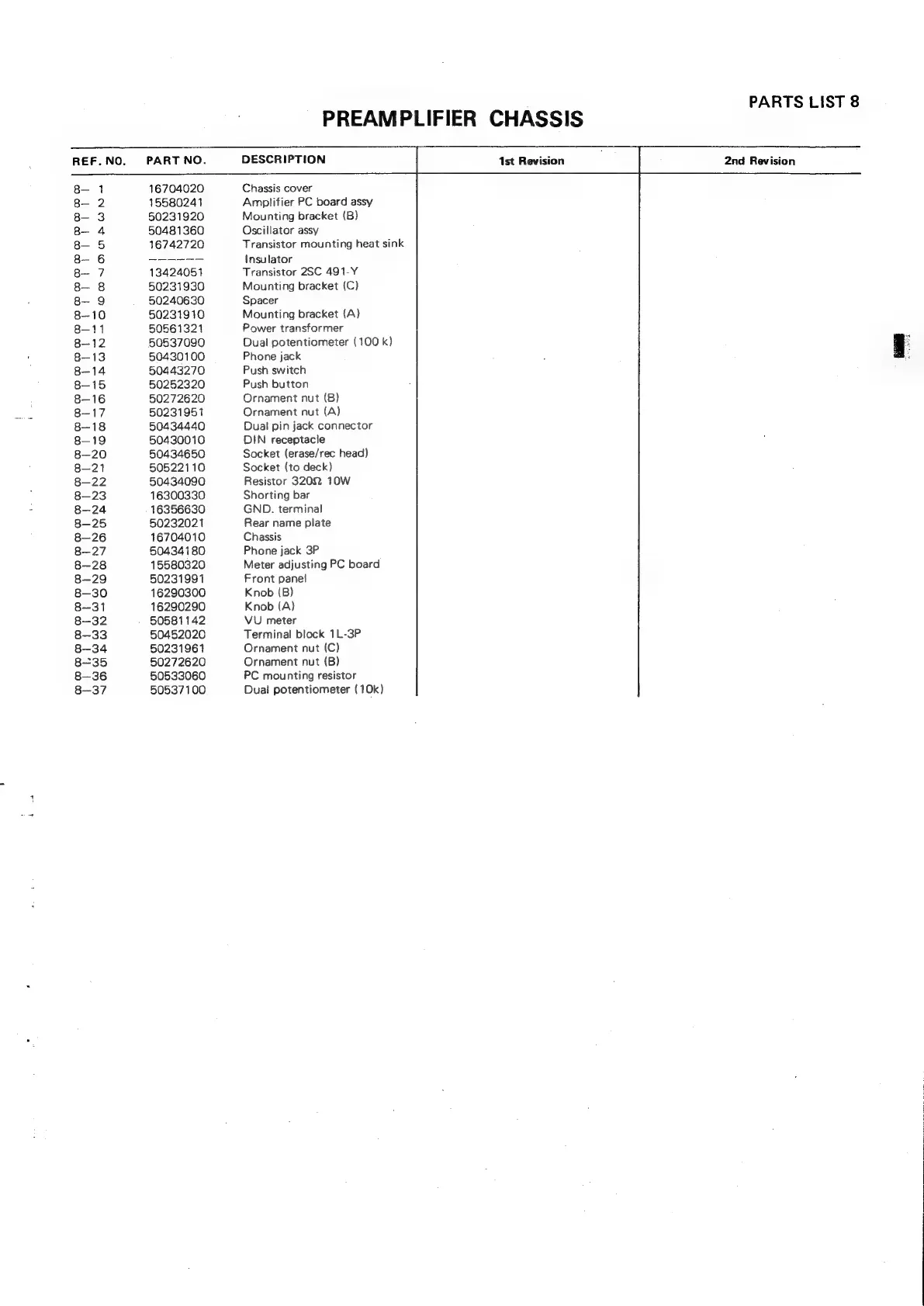

Teac A-7010 - Preamplifier Chassis Parts List

8-31
8-33
8-34
8-35
8—36
8-37
PART NO.
16704020
15580241
50231920
50481360
16742720
13424051
50231930
50240630
50231910
50561321
50537090
50430100
50443270
50252320
50272620
50231951
50434440
50430010
50434650
50522110
50434090
16300330
16356630
50232021
16704010
50434180
15580320
50231991
16290300
16290290
50581142
50452020
50231961
50272620
50533060
50537100
PREAMPLIFIER CHASSIS
DESCRIPTION
Chassis cover
Amplifier PC board assy
Mounting bracket (B)
Oscillator assy
Transistor mounting heat sink
Insulator
Transistor 2SC 491-Y
Mounting bracket (C)
Spacer
Mounting bracket (A)
Power transformer
Dual potentiometer (100 k)
Phone jack
Push switch
Push button
Ornament nut (B)
Ornament nut (A)
Dual pin jack connector
DIN receptacle
Socket (erase/rec head)
Socket (to deck)
Resistor 3209 10W
Shorting bar
GND. terminal
Rear name plate
Chassis
Phone jack 3P
Meter adjusting PC board
Front pane
Knob (B)
Knob (A)
VU meter
Terminal block 1L-3P
Ornament nut (C)
Ornament nut (8)
PC mounting resistor
Dual potentiometer (10k)
PARTS LIST 8
2nd Revision
