Teac A-7010 - Capstan Assembly; Capstan Assembly Parts List

we eemuatiaamneaaetineienemnnaaae
dine

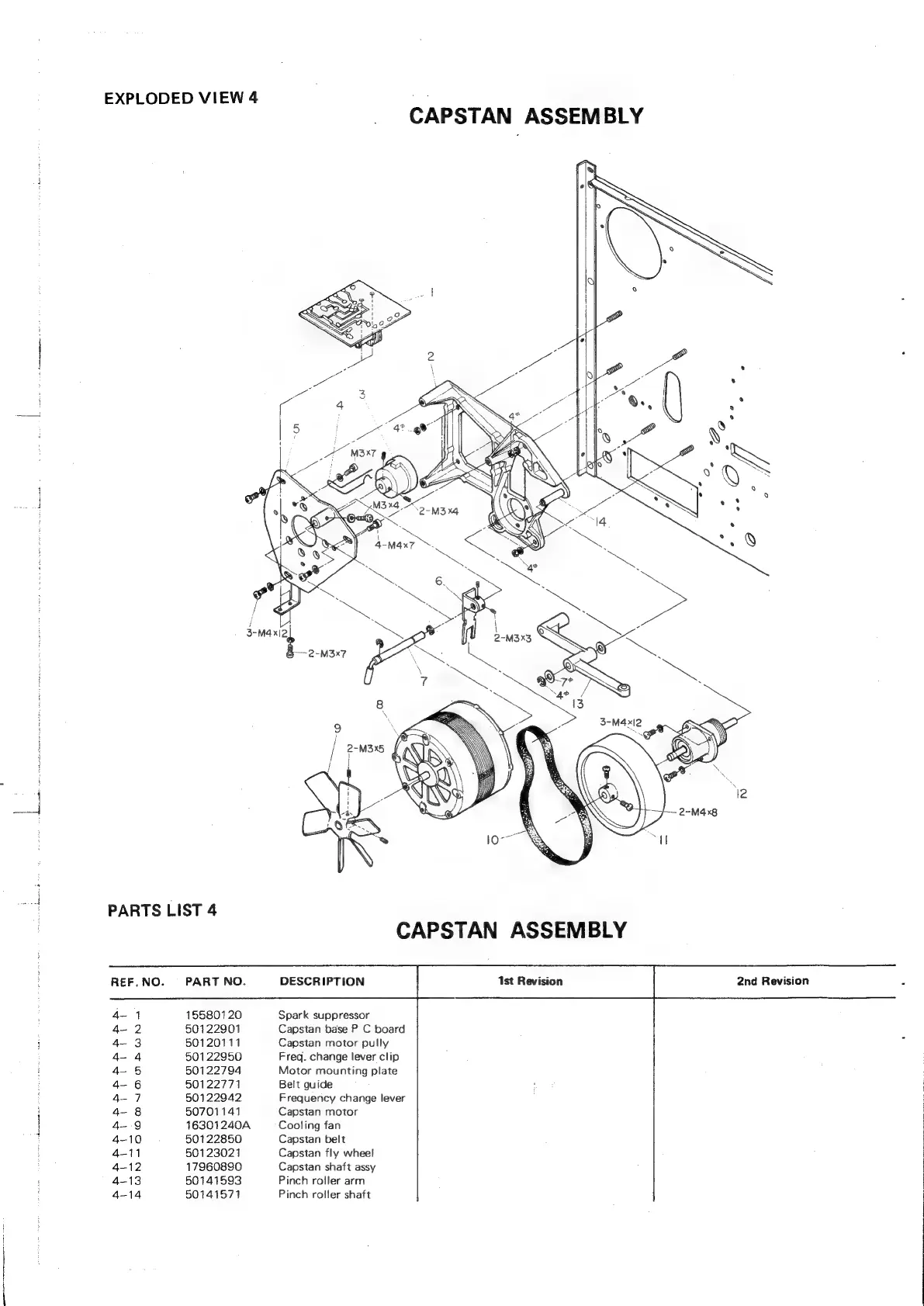

EXPLODED VIEW 4
PARTS LIST 4
REF. NO.
4-
4-
4-
A-
4-
4-
4-
4-
4-
QOOOnODOAARWN any
i
4-11
4-12
4-13
4-14
PART NO.
155801 20
50122901
50120111
50122950
50122794
50122771
50122942
50701141
16301240A
50122850
50123021
17960890
50141593
50141571
CAPSTAN ASSEMBLY
CAPSTAN ASSEMBLY
DESCRIPTION 1st Revision 2nd Revision
Spark suppressor
Capstan base P C board
Capstan motor pully
Freq. change lever clip
Motor mounting plate
Belt guide
Frequency change lever
Capstan motor
Cooling fan
Capstan belt
Capstan fly wheel
Capstan shaft assy
Pinch roller arm
Pinch roller shaft
