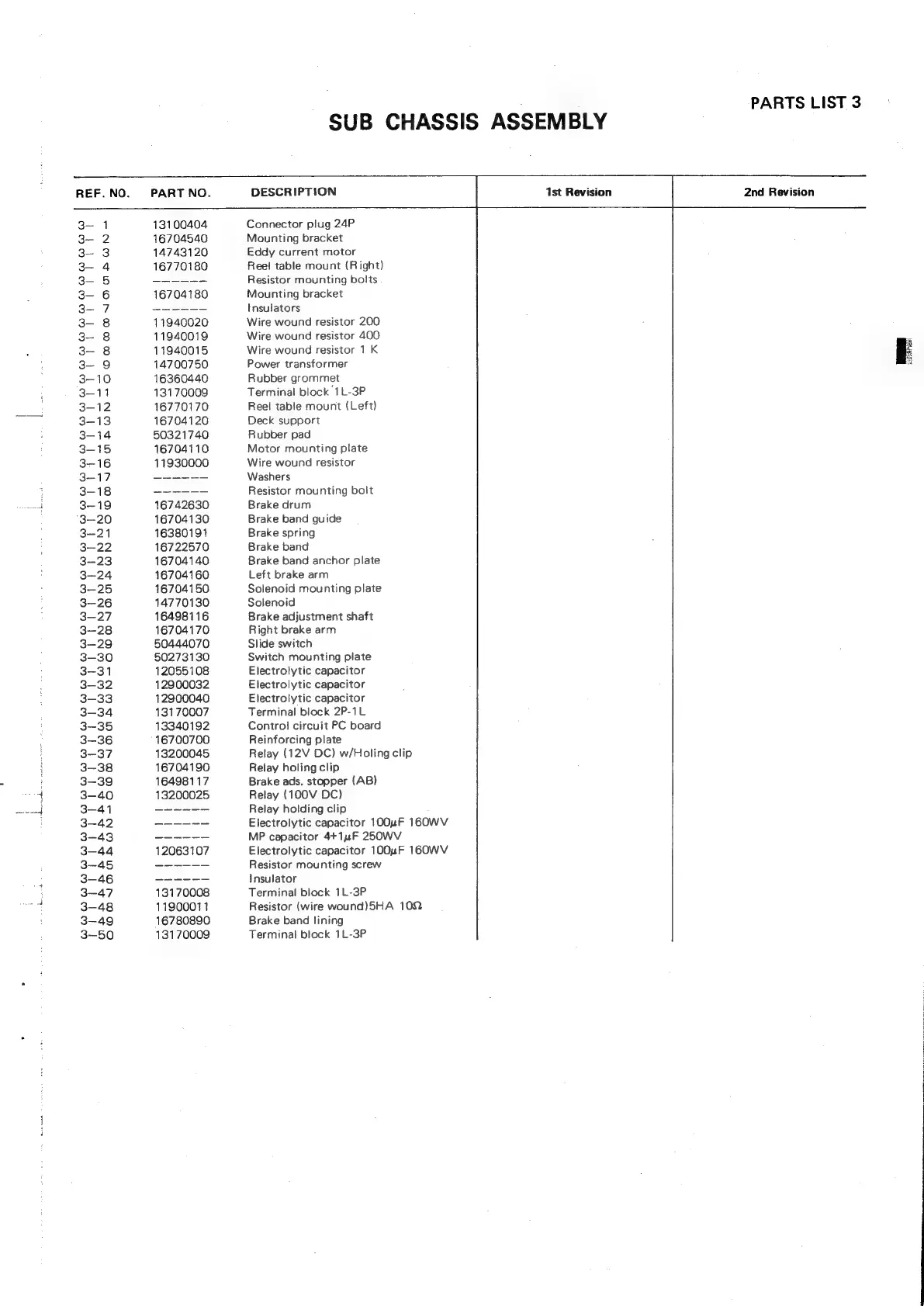

SUB CHASSIS ASSEMBLY
REF. NO. PART NO. DESCRIPTION 1st Revision
3- 1 13100404 Connector plug 24P
3- 2 16704540 Mounting bracket
3- 3 14743120 Eddy current motor
3- 4 16770180 Reel table mount (Right)
3—- 5 -—----- Resistor mounting bolts
3- 6 16704180 Mounting bracket
B8—- Fo Insulators
3- 8 11940020 Wire wound resistor 200
3- 8 11940019 Wire wound resistor 400
3- 8 11940015 Wire wound resistor 1 K
3- 9 14700750 Power transformer
3-10 16360440 Rubber grommet
3-11 13170009 Terminal block '1L-3P
3-12 16770170 Reel table mount (Left)
3-13 16704120 Deck support
3-14 50321740 Rubber pad
3-15 16704110 Motor mounting plate
3-16 11930000 Wire wound resistor
3-17 9-H Washers
3-18 9 =---—--— Resistor mounting bolt
3-19 16742630 Brake drum
3-20 16704130 Brake band guide
3-21 16380191 Brake spring
3-22 16722570 Brake band
3-23 16704140 Brake band anchor plate
3—24 16704160 Left brake arm
3-25 16704150 Solenoid mounting plate
3-26 14770130 Solenoid
3-27 16498116 Brake adjustment shaft
3—-28 16704170 Right brake arm
3-29 50444070 Slide switch
3-30 50273130 Switch mounting plate
3-31 12055108 Electrolytic capacitor
3-32 12900032 Electrolytic capacitor
3-33 12900040 Electrolytic capacitor
3-34 13170007 Terminal block 2P-1L
3-35 13340192 Control circuit PC board
3-36 16700700 Reinforcing plate
3-37 13200045 Relay (12V DC) w/Holing clip
3-38 16704190 Relay holing clip
3-39 16498117 Brake ads. stopper (AB)
3-40 13200025 Relay (100V DC)
3-410 9 -=---—- Relay holding clip
38-42 £-—----- Electrolytic capacitor 100uF 160WV
3-43 —------ MP capacitor 4+1yF 250WV
3-44 12063107 Electrolytic capacitor 100uF 160WV
3-45 —------— Resistor mounting screw
3-46 ------ Insulator
3-47 13170008 Terminal block 1L-3P
3-48 11900011 Resistor (wire wound)5HA 102
3-49 16780890 Brake band lining
3—50 13170009 Terminal block 1L-3P
PARTS LIST 3
2nd Revision
