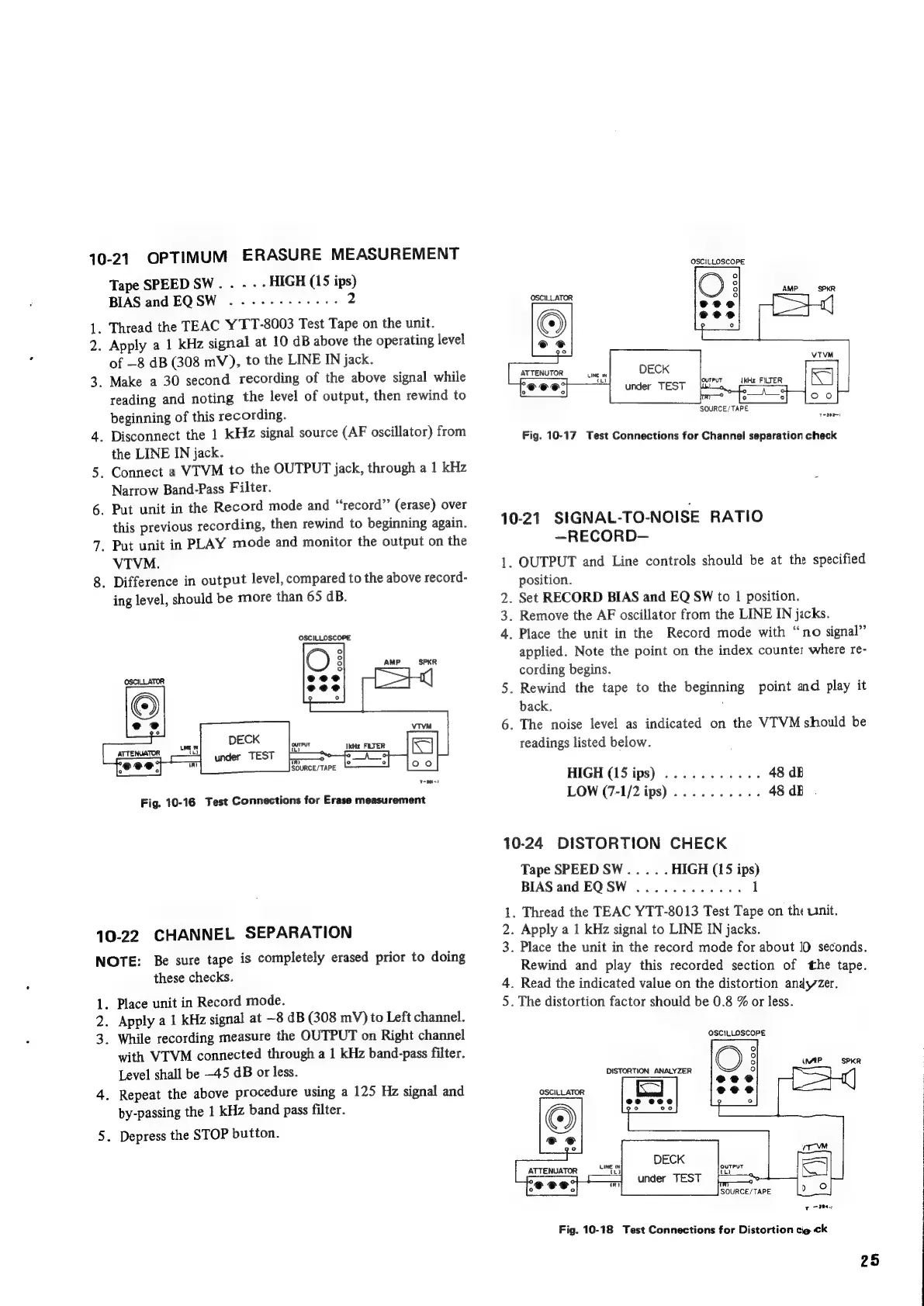

10-21
OPTIMUM
ERASURE
MEASUREMENT
Tape
SPEED
SW.
.
-
.
-
HIGH
(15
ips)
BIAS
and
EQSW
....-.------
2
_
Thread
the
TEAC
YTT-8003
Test
Tape
on
the
unit.
.
Apply
a
1
kHz
signal
at
10
dB
above
the
operating
level
of
—8
dB
(308
mV),
to
the
LINE
IN
jack.
_
Make
a
30
second
recording
of
the
above
signal
while
reading
and
noting
the
level
of
output,
then
rewind
to
beginning
of
this
recording.
_
Disconnect
the
1
kHz
signal
source
(AF
oscillator)
from
the
LINE
IN
jack.
_
Connect
a
VIVM
to
the
OUTPUT
jack,
through
a
1
kHz
Narrow
Band-Pass
Filter.
_
Put
unit
in
the
Record
mode
and
“record”
(erase)
over
this
previous
recording,
then
rewind
to
beginning
again.
_
Put
unit
in
PLAY
mode
and
monitor
the
output
on
the
VTVM.
_
Difference
in
output
level,
compared
to
the
above
record-
ing
level,
should
be
more
than
65
dB.
OSCILLOSCOPE
Fig.
10-16
Test
Connections
for
Erase
measurement
10-22
CHANNEL
SEPARATION
NOTE:
Be
sure
tape
is
completely
erased
prior
to
doing
these
checks.
.
Place
unit
in
Record
mode.
2.
Apply
a
1
kHz
signal
at
—8
dB
(308
mV)
to
Left
channel.
.
While
recording
measure
the
OUTPUT
on
Right
channel
with
VTVM
connected
through
a
1
kHz
band-pass
filter.
Level
shall
be
—45
dB
or
less.
.
Repeat
the
above
procedure
using
a
125
Hz
signal
and
by-passing
the
1
kHz
band
pass
filter.
.
Depress
the
STOP
button.
OSCILLOSCOPE
OSCILLATOR:
ATTENUTOR
; i
under
TEST
° °
SOURCE/TAPE
Te39
Fig.
10-17
Test
Connections
for
Channel
separation
check
10-21
SIGNAL-TO-NOISE
RATIO
—RECORD—
.
OUTPUT
and
Line
controls
should
be
at
the
specified
position.
.
Set
RECORD
BIAS
and
EQ
SW
to
1
position.
.
Remove
the
AF
oscillator
from
the
LINE
IN
jacks.
.
Place
the
unit
in
the
Record
mode
with
“no
signal”
applied.
Note
the
point
on
the
index
counter
where
re-
cording
begins.
.
Rewind
the
tape
to
the
beginning
point
and
play
it
back.
.
The
noise
level
as
indicated
on
the
VTVM
should
be
readings
listed
below.
HIGH
(15
ips)
...........
48
dB
LOW
(7-1/2
ips)
..........
48
dB.
10-24
DISTORTION
CHECK
Tape
SPEEDSW.....
HIGH
(15
ips)
BIAS
and
EQSW
............
1
1.
Thread
the
TEAC
YTT-8013
Test
Tape
on
the
unit.
2.
Apply
a
1
kHz
signal
to
LINE
IN
jacks.
3.
Place
the
unit
in
the
record
mode
for
about
10
seconds.
Rewind
and
play
this
recorded
section
of
the
tape.
4.
Read
the
indicated
value
on
the
distortion
andyzer.
5.
The
distortion
factor
should
be
0.8
%
or
less.
OSCILLOSCOPE
Fig.
10-18
Test
Connections
for
Distortion
cig
ck
25
