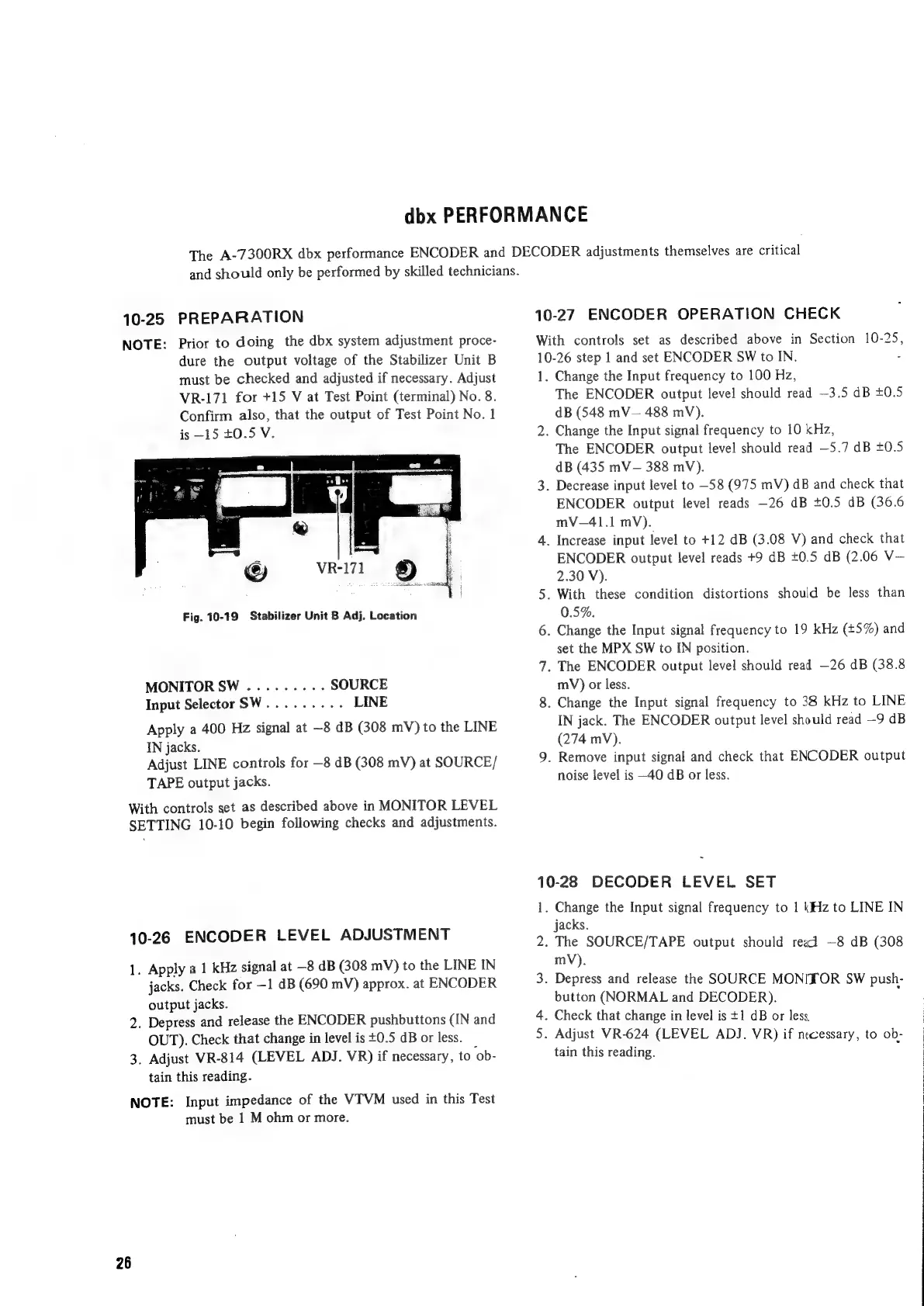

dbx
PERFORMANCE
The
A-7300RX
dbx
performance
ENCODER
and
DECODER
adjustments
themselves
are
critical
and
should
only
be
performed
by
skilled
technicians.
10-25
PREPARATION
NOTE:
Prior
to
doing
the
dbx
system
adjustment
proce-
dure
the
output
voltage
of
the
Stabilizer
Unit
B
must
be
checked
and
adjusted
if
necessary.
Adjust
VR-171
for
+15
V
at
Test
Point
(terminal)
No.
8.
Confirm
also,
that
the
output
of
Test
Point
No.
1
is
—15
+0.5
V.
@
VR-17
Fig.
10-19
Stabilizer
Unit
B
Adj.
Location
MONITOR
SW
.........
SOURCE
Input
Selector
SW.........
LINE
Apply
a
400
Hz
signal
at
~8 dB
(308
mV)
to
the
LINE
IN
jacks.
Adjust
LINE
controls
for
—8
dB
(308
mV)
at
SOURCE/
TAPE
output
jacks.
With
controls
set
as
described
above
in
MONITOR
LEVEL
SETTING
10-10
begin
following
checks
and
adjustments.
10-26
ENCODER
LEVEL
ADJUSTMENT
1.
Apply
a
1
kHz
signal
at
—8
dB
(308
mV)
to
the
LINE
IN
jacks.
Check
for
—1
dB
(690
mV)
approx.
at
ENCODER
output
jacks.
2.
Depress
and
release
the
ENCODER
pushbuttons
(IN
and
OUT).
Check
that
change
in
level
is
0.5
dB
or
less.
3.
Adjust
VR-814
(LEVEL
ADJ.
VR)
if
necessary,
to
‘ob-
tain
this
reading.
NOTE:
Input
impedance
of
the
VTVM
used
in
this
Test
must
be
1
M
ohm
or
more.
26
10-27
ENCODER
OPERATION
CHECK
With
controls
set
as
described
above
in
Section
10-25,
10-26
step
1
and
set
ENCODER
SW
to
IN.
-
1.
Change
the
Input
frequency
to
100
Hz,
The
ENCODER
output
level
should
read
—3.5
dB
£0.5
dB
(548
mV—
488
mV).
.
Change
the
Input
signal
frequency
to
10
kHz,
The
ENCODER
output
level
should
read
—5.7
dB
+0.5
dB
(435
mV—
388
mV).
.
Decrease
input
level
to
—58
(975
mV)
dB
and
check
that
ENCODER
output
level
reads
—26
dB
+0.5
dB
(36.6
mV—41.1
mV).
.
Increase
input
level
to
+12
dB
(3.08
V)
and
check
that
ENCODER
output
level
reads
+9
dB
+0.5
dB
(2.06
V—
2.30
V).
.
With
these
condition
distortions
should
be
less
than
0.5%.
.
Change
the
Input
signal
frequency
to
19
kHz
(£5%)
and
set
the
MPX
SW
to
IN
position.
.
The
ENCODER
output
level
should
read
—26
dB
(38.8
mV)
or
less.
.
Change
the
Input
signal
frequency
to
38
kHz
to
LINE
IN
jack.
The
ENCODER
output
level
should
read
—9
dB
(274
mV).
.
Remove
input
signal
and
check
that
ENCODER
output
noise
level
is
—40
dB
or
less.
10-28
DECODER
LEVEL
SET
1.
2.
Change
the
Input
signal
frequency
to
|
kHz
to
LINE
IN
jacks.
The
SOURCE/TAPE
output
should
read
~8
dB
(308
mV).
.
Depress
and
release
the
SOURCE
MONIFOR
SW
push-
button
(NORMAL
and
DECODER).
.
Check
that
change
in
level
is
+1
dB
or
less,
.
Adjust
VR-624
(LEVEL
ADJ.
VR)
if
necessary,
to
ob-
tain
this
reading.
