4. PARTIAL DIS-ASSEMBLY

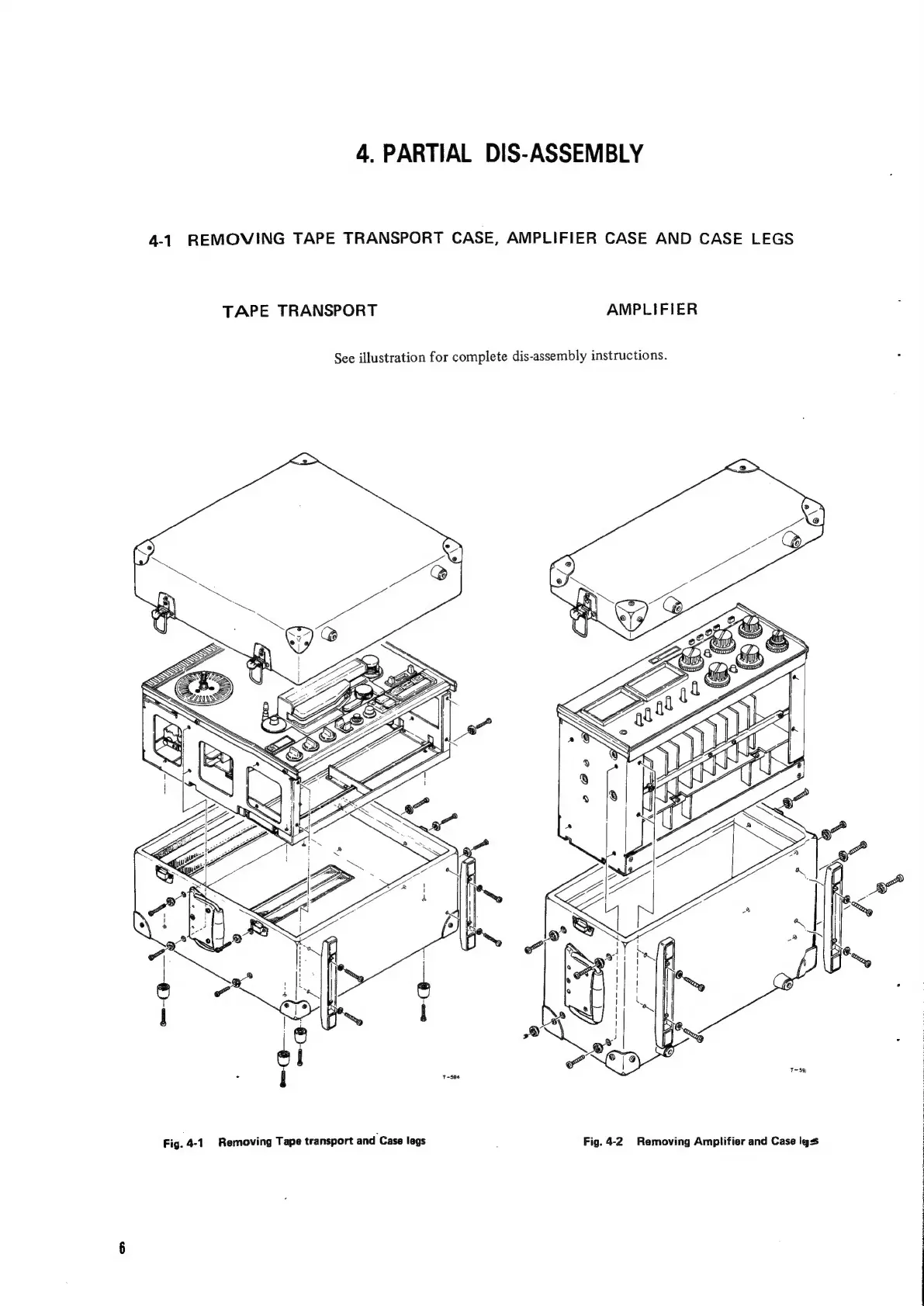

4-1 REMOVING TAPE TRANSPORT CASE, AMPLIFIER CASE AND CASE LEGS
TAPE TRANSPORT AMPLIFIER
See
illustration
for
complete
dis-assembly
instructions.
Fig.
4-1
Removing
Tape
transport
and
Case
legs
’
Fig.
4-2
Removing
Amplifier
and
Case
lgs
