Teac A-7300RX - Page 6

4-2
HEAD
HOUSING
BASE
AND
HEAD
ASS'Y
REMOVAL
HEAD
HOUSING
BASE
REMOVAL
5:
6.
1.
Remove
power
from
the
unit.
2.
Open
the
head
housing
(A).
3.
4.
Remove
head
housing
Link
ass’y
(C)
by
removing
4
Remove
Name
Plate
(B).
screws
(remove
with
spring
(D)
and
Anti-spoiler
(E).
Remove
head
housing
Base
(F)
by
removing
2
mounting
screws.
Gently
move
head
housing
base
(F)
toward
the
top
of
the deck.
HEAD
ASS’Y
REMOVAL
7.
8.
NOTE:
Remove
4
mounting
screws
from
the
head
assembly
(G)
and
remove
the
2
pin
jacks
and
the
9
pin
connector
mounted
on
the
rear
of
the
head
housing.
Lift off head assembly.
After
the
head
is
replaced
be
sure
to
replace
the
shield
case
and
tighten
the
2
counter-sunk
screws
on
the
rear
of
the
head
assembly
plate.
Also
insure
that
the
spring
(D)
on
the
head
housing
is
properly
set
in
the
slot
on
the
head
housing.

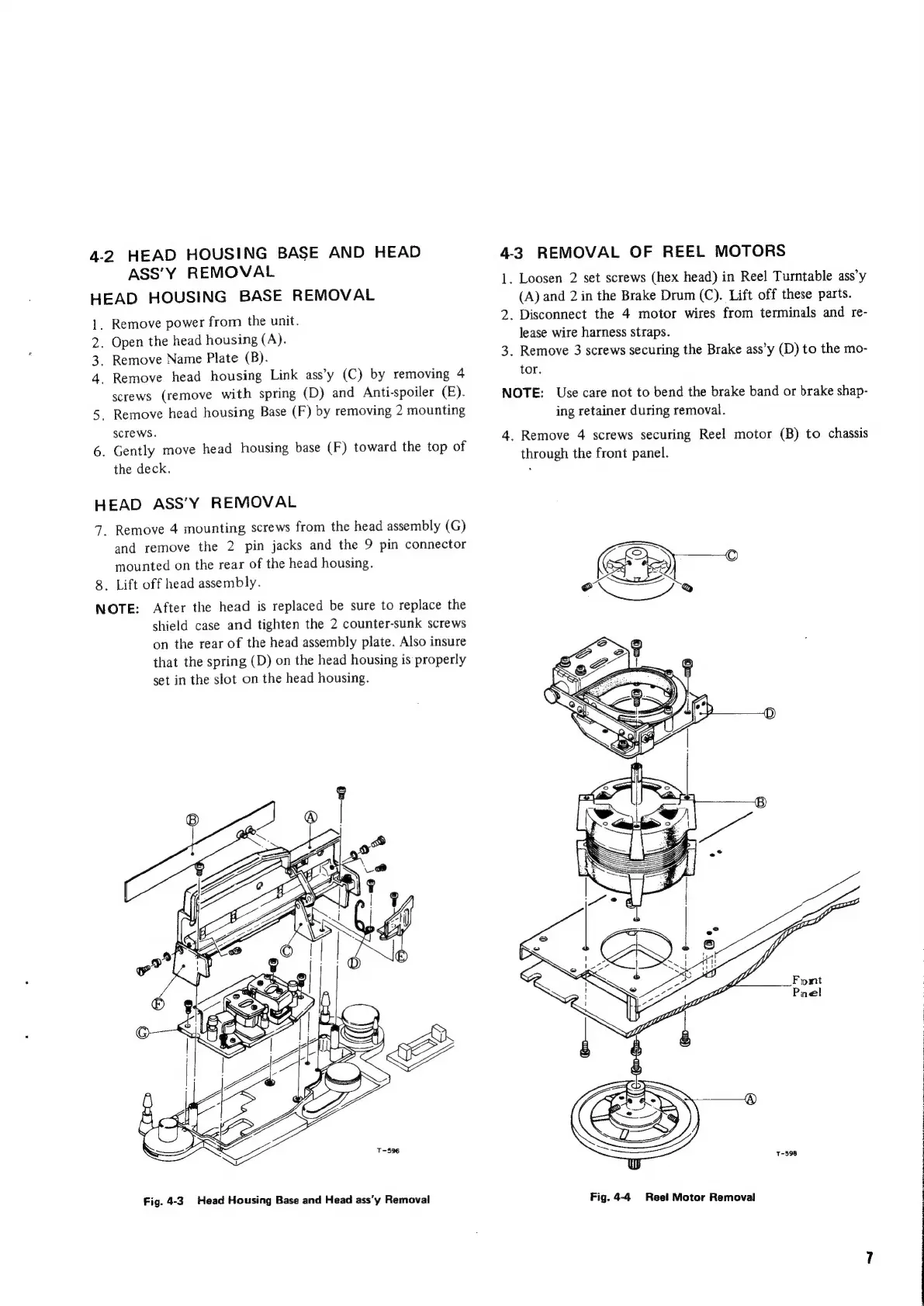

Fig. 4-3 Head Housing Base and Head ass’y Removal
4-3 REMOVAL OF REEL MOTORS
1.
2.
3.
Loosen
2
set
screws
(hex
head)
in
Reel
Turntable
ass’y
(A)
and
2
in
the
Brake
Drum
(C).
Lift
off
these
parts.
Disconnect
the
4
motor
wires
from
terminals
and
re-
lease
wire
harness
straps.
Remove 3 screws securing the Brake ass’y (D) to the mo-
tor.
NOTE: Use care not to bend the brake band or brake shap-
ing retainer during removal.
4. Remove 4 screws securing Reel motor (B) to chassis
through the front panel.
Fig. 4-4 Reel Motor Removal
