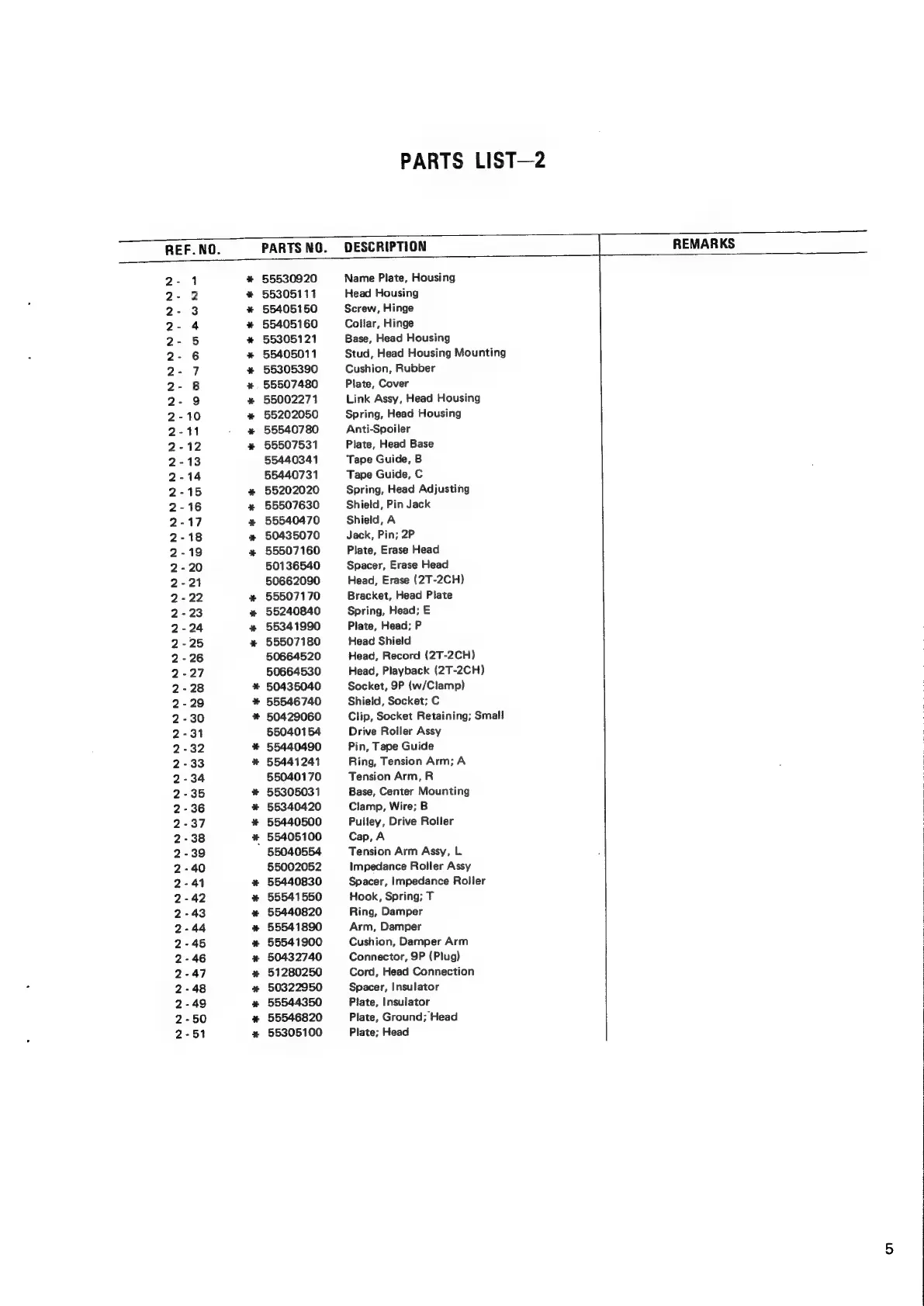

PARTS LIST—2
REMARKS
REF.NO.
PARTS
NO.
DESCRIPTION
2-
1
*
55530920
Name
Plate,
Housing
2-
2
*
55305111
Head
Housing
2-
3
*
55405150
Screw,
Hinge
2-
4
*
55405160
Collar,
Hinge
2-5
*
55305121
Base,
Head
Housing
2-6
*
55405011
Stud,
Head
Housing
Mounting
2-7
*
55305390
Cushion,
Rubber
2-
8
*.
55507480
Plate,
Cover
2-9
%
55002271
Link
Assy,
Head
Housing
2-10
%
55202050
Spring,
Head
Housing
2-11
#
55540780
Anti-Spoiler
2-12
%
55507531
Plate,
Head
Base
2-13
55440341
Tape
Guide,
B
2-14
55440731
Tape
Guide,
C
2-15
*
55202020
Spring,
Head
Adjusting
2-16
%
55507630
Shield,
Pin
Jack
2-17
%
55540470
Shield,
A
2-18
#
50435070
Jack,
Pin;
2P
2-19
*
55507160
Plate,
Erase
Head
2-20
50136540
Spacer,
Erase
Head
2-21
50662090
Head,
Erase
(2T-2CH)
2-22
%
55507170
Bracket,
Head
Plate
2-23
%*
55240840
Spring,
Head;
E
2-24
%
55341990
Plate,
Head;
P
2-25 #% 55507180 Head Shield
2-26 50664520 Head, Record {2T-2CH)
2-27
50664530
Head,
Playback
(2T-2CH)
2-28
*
50435040
Socket,
9P
(w/Clamp)
2-29
*
55546740
Shield,
Socket;
C
2-30
*
50429060
Clip,
Socket
Retaining;
Small
2-31
55040154
Drive
Roller
Assy
2-32
*
55440490
Pin,
Tape
Guide
2-33
*
55441241
Ring,
Tension
Arm;
A
2-34
55040170
Tension
Arm,
R
2-35
*
55305031
Base,
Center
Mounting
2-36
*
55340420
Clamp,
Wire;
B
2-37
*
55440500
Pulley,
Drive
Roller
2-38
*
55405100
Cap,
A
2-39
55040554
Tension
Arm
Assy,
L
2-40
55002052
Impedance
Roller
Assy
2-41
*
55440830
Spacer,
Impedance
Roller
2-42
*
55541550
Hook,
Spring;
T
2-43 % 55440820 Ring, Damper
2-44 * 55541890 Arm, Damper
2-45 * 55541900 Cushion, Damper Arm
2-46 * 50432740 Connector, 9P (Plug)
2-47 * 51280250 Cord, Head Connection
2-48 % 50322950 Spacer, Insulator
2-49 * 55544350 Plate, Insulator
2-50 * 55546820 Plate, Ground; Head
2-51 * 55305100 Plate; Head
