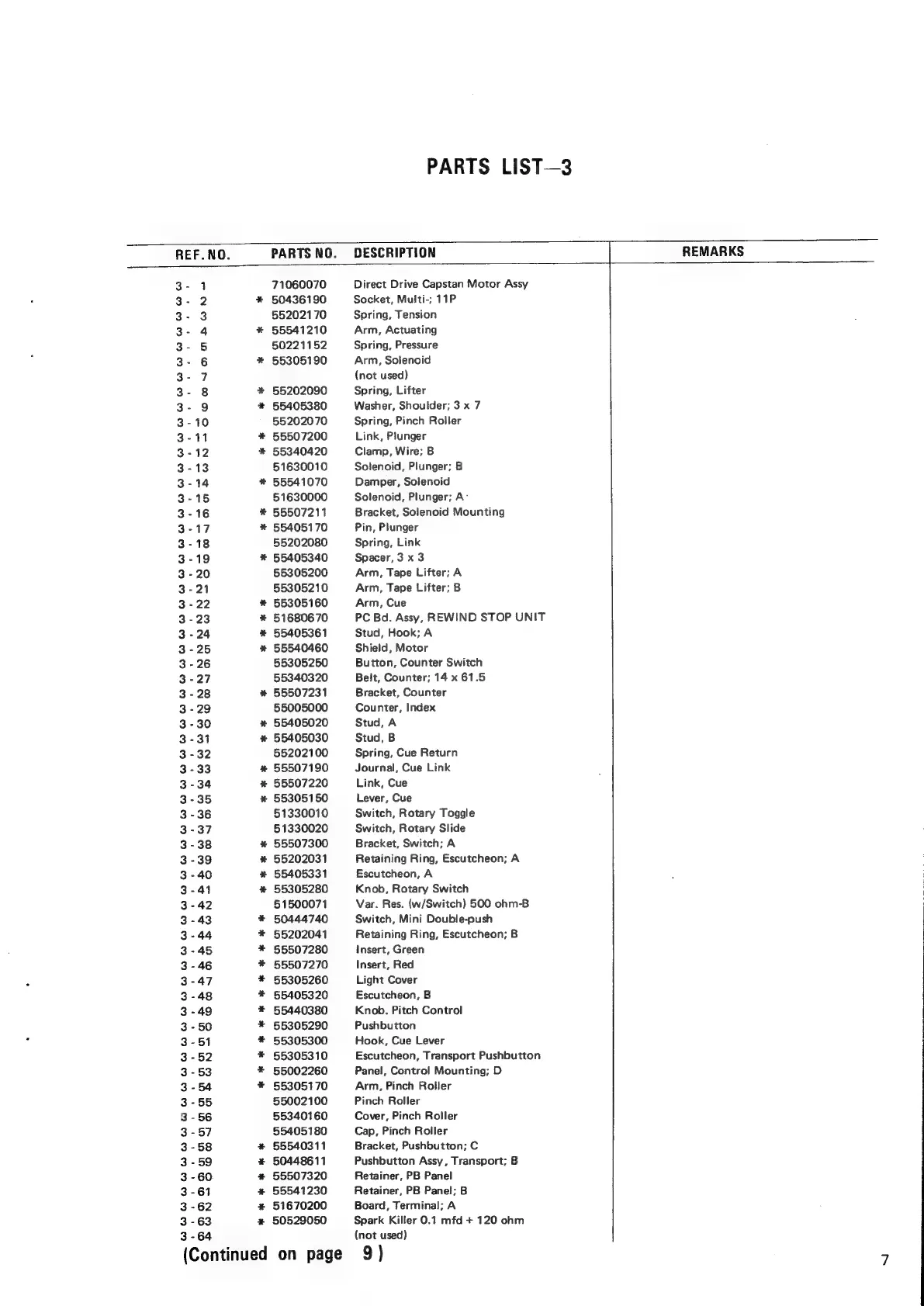

PARTS LIST—3
sal
REMARKS
REF.NO. PARTS NO. DESCRIPTION
3-1 71060070 Direct Drive Capstan Motor Assy
3- 2 * 50436190 Socket, Multi-; 11P
3- 3 55202170 Spring, Tension
3- 4 * 55541210 Arm, Actuating
3- 5 50221152 Spring, Pressure
3-6 * 55305190 Arm, Solenoid
3-7 (not used)
3- 8 * 55202090 Spring, Lifter
3-9 * 55405380 Washer, Shoulder; 3 x 7
3-10 55202070 Spring, Pinch Roller
3-11 * 55507200 Link, Plunger
3-12 * 55340420 Clamp, Wire; B
3-13 51630010 Solenoid, Plunger; B
3-14 * 55541070 Damper, Solenoid
3-15 51630000 Solenoid, Plunger; A-
3-16 * 55507211 Bracket, Solenoid Mounting
3-17 * 55405170 Pin, Plunger
3-18 55202080 Spring, Link
3-19 * 55405340 Spacer, 3 x 3
3-20 55305200 Arm, Tape Lifter; A
3-21 55305210 Arm, Tape Lifter; B
3-22 * 55305160 Arm, Cue
3-23 * 51680670 PC Bd. Assy, REWIND STOP UNIT
3-24 * 55405361 Stud, Hook; A
3-25 * 55540460 Shield, Motor
3 - 26 55305250 Button, Counter Switch
3-27 55340320 Beit, Counter; 14 x 61.5
3-28 * 55507231 Bracket, Counter
3-29 55005000 Counter, Index
3-30 * 55405020 Stud, A
3-31 * 55405030 Stud, B
3-32 55202100 Spring, Cue Return
3-33 * 55507190 Journal, Cue Link
3-34 * 55507220 Link, Cue
3-35 * 55305150 Lever, Cue
3-36 51330010 Switch, Rotary Toggle
3-37 51330020 Switch, Rotary Slide
3-38 * 55507300 Bracket, Switch; A
3-39 * 55202031 Retaining Ring, Escutcheon; A
3-40 * 55405331 Escutcheon, A
3-41 * 55305280 Knob, Rotary Switch
3-42 51500071 Var. Res. (w/Switch) 500 ohm-B
3-43 * 50444740 Switch, Mini Double-push
3-44 * 55202041 Retaining Ring, Escutcheon; B
3-45 * §5507280 Insert, Green
3-46 * 55507270 Insert, Red
3-47 * 55305260 Light Cover
3-48 * 55405320 Escutcheon, B
3-49 * 55440380 Knob. Pitch Control
3-50 * §5305290 Pushbutton
3-51 * 55305300 Hook, Cue Lever
3-52 * 55305310 Escutcheon, Transport Pushbutton
3-53 * 55002260 Panel, Control Mounting; D
3-54 * 55305170 Arm, Pinch Roller
3-55 55002100 Pinch Roller
3 - 56 55340160 Cover, Pinch Roller
3-57 55405180 Cap, Pinch Roller
3-58 * 55540311 Bracket, Pushbutton; C
3-59 * 50448611 Pushbutton Assy, Transport; B
3-60 * 55507320 Retainer, PB Panel
3-61 %* 55541230 Retainer, PB Panel; B
3-62 * 51670200 Board, Terminal; A
3-63 % 50529050 Spark Killer 0.1 mfd + 120 ohm
3-64 (not used)
(Continued on page 9)
