3-66
3-67
3-68
3-69
* x * kK KK KK KOK * *
* * * *
**e eke eK KE OK KOK
x * * *

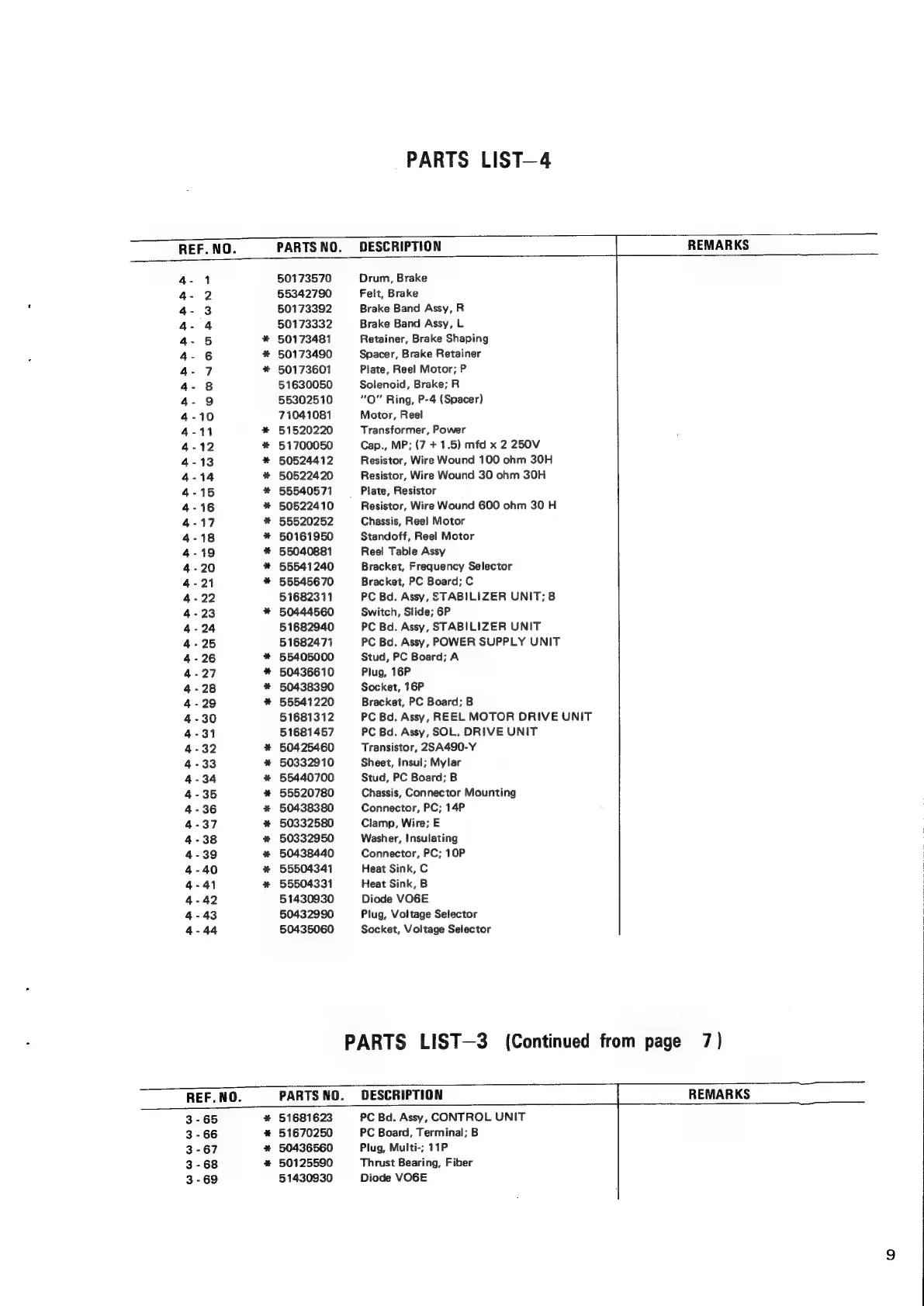

PARTS LIST—4
PARTS NO.
50173570
55342790
50173392
50173332
50173481
50173490
50173601
51630050
55302510
71041081
51520220
51700050
50524412
50522420
55540571
50522410
55520252
50161950
55040881
55541240
55545670
51682311
50444560
51682940
51682471
55405000
50436610
50438390
55541220
51681312
51681457
50425460
50332910
55440700
55520780
50438380
50332580
50332950
50438440
55504341
55504331
51430930
50432990
50435060
PARTS LIST—3 (Continued from page
DESCRIPTION
Drum, Brake
Felt, Brake
Brake Band Assy, R
Brake Band Assy, L
Retainer, Brake Shaping
Spacer, Brake Retainer
Plate, Reel Motor; P
Solenoid, Brake; R
“O" Ring, P-4 (Spacer)
Motor, Reel
Transformer, Power
Cap., MP; (7 + 1.5) mfd x 2 250V
Resistor, Wire Wound 100 ohm 30H
Resistor, Wire Wound 30 ohm 30H
Plate, Resistor
Resistor, Wire Wound 600 ohm 30 H
Chassis, Ree! Motor
Standoff, Reel Motor
Reel Table Assy
Bracket, Frequency Selector
Bracket, PC Board; C
PC Bd. Assy, STABILIZER UNIT; B
Switch, Slide; 6P
PC Bd. Assy, STABILIZER UNIT
PC Bd. Assy, POWER SUPPLY UNIT
Stud, PC Board; A
Plug, 16P
Socket, 16P
Bracket, PC Board; B
PC Bd. Assy, REEL MOTOR DRIVE UNIT
PC Bd. Assy, SOL. DRIVE UNIT
Transistor, 2SA490-Y
Sheet, Insul; Mylar
Stud, PC Board; B
Chassis, Connector Mounting
Connector, PC; 14P
Clamp, Wire; E
Washer, Insulating
Connector, PC; 10P
Heat Sink, C
Heat Sink, B
Diode VO6E
Plug, Voltage Selector
Socket, Voltage Seiector
PARTS NO.
51681623
51670250
50436560
50125590
51430930
DESCRIPTION
PC Bd. Assy, CONTROL UNIT
PC Board, Terminal; B
Plug, Multi-; 11P
Thrust Bearing, Fiber
Diode VO6E
REMARKS
7)
REMARKS
