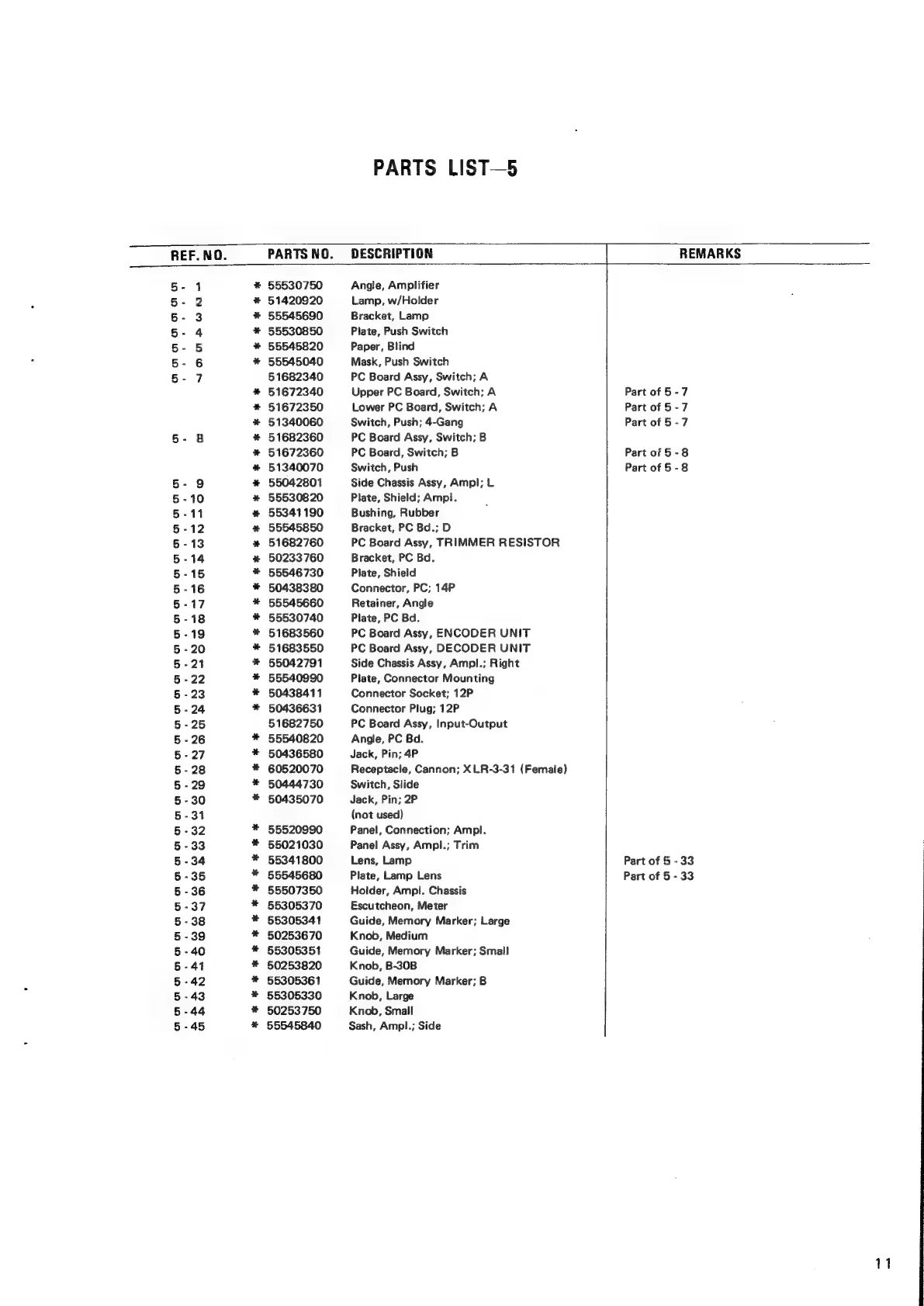

Teac A-7300RX - Page 40

PARTS LIST—5
REF.NO. PARTS NO. DESCRIPTION
- 1 * 55530750 Angle, Amplifier
5- 2 * 51420920 Lamp, w/Holder
5- 3 * 55545690 Bracket, Lamp
5- 4 * 55530850 Plate, Push Switch
5- 5 * 55545820 Paper, Blind
5- 6 * 55545040 Mask, Push Switch
5-7 51682340 PC Board Assy, Switch; A
* 51672340 Upper PC Board, Switch; A
* 51672350 Lower PC Board, Switch; A
* 51340060 Switch, Push; 4-Gang
5- 8 * 51682360 PC Board Assy, Switch; B
* 51672360 PC Board, Switch; B
%* 51340070 Switch, Push
5-9 * 55042801 Side Chassis Assy, Ampl; L
5-10 * 55530820 Plate, Shield; Amp}.
5-11 * 55341190 Bushing, Rubber
5-12 * 55545850 Bracket, PC Bd.; D
5-13 * 51682760 PC Board Assy, TRIMMER RESISTOR
5-14 * 50233760 Bracket, PC Bd.
5-15 * 55546730 Plate, Shield
5-16 * 50438380 Connector, PC; 14P
5-17 * 55545660 Retainer, Angle
5-18 * 55530740 Plate, PC Bd.
5-19 * 51683560 PC Board Assy, ENCODER UNIT
5-20 * 51683550 PC Board Assy, DECODER UNIT
5-21 * 55042791 Side Chassis Assy, Ampl.; Right
5-22 * 55540990 Plate, Connector Mounting
5-23 * 50438411 Connector Socket; 12P
5-24 * 50436631 Connector Plug; 12P
5-25 51682750 PC Board Assy, Input-Output
5-26 * 55540820 Angle, PC Bd.
5-27 * 50436580 Jack, Pin; 4P
5-28 * 60520070 Receptacle, Cannon; XLR-3-31 (Female)
5-29 * 50444730 Switch, Slide
5-30 * 50435070 Jack, Pin; 2P
5-31 (not used)
5-32 * 55520990 Panel, Connection; Ampl.
5-33 * 55021030 Panel Assy, Ampl.; Trim
5-34 * 55341800 Lens, Lamp
5-35 * 55545680 Plate, Lamp Lens
5-36 * 55507350 Holder, Amp!. Chassis
5-37 * 55305370 Escutcheon, Meter
5-38 * 55305341 Guide, Memory Marker; Large
5-39 * 50253670 Knob, Medium
5-40 * 55305351 Guide, Memory Marker; Smail
5-41 * 60253820 Knob, B-30B
5-42 * 55305361 Guide, Memory Marker; B
5-43 * 55305330 Knob, Large
5-44 * 50253750 Knob, Small
5-45 * 55545840 Sash, Ampl.; Side
REMARKS
Part of 5-7
Part of 5-7
Part of 5-7
Part of 5-8
Part of 5-8
Part of 5 - 33
Part of 5 - 33
