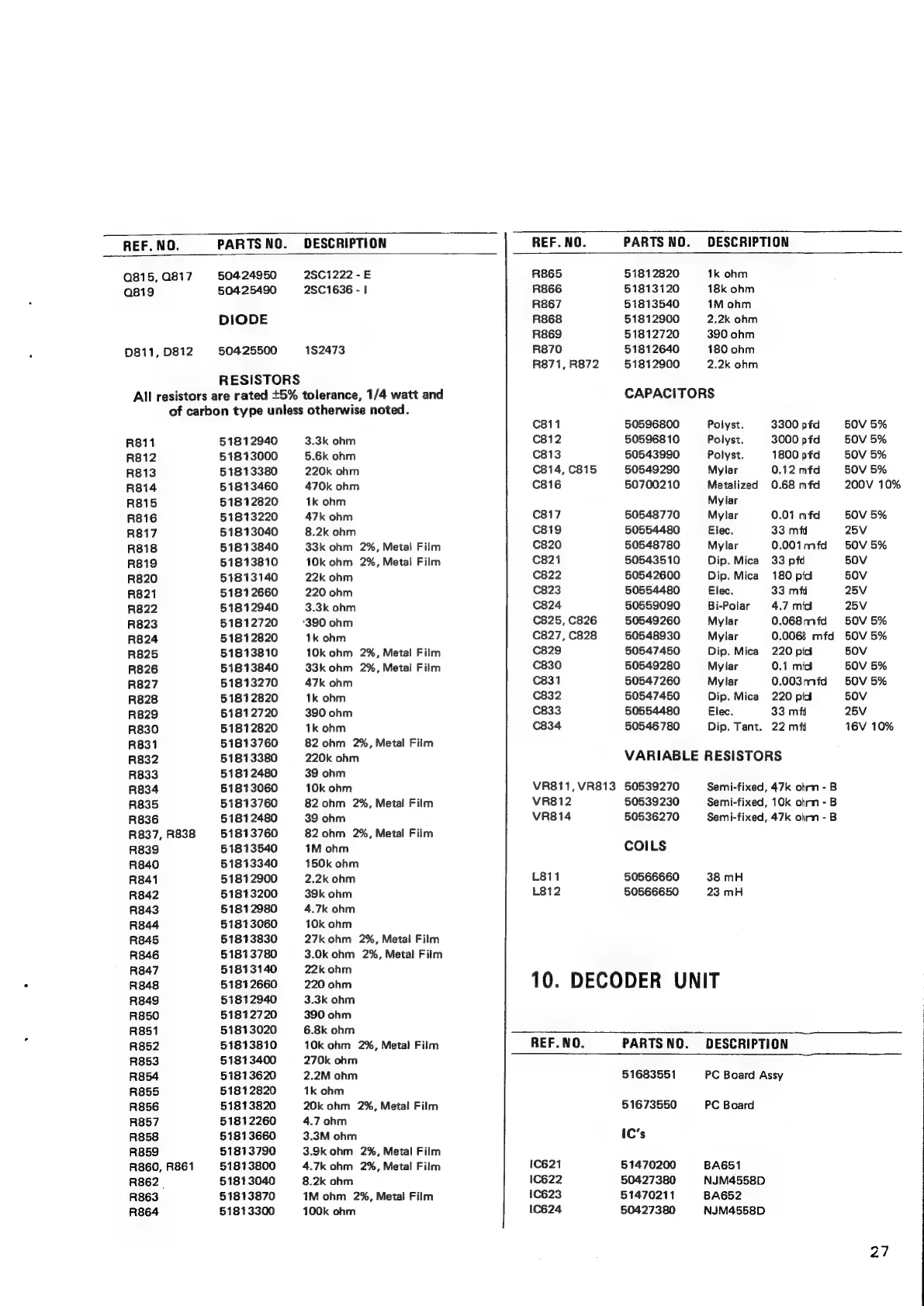

Teac A-7300RX - Page 56

REF. NO. PARTS NO. DESCRIPTION
REF. NO. PARTS NO. DESCRIPTION
Q815,0817 50424950 28C1222-E
a819
50425490
2SC1636-|
DIODE
D811,D812 50425500 182473
RESISTORS
All resistors are rated +5% tolerance, 1/4 watt and
of carbon type unless otherwise noted.
R811
R812
R813
R814
R815
R816
R817
R818
R819
R820
R821
R822
R823
R824
R825
R826
R827
R828
R829
R830
R831
R832
R833
R834
R835
R836
R837, R838
R839
R840
R841
R842
R843
R844
R845
R846
R847
R848
R849
R850
R851
R852
R853
R854
R855
R856
R857
R858
R859
R860, R861
R862.
R863
R864
51812940
51813000
51813380
51813460
51812820
51813220
51813040
51813840
51813810
51813140
51812660
51812940
51812720
51812820
51813810
51813840
51813270
51812820
51812720
51812820
51813760
51813380
51812480
51813060
51813760
51812480
51813760
51813540
51813340
51812900
51813200
51812980
51813060
51813830
51813780
51813140
51812660
51812940
51812720
51813020
51813810
51813400
51813620
51812820
51813820
51812260
51813660
51813790
51813800
51813040
51813870
51813300
3.3k ohm
5.6k ohm
220k ohm
470k ohm
1k ohm
47k ohm
8.2k ohm
33k ohm 2%, Metal Film
10k ohm 2%, Metal Film
22k ohm
220 ohm
3.3k ohm
390 ohm
1k ohm
10k ohm 2%, Metal Film
33k ohm 2%, Metal Film
47k ohm
1k ohm
390 ohm
1k ohm
82 ohm 2%, Metal Film
220k ohm
39 ohm
10k ohm
82 ohm 2%, Metal Film
39 ohm
82 ohm 2%, Metal Film
1M ohm
150k ohm
2.2k ohm
39k ohm
4.7k ohm
10k ohm
27k ohm 2%, Metal Film
3.0k ohm 2%, Metal Film
22k ohm
220 ohm
3.3k ohm
390 ohm
6.8k ohm
10k ohm 2%, Metal Film
270k ohm
2.2M ohm
1k ohm
20k ohm 2%, Metai Film
4.7 ohm
3.3M ohm
3.9k ohm 2%, Metal Film
4.7k ohm 2%, Metal Film
8.2k ohm
1M ohm 2%, Metal Film
100k ohm
R865 51812820 1k ohm
R866 51813120 18k ohm
R867 51813540 1M ohm
R868 51812900 2.2k ohm
R869 51812720 390 ohm
R870 51812640 180 ohm
R871, R872 51812900 2.2k ohm
CAPACITORS
C811 50596800 Polyst. 3300 pfd 50V 5%
C812 50596810 Polyst. 3000 pfd 50V 5%
C813 50543990 Polyst. 1800 pfd 5OV 5%
C814, C815 50549290 Mylar 0.12 mfd 5OV 5%
C816 50700210 Metalized 0.68 mfd 200V 10%
Mylar
C817 50548770 Mylar 0.01 mfd 50V 5%
C819 50554480 Elec. 33 mfd 25V
C820 50548780 Mylar 0.00i1mfd 50V 5%
C821 50543510 Dip. Mica 33 pfd 50V
C822 50542600 Dip. Mica 180 pid 50V
C823 50554480 Elec. 33 mfd 25V
C824 50559090 Bi-Polar 4.7 mid 25V
C825, C826 50549260 Mylar 0.068mfd 50V 5%
C827, C828 50548930 Mylar 0.0068 mfd SOV 5%
C829 50547450 Dip. Mica 220 pid 50V
C830 50549280 Mylar 0.1 mid 5OV 5%
C831 50547260 Mylar 0.003mfd 50V 5%
C832 50547450 Dip. Mica 220 pid 50V
C833 50554480 Elec. 33 mf 25V
C834 50546780 Dip. Tant. 22 mfi 16V 10%
VARIABLE RESISTORS
VR811,VR813 50539270 Semi-fixed, 47k ohm - B
VR812 50539230 Semi-fixed, 10k ohmn - B
VR814 50536270 Semi-fixed, 47k ohrmm - B
COILS
L811 50566660 38 mH
L812 50566650 23 mH
10. DECODER UNIT
REF. NO. PARTS NO. DESCRIPTION
51683551 PC Board Assy
51673550 PC Board
IC’s
iC621 51470200 BA651
1C622 50427380 NJM4558D
1C623 51470211 BA652
C624 50427380 NJM4558D
