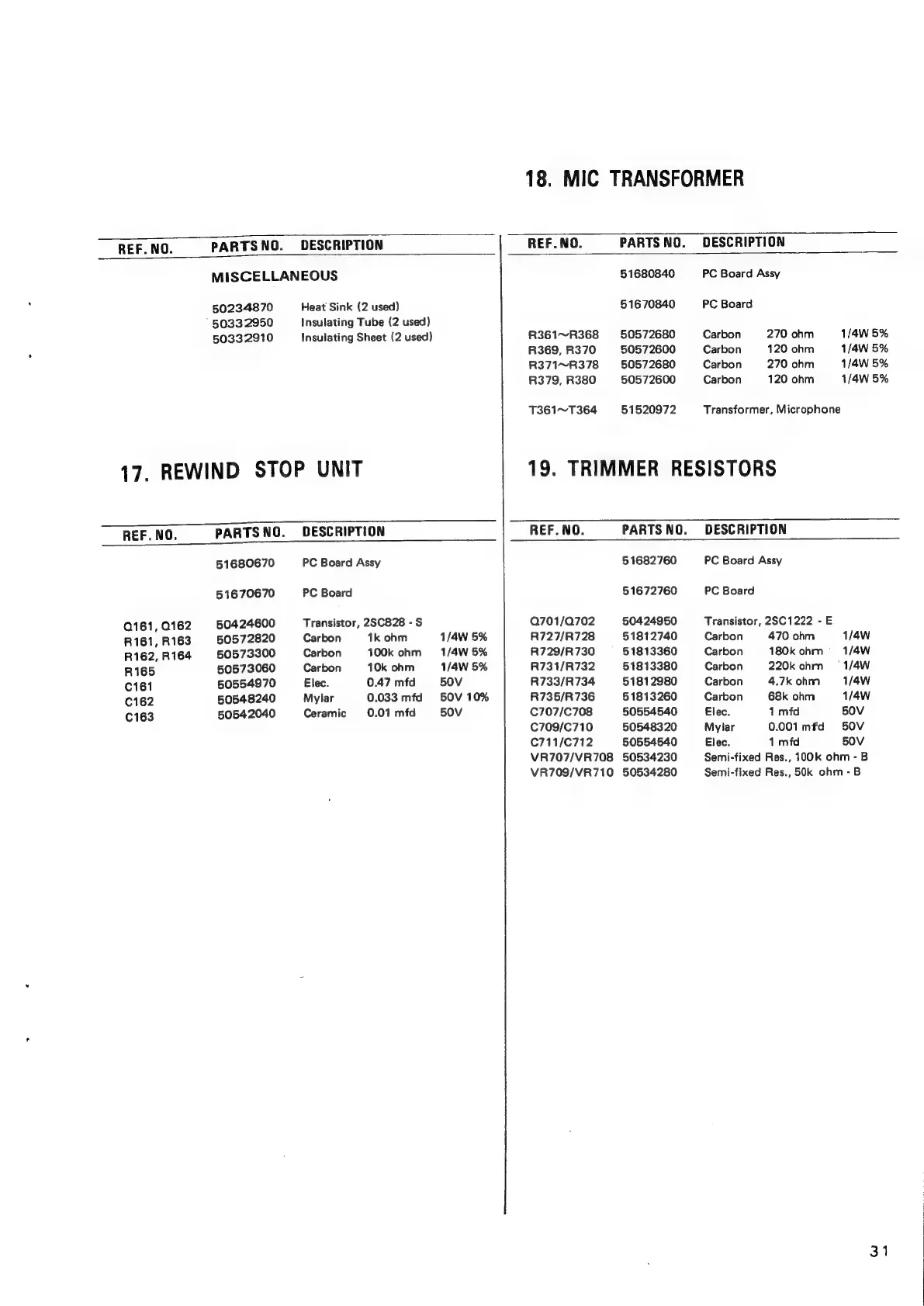

18. MIC TRANSFORMER
REF.
NO.
PARTSNO.
DESCRIPTION
MISCELLANEOUS
50234870
Heat
Sink
(2
used)
5033
2950
Insulating
Tube
(2
used)
50332910
Insulating
Sheet
(2
used)
17.
REWIND
STOP
UNIT
REF. NO.
Q161, Q162
R161, R163
R162, R164
R165
C161
C162
C163
PARTS NO. DESCRIPTION
51680670 PC Board Assy
51670670 PC Board
50424600 Transistor, 2SC828 -S
50572820 Carbon 1k ohm
50573300 Carbon 100k ohm
50573060 Carbon 10k ohm
50554970 Elec. 0.47 mfd
50548240 Mylar 0.033 mfd
50542040 Ceramic 0.01 mfd
1/4W 5%
1/4W 5%
1/4W 5%
50V
50V 10%
50V
REF.NO. PARTS NO. DESCRIPTION
51680840 PC Board Assy
51670840 PC Board
R361~R368 50572680 Carbon 270 ohm 1/4W 5%
R369, R370 50572600 Carbon 120 ohm 1/4W 5%
R371~R378 50572680 Carbon 270 ohm 1/4W 5%
R379, R380 50572600 Carbon 120 ohm 1/4W 5%
T361~T364 51520972 Transformer, Microphone
19. TRIMMER RESISTORS
REF. NO. PARTS NO. DESCRIPTION
51682760 PC Board Assy
51672760 PC Board
Q701/Q702 50424950 Transistor, 2SC1222 - E
R727/R728 51812740 Carbon 470 ohm 1/4W
R729/R730 51813360 Carbon 180k ohm = 1/4W
R731/R732 51813380 Carbon 220k ohm = 1/4W
R733/R734 51812980 Carbon 4.7k ohm 1/4W
R735/R736 51813260 Carbon 68k ohm 1/4w
C707/C708 50554540 Elec. 1 mtd 50V
C709/C710 50548320 Mylar 0.001 mfd 50V
C711/C712 50554540 Elec. 1 mfd 50V
VR707/VR708 50534230
VR709/VR710 50534280
Semi-fixed Res., 100k ohm - B
Semi-fixed Res., 50k ohm -B
31
