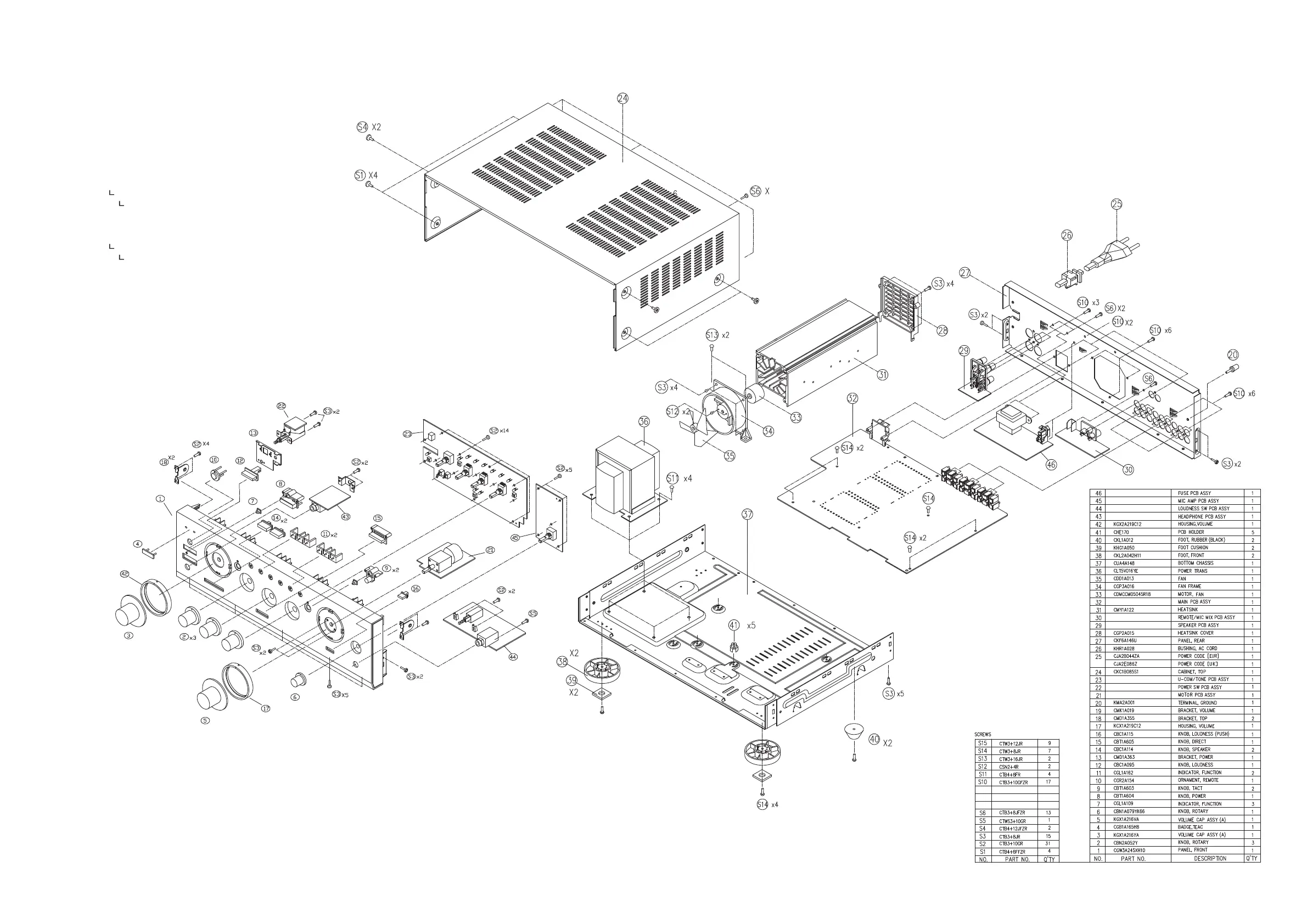

2. EXPLODED VIEWS AND PARTS LISTS
–
3
–
A-R610
Notes for PCB ASSY:
1. The composition of the PCB assemblies has been as follows
that were equal to its supplying unit as well:
COP11094E MAIN PCB ASSY
CUP11094P MAIN PCB
CUP11094-1 PCB, MAIN
CUP11094-2 PCB, SP.A
COP11890B SUB PCB ASSY
CUP11890Y SUB PCB
CUP11890-1 PCB, U-COM/TONE PCB
CUP11890-2 PCB, FUSE
CUP11890-3 PCB, MOTOR
CUP11890-4 PCB, REMOTE/MIC MIX
CUP11890-5 PCB, TRANS
CUP11890-6 PCB, POWER SW
CUP11890-7 PCB, HEADPHONE
CUP11890-8 PCB, MIC AMP
CUP11890-9 PCB, LOUDNESS
2. Consult the BOM.xls for detail of individual parts.
