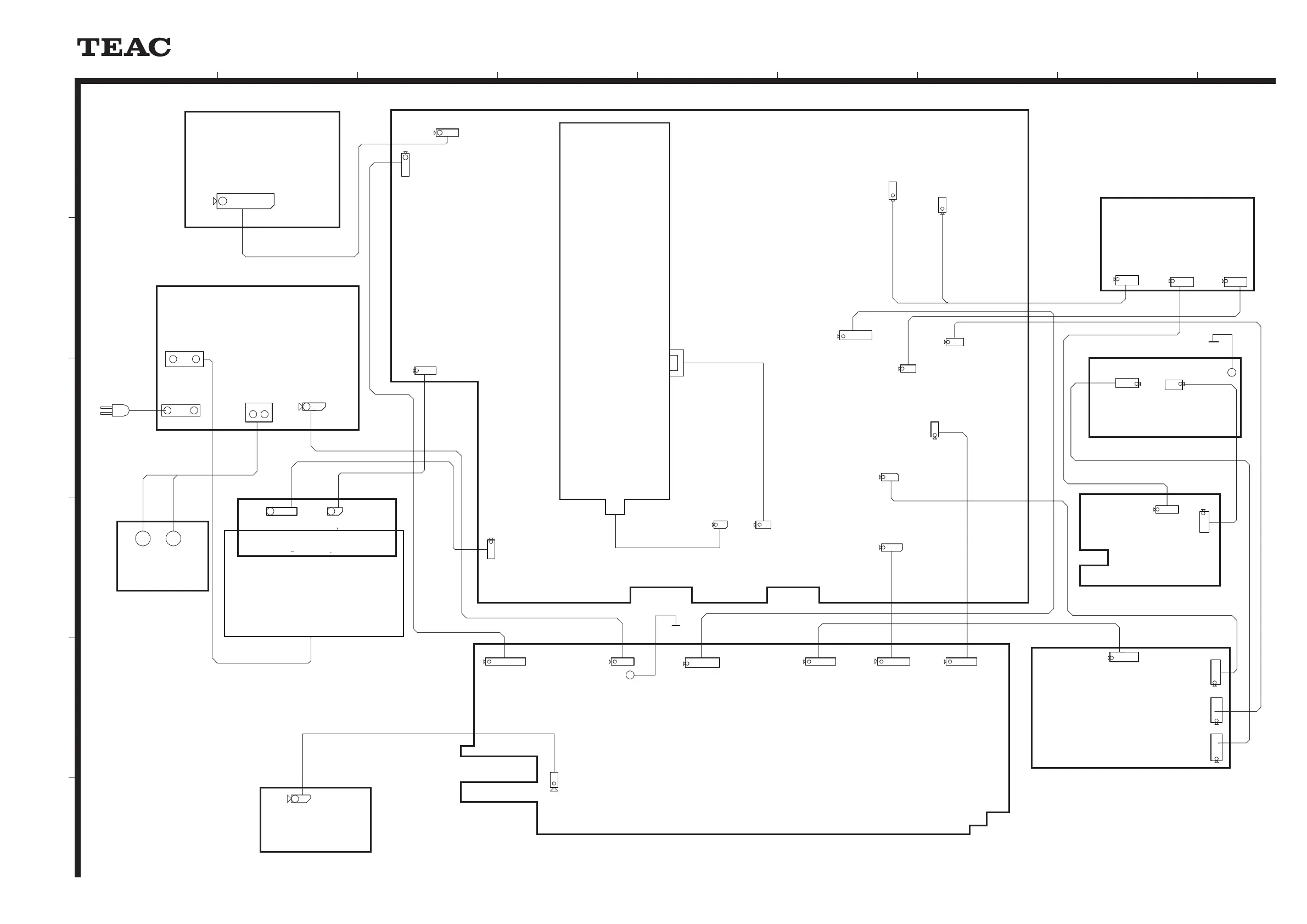

WIRING DIAGRAM A-R610
Integrated Stereo Amplifier
A-R610
1 st Issue; September 2009
MAIN PCB & Wiring
CUP11094-2
SP.A PCB
CUP11890-2
FUSE PCB
POWER TRANS
CLT5V016YE
MOTOR PCB
CUP11890-3
HEADPHONE PCB
CUP11890-7
CUP11890-5
TRANS PCB
CN05(4P)
CN15(2P)
CN14(2P)
BN12(6P)
BN06(6P)
BN11(3P)
BN09(11P) BN10(4P) BN03(7P)
CN03(7P)
CN10(4P)
BN02(5P)
BN42(4P)
BN21(6P)
CN41(3P)
CN43
(6P)
CN42
(4P)
BN44
(4P)
JW45
BN41(3P)
CN01(4P)
CN21(6P)
BN04(4P)
BN07(3P)
CUP11890-1 U-COM/TONE PCB
CN07(3P)
CN13(3P)
CN18(2P)
CN11(3P)
BN13(3P)
CN12(6P)
CN21(2P)
CN02(5P)
CN09(11P)
CN04(4P)
BN01(4P)
BN43(3P)
BN43(3P)
CN04(4P)
TW01(2P)
CN06(6P)
BN05(4P)
JW18(2P)
CUP11890-6
POWER SW PCB
CUP11890-8
MIC AMP PCB
CUP11890-9
LOUDNESS SW PCB
CUP11890-4
REMOTE/MIC MIX PCB
HEATSINK
CUP11094-1
MAIN AMP PCB
