Teac AG-15D - Page 4

86 74 52 31
E
D
C
B
A

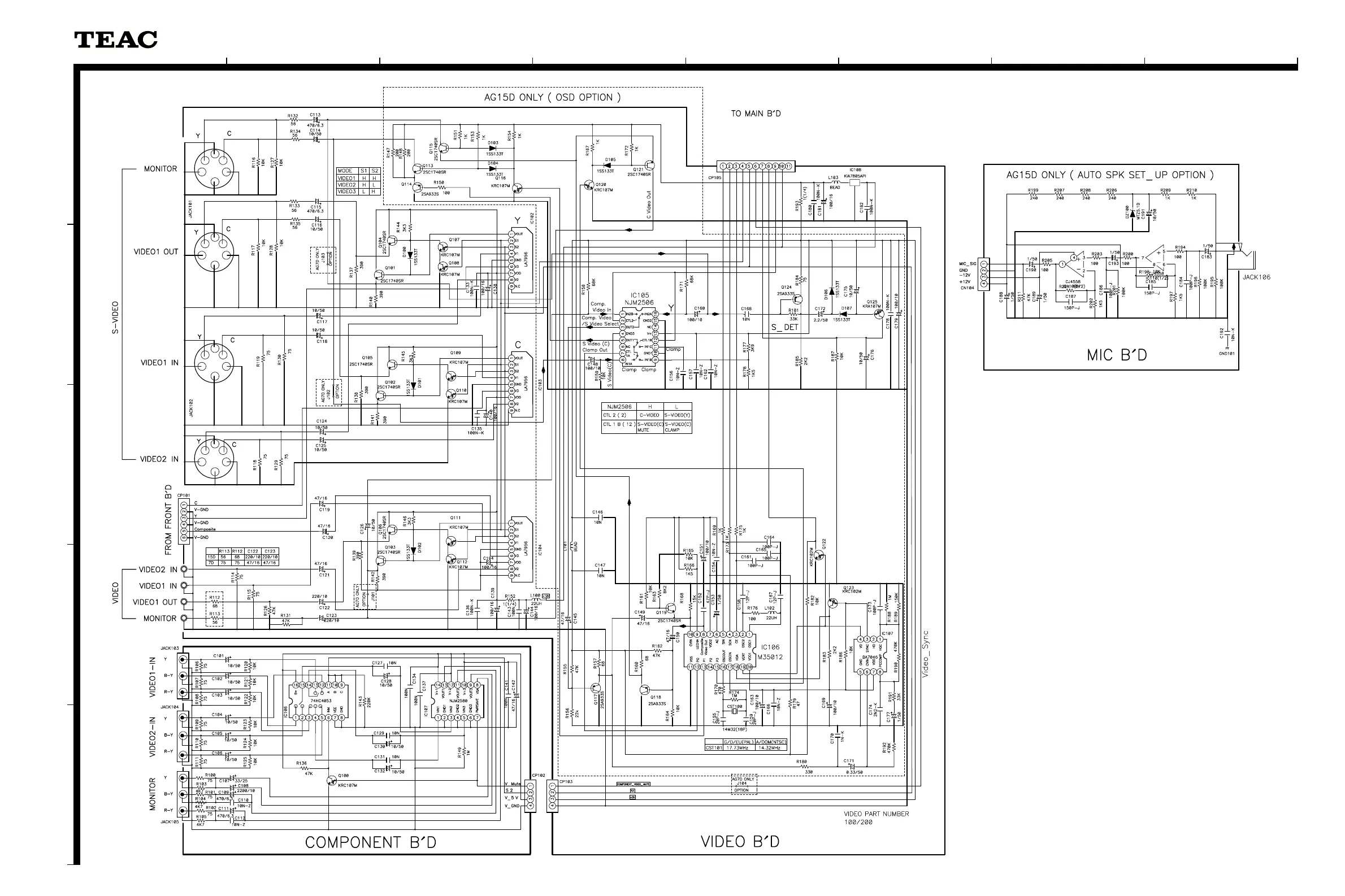

SCHEMATIC DIAGRAM
AG-15D/AG-7D
VIDEO PCB, COMPONENT PCB, MIC PCB
AV Digital Home Theater Receiver
AAGG--1155DD//AAGG--77DD
1 st Issue; November 2004
S1
OSD DATA OSD CLK
VIDEO MUTE
VSYNC-IN
VIDEO +12V S2
NC
OSD CE S-VIDEO DET NJM2506 CNTR
