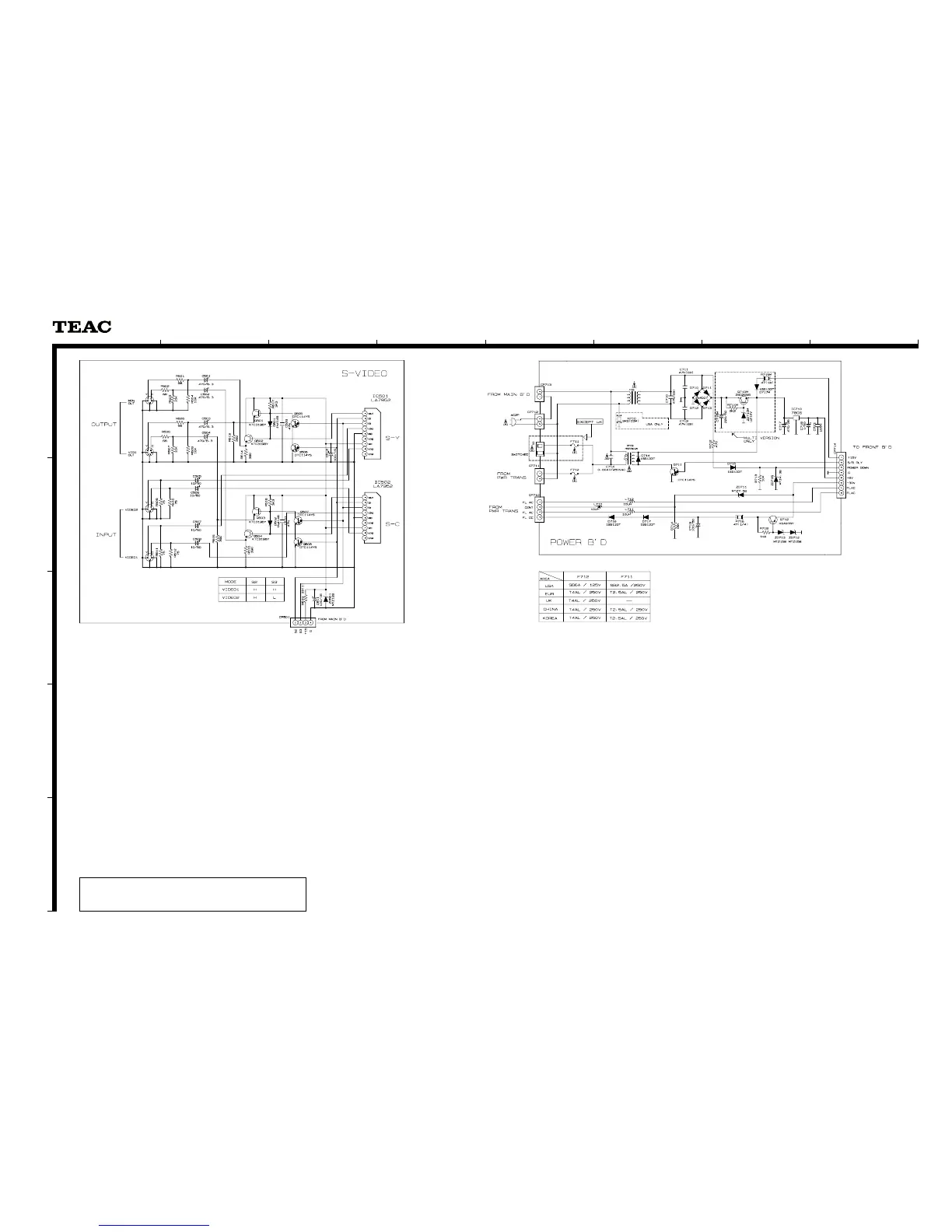

SCHEMATIC DIAGRAM
AG-5D
S-VIDEO PCB, POWER PCB
AV Digital Home Theater Receiver
AAGG--55DD
1 st Issue; January 2004
INSTRUCTIONS FOR SERVICE PERSONNEL
BEFORE RETURNING APPLIANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT.
