Teac AG-790A - Remote Control Layout

SUB PCB ASSY (3/3)
－20－
FH43-44 KJCFC5S HOLDER, FUSE [EUR,UK,230E-N,HKG]
J901 C3A206 WIRE, COPPER [EUR,UK]
J901 C3A206 WIRE, COPPER [HKG,230E-N]
J902 C3A206 WIRE, COPPER [T/C]
J902 C3A206 WIRE, COPPER [HKG,230E-N]
J903 C3A206 WIRE, COPPER [T/C]
J903 C3A206 WIRE, COPPER [EUR,UK]
JK91 HJJ2E020Z JACK, HEADPHONE
JW10 CWZAG580W010 WIRE ASS'Y
JW41 CWEE212080VV WIRE ASS'Y (RED)
JW42 CWEE202090VV WIRE ASS'Y (BLACK)
JW91 CWE7202100RV WIRE ASS'Y
JW94 CWZAG790JW94 WIRE ASS'Y [T/C]
JW95 CWZAG790JW94 WIRE ASS'Y [EUR,UK,230E-N,HKG]
L951 HLQ02C100KT COIL , AXAIL
OUL1 CJJ7A015Z AC OUTLET (120V,2P) [T/C]
OUL2 CJJ7A021Z AC OUTLET (230V,1P) [EUR,UK,230E-N,HKG]
S901 HSR2A031Z VR, ENCODER
S911-928 CST1A012ZT SW, TACT
SW91 KSH1A001ZV SW, PUSH (MOMS)
X901 HOX08000E160C CRYSTAL
CJA2B043ZA CORD, POWER [EUR,230E-N]
CJA2E045ZA CORD, POWER [UK,HKG]
CJA523FBYA CORD, POWER [T/C]
CMY1A256 SINK, HEAT
AG-790A

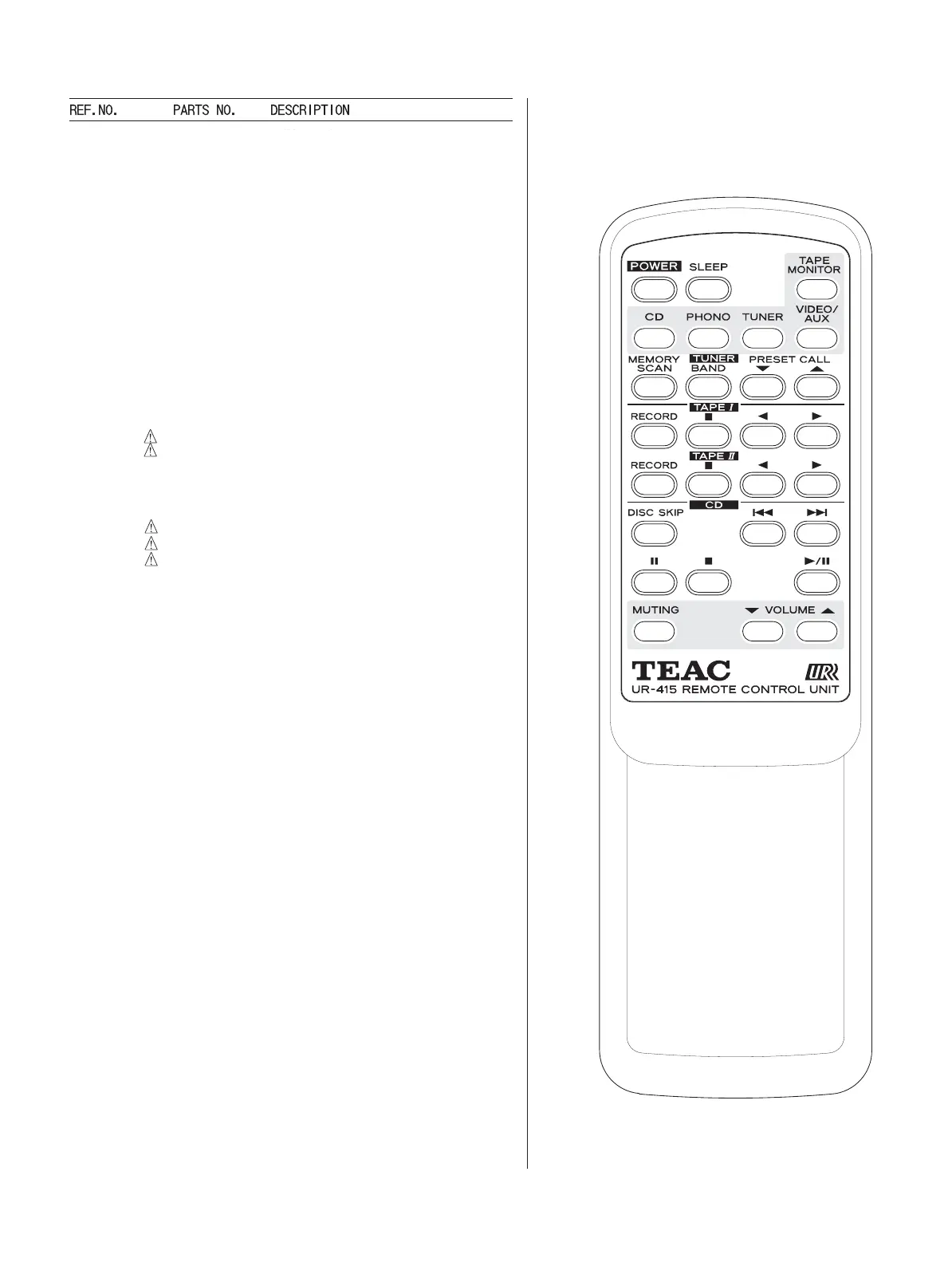

5 REMOTE CONTROL LAYOUT
