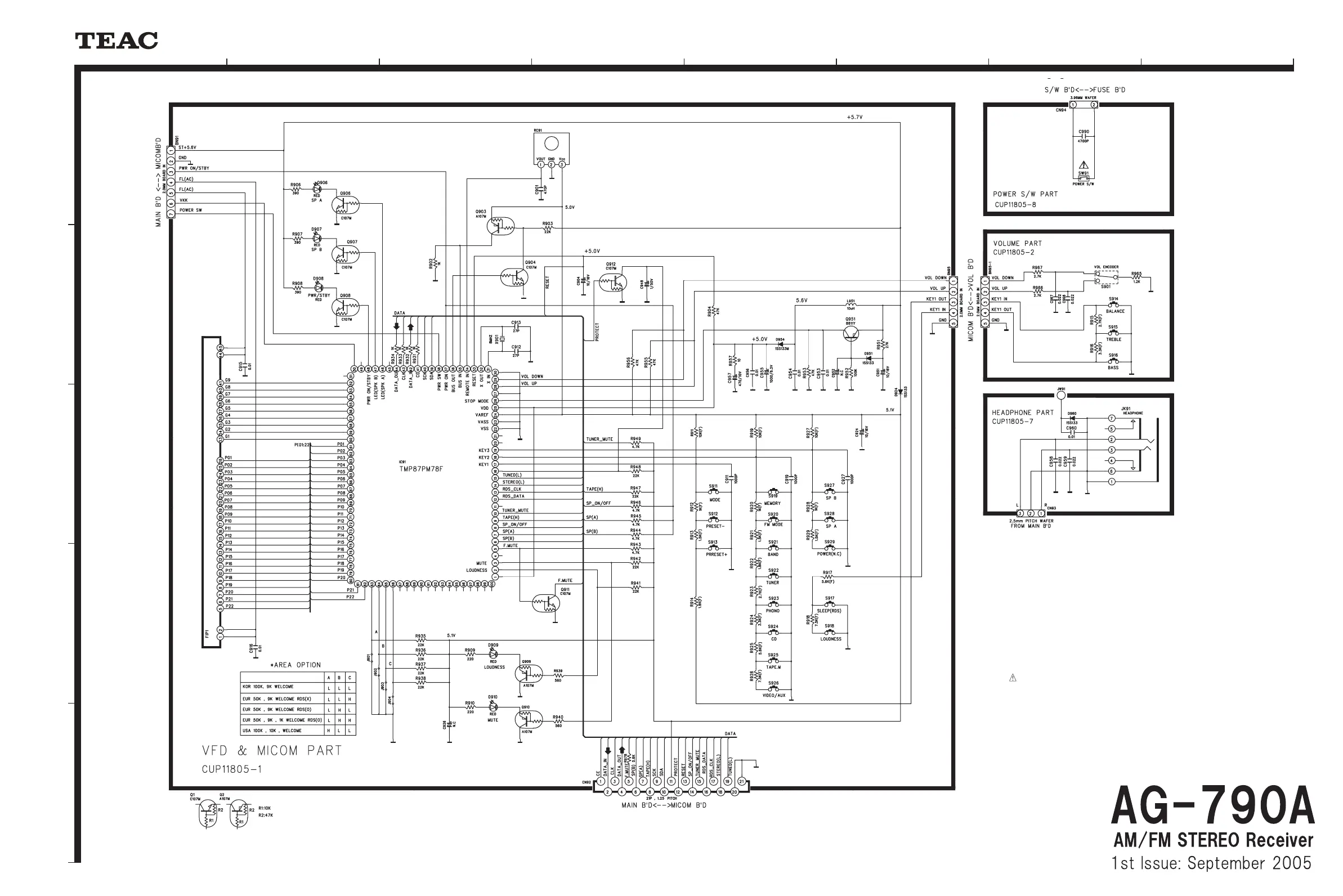

SCHEMATIC DIAGRAM
AG-790A
VFD & MICOM PCB
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. Parts marked with this sign are safety critical components.They must
always be replaced with identical components-refer to the appropriate parts
list and ensure exact replacement.
