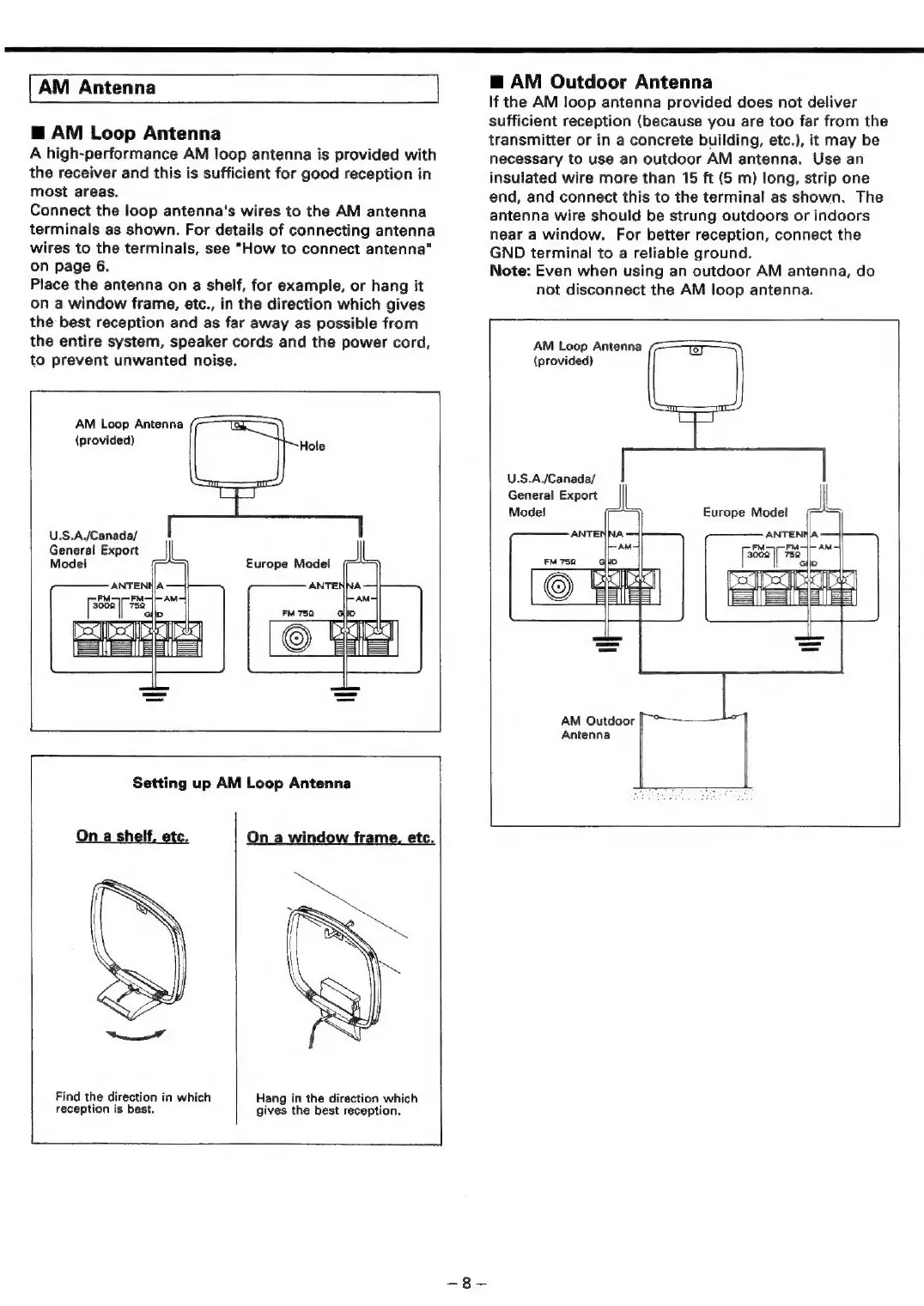

AM Antenna
@ AM Loop Antenna
A high-performance AM loop antenna is provided with
the receiver and this is sufficient for good reception in
most areas.
Connect the loop antenna's wires to the AM antenna
terminals as shown. For details of connecting antenna
wires to the terminals, see "How to connect antenna"
on page 6.
Place the antenna on a shelf, for example, or hang it
on a window frame, etc., in the direction which gives
the best reception and as far away as possible from
the entire system, speaker cords and the power cord,
to prevent unwanted noise.
AM Loop Antenna
(provided) Hole
U.S.A/Canada/
General Export
Model Europe Model
ANTENNA
FM FM: AM
[eee || 78
cig
ANTENNA
AM
FM 75Q D
Setting up AM Loop Antenna
Find the direction in which
Hang in the direction which
reception is best.
gives the best reception.
On a window frame, etc.
@ AM Outdoor Antenna
If the AM loop antenna provided does not deliver
sufficient reception (because you are too far from the
transmitter or in a concrete building, etc.), it may be
necessary to use an outdoor AM antenna. Use an
insulated wire more than 15 ft (5 m) long, strip one
end, and connect this to the terminal as shown. The
antenna wire should be strung outdoors or indoors
near a window. For better reception, connect the
GND terminal to a reliable ground.
Note: Even when using an outdoor AM antenna, do
not disconnect the AM loop antenna.
AM Loop Antenna oy
(provided)
U.S.A/Canada/
General Export
Model
Europe Model
ANTENI
AM Outdoor
Antenna
