Teac AX-505 - Connections Overview; Analog Audio Input Ports

8

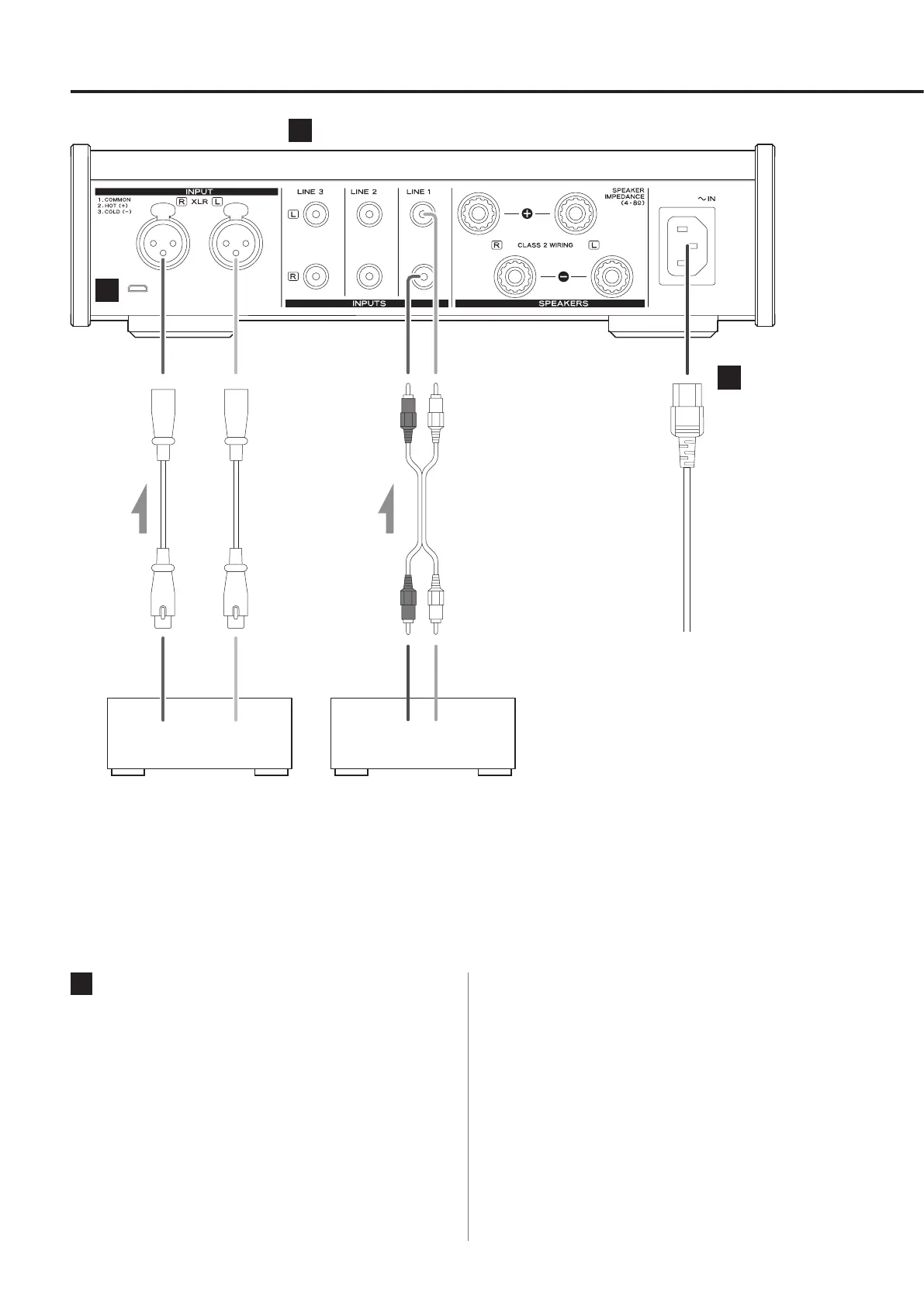

Connections
A Analog audio input connectors
(LINE 1, LINE 2, LINE 3, XLR)
Use these to input stereo analog audio. Connect the audio
output connectors of a cassette deck, CD player or other audio
output equipment to these.
Connect this unit’s R input connector to the R output connec-
tor of the audio output device, and this unit’s L input connector
to the L output connector of the other device.
o This unit’s XLR connectors are 2: HOT.
Use commercially-available audio cables for connections.
LINE1: RCA cables
LINE2: RCA cables
LINE3: RCA cables
XLR: XLR cables
A
B
C
XLR cables
RCA cables
Included power cord
c
Wall outlet
R L R L
Audio output
(LINE OUT, etc.)
Audio output
(LINE OUT, etc.)
Cassette deck,
CD player, etc.
Cassette deck,
CD player, etc.
