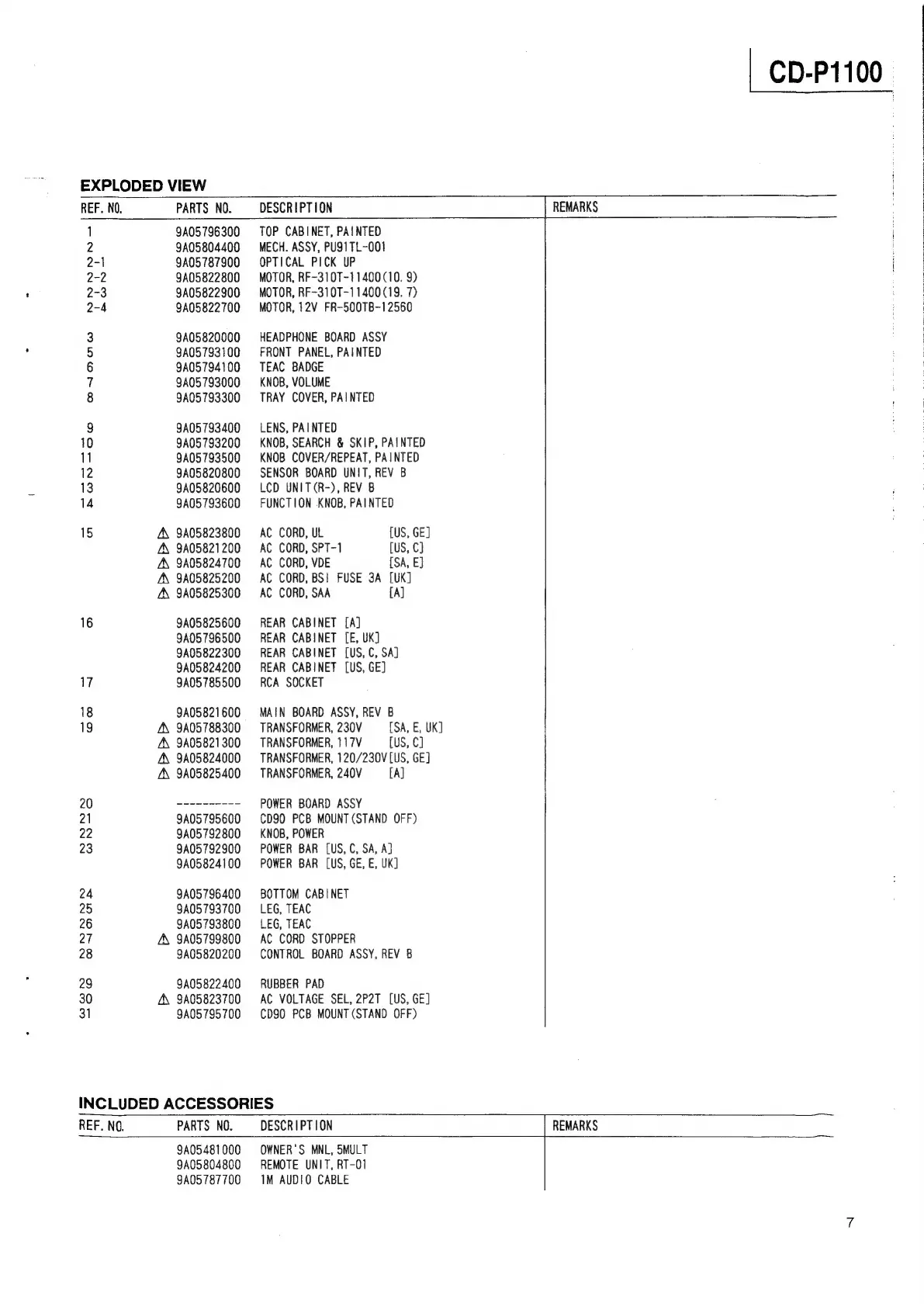

Teac CD-P1100 - Exploded View; Included Accessories

| CD-P1100_
EXPLODED VIEW
REF. NO. PARTS NO. DESCRIPTION REMARKS
1 9A05796300 TOP CABINET, PAINTED
2 9A05804400 MECH. ASSY, PUSITL-001
2-1 9A05787900 OPTICAL PICK UP
2-2 9405822800 MOTOR, RF-310T-11400(10. 9)
2-3 9A05822900 MOTOR, RF-310T-11400(19. 7)
2-4 9405822700 MOTOR, 12V FR-500TB-12560
3 9A05820000 HEADPHONE BOARD ASSY
5 9A05793100 FRONT PANEL, PAINTED
6 9405794100 TEAC BADGE
7 9A05793000 KNOB, VOLUME
8 9A05793300 TRAY COVER, PAINTED
i) 9405793400 LENS, PAINTED
10 9A05793200 KNOB, SEARCH & SKIP, PAINTED
11 9A05793500 KNOB COVER/REPEAT, PAINTED
12 9A05820800 SENSOR BOARD UNIT, REV B
13 9A05820600 LCD UNIT(R-), REV 8B
14 9A05793600 FUNCTION KNOB, PAINTED
15 A\ 9A05823800 AC CORD, UL [US, GE]
AX 9A05821200 AC CORD, SPT-1 [US, CJ
A\ 9A05824700 AC CORD, VDE (SA, E]
A\ 9405825200 AC CORD, BS! FUSE 3A [UK]
A\ 9A05825300 AC CORD, SAA [A]
16 9405825600 REAR CABINET [A]
9A05796500 REAR CABINET [E, UK]
9A05822300 REAR CABINET [US, C, SA]
9405824200 REAR CABINET [US, GE]
17 9405785500 RCA SOCKET
18 9A05821600 MAIN BOARD ASSY, REV B
19 AX 9405788300 TRANSFORMER, 230V (SA, E, UK]
A\ 9A05821300 TRANSFORMER, 117V (US, C]
A\ 9405824000 TRANSFORMER, 120/230V (US, GE]
AX 9A05825400 TRANSFORMER, 240V [A]
20,00 SESS POWER BOARD ASSY
21 9A05795600 CD90 PCB MOUNT (STAND OFF)
22 9A05792800 KNOB, POWER
23 9A05792900 POWER BAR [US,C, SA, A]
9A05824100 POWER BAR [US, GE, E, UK]
24 9405796400 BOTTOM CABINET
25 9A05793700 LEG, TEAC
26 9A05793800 LEG, TEAC
27 AX 9405799800 AC CORD STOPPER
28 9A05820200 CONTROL BOARD ASSY, REV B
23 9A05822400 RUBBER PAD
30 ZX 9405823700 AC VOLTAGE SEL, 2P2T [US, GE]
31 9405795700 CD90 PCB MOUNT (STAND OFF)
INCLUDED ACCESSORIES
REF. NO. PARTS NO. DESCRIPTION REMARKS
9405481000 OWNER’S MNL, SMULT
9405804800 REMOTE UNIT, RT-01
9A05787700 1M AUDIO CABLE
