4. Controls and Functions

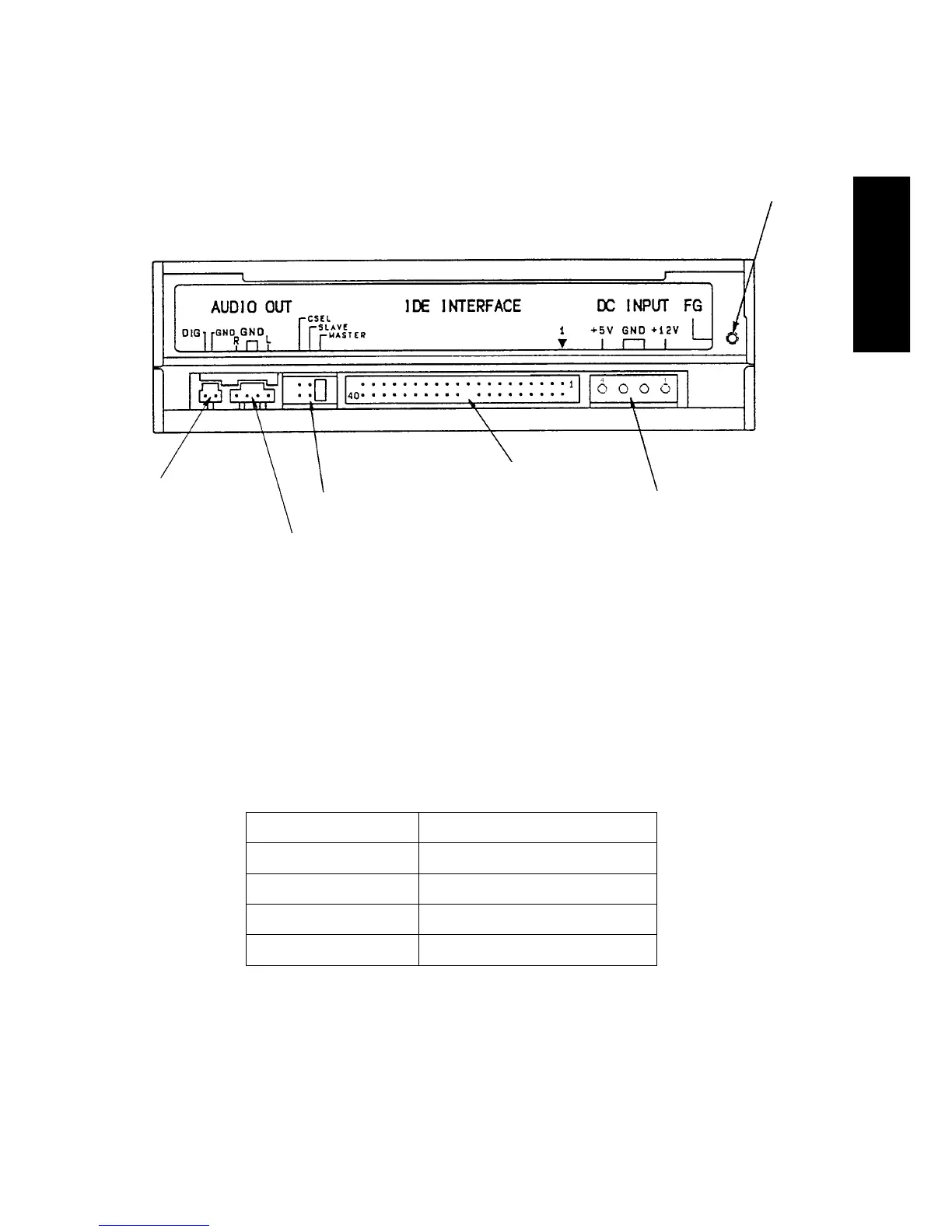

4.2 Rear panel
➀ Analog Audio output connector
For stereo audio signal output.
When driving external speakers, connect this connector to the audio
input connector on the Sound Card or Interface Card.
Note:
Mating connectors: Molex 53103-0450 or equivalent.
Connector No. Audio signal
1 L ch Signal
2 L ch Ground
3 R ch Ground
4 R ch Signal
➁ Interface connector
Connect to the IDE interface card using the 40-pin flat cable.
Cable-side mating connectors: 5320-40AGS1 Molex, or equivalent.
➃ Digital
Audio
output
➂ Power
connector
➁ Interface
Connector
➄ Strap switch
➀ Analog audio output connector
Frame ground
tapped hole
M3
