34
ENGLISH

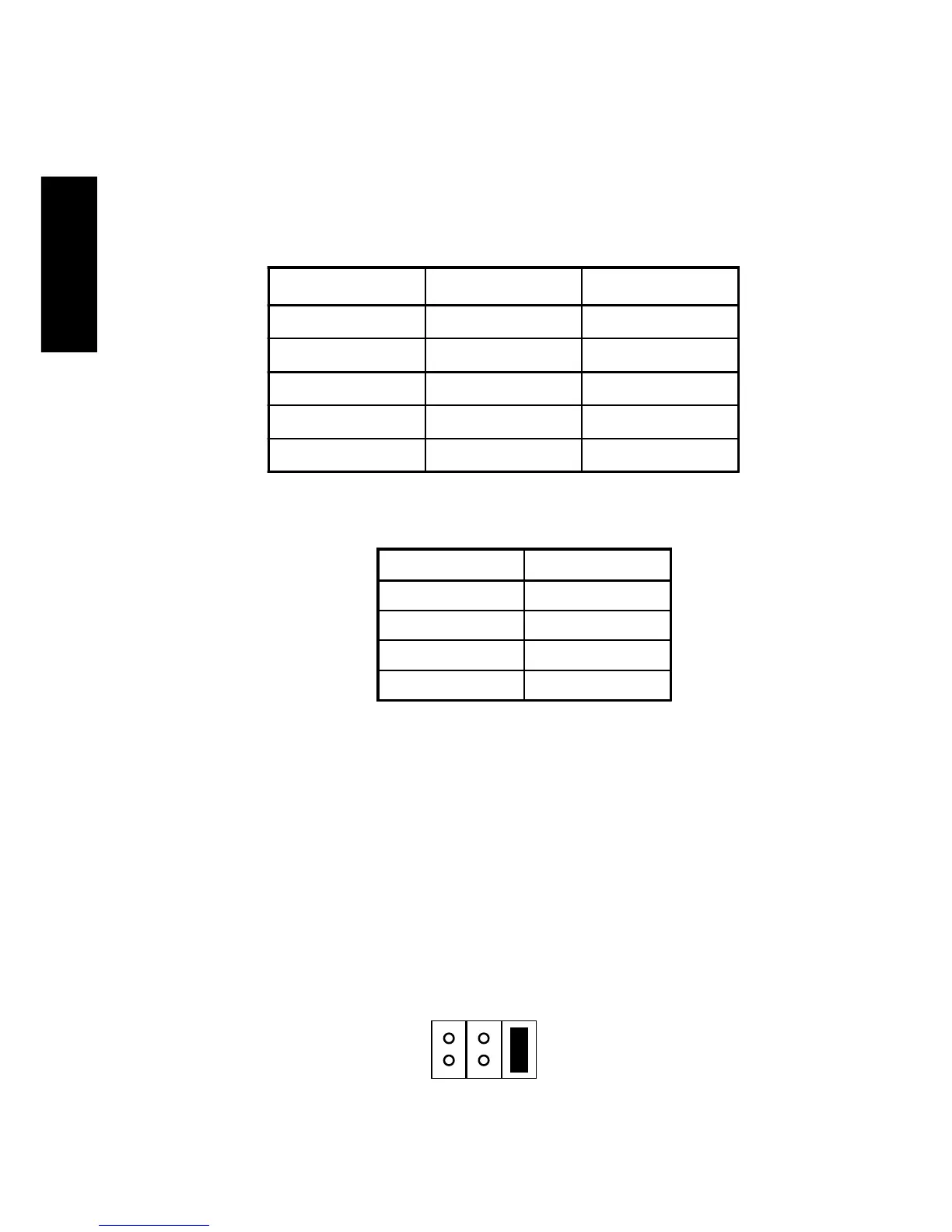

4. Controls and Functions
➂ Power connector
Connect to the +5 VDC and +12 VDC power source.
Cable-side mating housing: 8981-4P Molex
Cable-side mating terminal: 8980-3L Molex
Current consumption
Power interface connector pin number
➃ Digital Audio output
The digital audio output may be used to supply the digital audio
signal to the inputs of other digital devices.
➄ CSEL bypass (S1), Slave (S2), Master (S3) straps switch
The strap (jumper) is factory-preset as shown below:
Pin No. Power
1+12VDC
20V
30V
4+5VDC
12V 5V
Standby 10mA 300mA
Read 1.0A 1.4A
Start 1.7A 1.2A
Seek 2.3A 1.4A
Write 500mA 900mA
C
S
E
L
S
L
A
V
E
M
A
S
T
E
R
S1 S2 S3
