Teac CX-400 - MUTING SWITCH; MOTOR SWITCH; PAUSE SWITCH; REWIND SWITCH

CX-400 | |
4-8
MUTING
SWITCH
1.
When
the
PLAY
key
is
pressed
then
locked,
the
muting
switch
should
be
pushed
positively.
;
2:
When
in
the
STOP
mode,
the
switch
should
return
to
the
original
released
condition.
4-9
MOTOR
SWITCH
1.
Adjust
the
switch
position
so
that
in
the
STOP
condition
the
movable
contact
of
the
switch
makes
contact
with
the
brake
plate
as
shown.
2.
After
the
power
on
the
deck
is
switched
on,
when
the
PLAY,
F.F.,
or
REW
keys
are
depressed,
the
motor
switch
should
operate
to
start
motor
rotation.
3,
When
in
the
STOP
condition,
the
switch
should
operate
to
stop
motor
rotation.
4-10 PAUSE SWITCH
1.
Adjust
the
switch
position
to
meet
the
following
require-
ments.
2.
When
the
PAUSE
key
is
fully
depressed
by
hand,
distance
PAUSE SWITCH ADJUSTMENT
When PAUSE key is fully pushed
pause lever
than 0.5mm
When PAUSE key is locked |
as about imm
- Ro 4
LOCK PLATE RELEASE SOLENOID ADJUSTMENT
adjusting screws
@
—__— solenoid
about 7mm
flywheel :
F.F., PLAY, REW
lat
tock plate or REC key

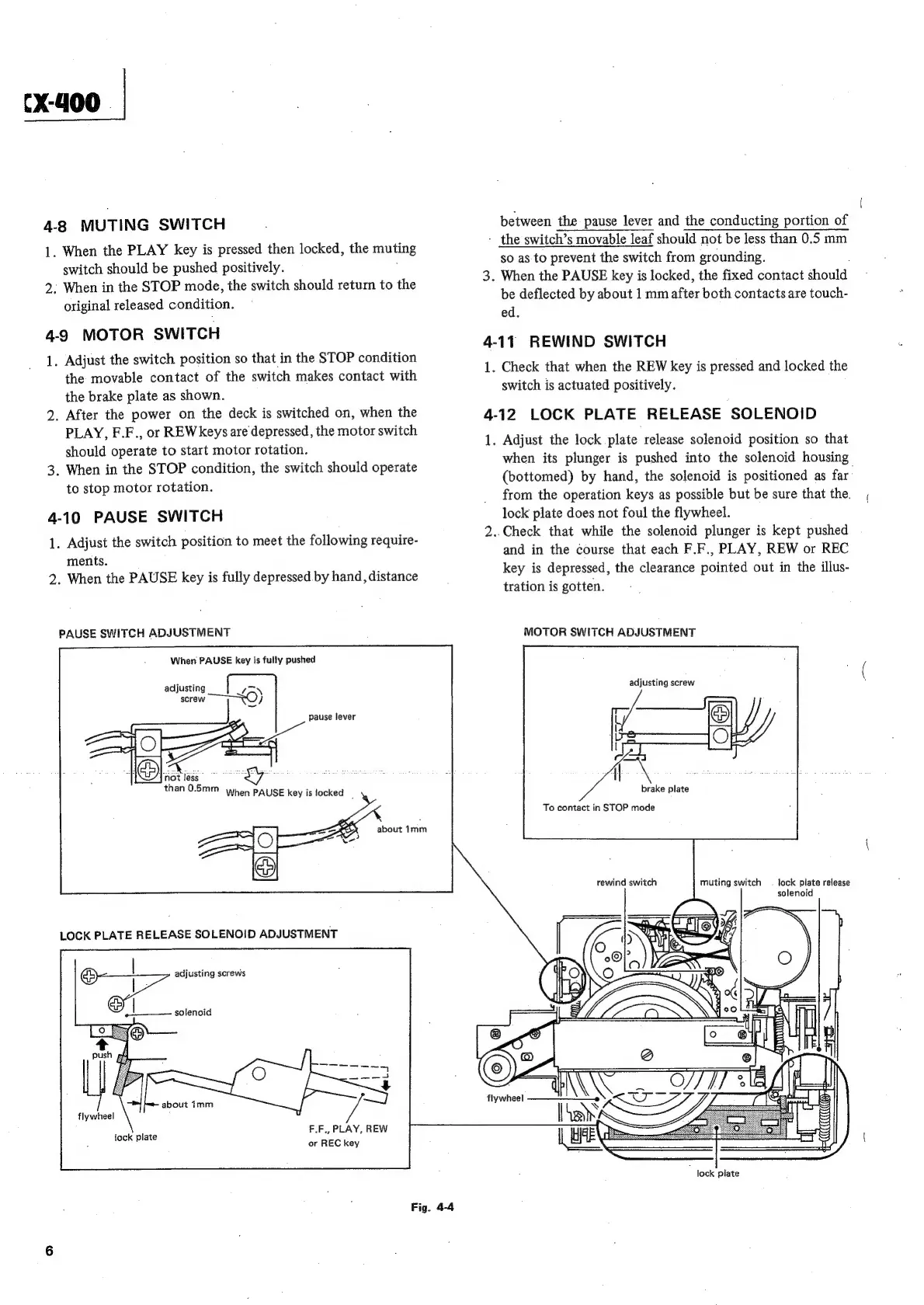

Fig. 4-4
between the pause lever and the conducting portion of
- the switch’s movable leaf should not be less than 0.5 mm
so as to prevent the switch from grounding. :
3. When the PAUSE key is locked, the fixed contact should
be deflected by about 1 mm after both contacts are touch-
ed.
4-11 REWIND SWITCH
1. Check that when the REW key is pressed and locked the
switch is actuated positively.
4-12 LOCK PLATE RELEASE SOLENOID
1. Adjust the lock plate release solenoid position so that
when its plunger is pushed into the solenoid housing
(bottomed) by hand, the solenoid is positioned as far
from the operation keys as possible but be sure that the.
lock plate does not foul the flywheel.
2..Check that while the solenoid plunger is kept pushed
and in the course that each F.F., PLAY, REW or REC
key is depressed, the clearance pointed out in the illus-
tration is gotten.
MOTOR SWITCH ADJUSTMENT
adjusting screw
brake plate
To contact in STOP mode
rewind switch muting switch —_ lock plate release
solenoid
” lock plate
