Teac Esoteric R-9000 - Exploded View 6 (V-9000)

9000

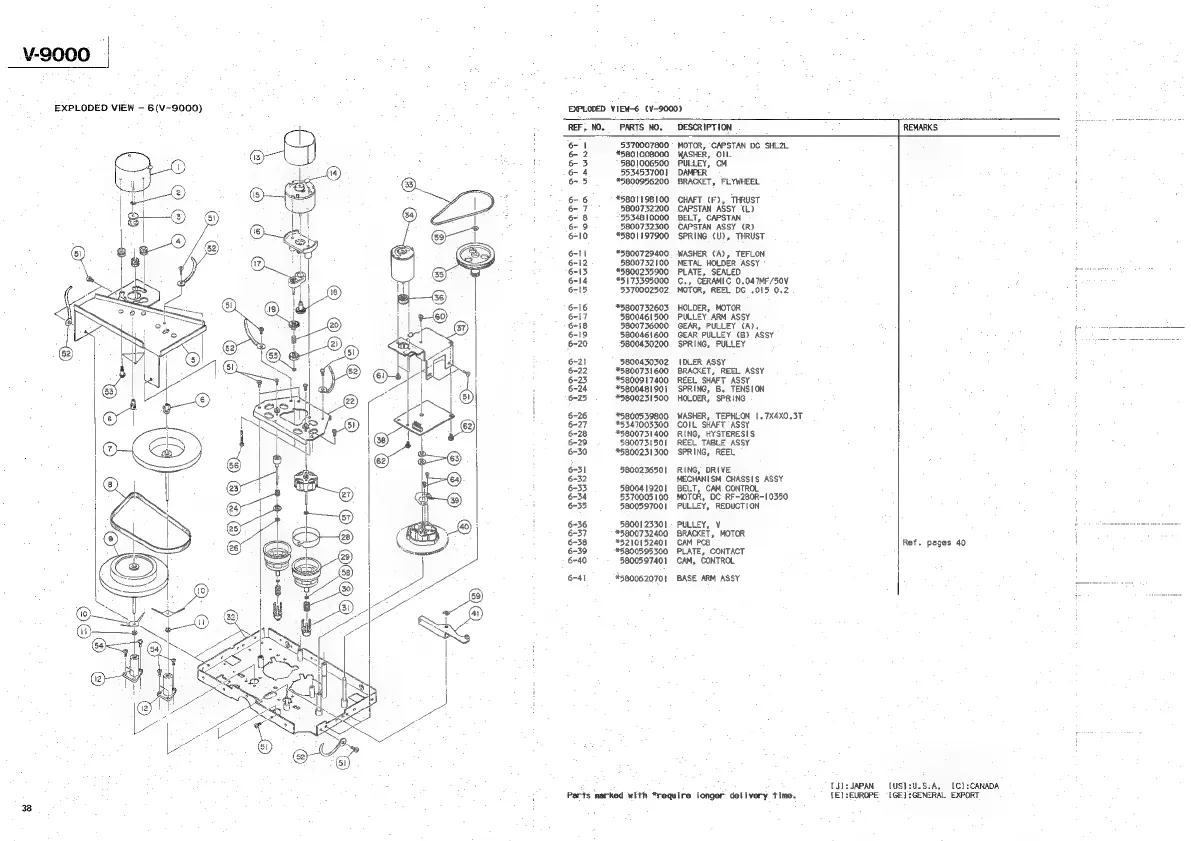

EXPLODED VIEW - 6(V-39000)
38
EXPLODED VIEW-6 (¥-9000)
REF. NO. PARTS NO. DESCRIPTION REMARKS
6-1 5370007800 MOTOR, CAPSTAN DC SHL2L
6-2 5801008000. WASHER, OIL
6- 3 5801006500 PULLEY, CM
6-4 5534537001 DAMPER
6-5 *5800956200 BRACKET, FLYWHEEL
6-6 *5801198100 CHAFT (F), THRUST
6-7 5800732200 CAPSTAN ASSY (L)
6-8 5534810000 BELT, CAPSTAN
6-9 5800732300 CAPSTAN ASSY (R)
6-10 *5801197900 SPRING (U), THRUST
6-1 *5800729400. WASHER (A), TEFLON
6-12 5800732100 METAL HOLDER ASSY
6-13 *5800235900 PLATE, SEALED
6-14 *5173395000 C., CERAMIC 0.047MF/50V
6-15 5370002502 MOTOR, REEL DC .015 0.2
6-16 *5800732603 HOLDER, MOTOR
6-17 5800461500 PULLEY ARM ASSY
6-18 5800736000 GEAR, PULLEY (A).
6-19 5800461600 GEAR PULLEY (B) ASSY
6-20 5800430200 SPRING, PULLEY
6-21 5800430302 IDLER ASSY
6-22 *5800731600 BRACKET, REEL ASSY
6-23 *5800917400 REEL SHAFT ASSY
6-24 *580048190} SPRING, B. TENSION
6-25 *5800231500 HOLOER, SPRING
6-26 *5800539800 WASHER, TEPHLON |. 7X4X0.3T
6-27 *5347003300 COIL SHAFT ASSY
6-28 *5800731400 RING, HYSTERESIS
6-29 5800731501 REEL TABLE ASSY
6-30 *5800231300 SPRING, REEL
6-31 5800236501 RING, DRIVE
6-32 MECHANISM CHASSIS ASSY
6-33 5800419201 BELT, CAM. CONTROL
6-34 5370005100 MOTOR, DC RF-280R-10350
6-35 5800597001 PULLEY, REDUCTION
6-36 5800123301 PULLEY, V
6-37 *5800732400 BRACKET, MOTOR
6-38 *5210152401 CAM PCB Ref. pages 40
6-39 *5800595300 PLATE, CONTACT
6-40 5800597401 CAM, CONTROL
6-41 *5800620701 BASE ARM ASSY
ie 3 [J}:JAPAN fUS]:U.S.A. [C]:CANADA
Parts marked with *require longer delivery time. {E}:EUROPE ~{GE]:GENERAL EXPORT
