Connection
CAUTION
< Switch off (standby) the power before making connections.
< Read the instructions of each component you intend to use with this unit.
< Be sure to insert each plug securely. To prevent hum and noise, do not bundle the connection cords .

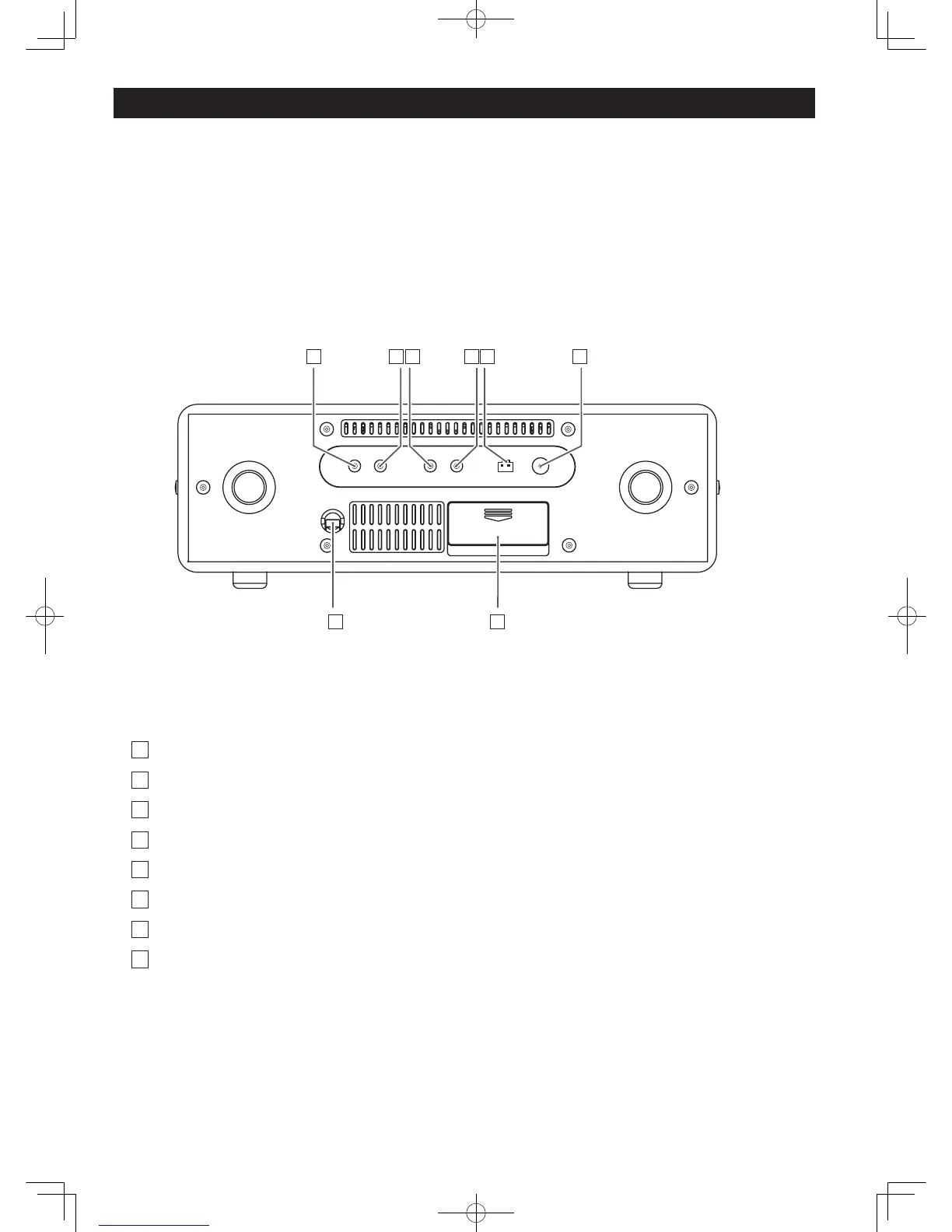

A
AC power cord
B
Phones jack
C
Line out jack
D
AUX IN jack
E
Video out jack
F
AM loop antenna connector
G
FM antenna jack
H
Battery compartment
PHONES
LINE OUT
AUX IN VIDEO OUT
AM-ANTENNA-FM 75Ω
B
HA
GFEDC
5
