Unit Overview

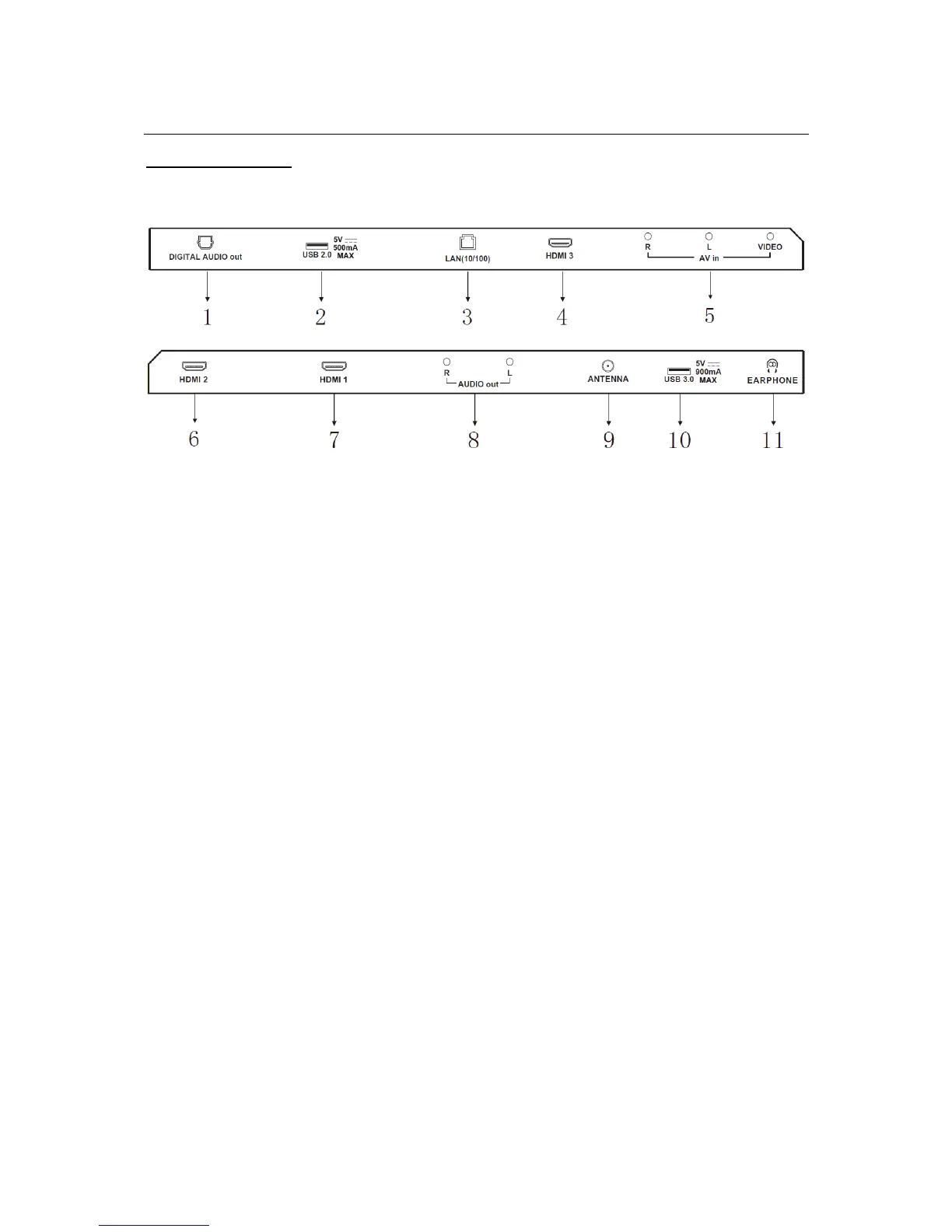

Cable Connections
1. DIGITAL AUDIO out – high quality digital audio. Connect to compatible sound systems
2. USB2.0 – connect to USB hard drives/flash drives for recording and media playback
3. LAN – for wired network connection
4. HDMI 3 – high quality video/audio input
5. AV IN – RCA audio/video input – connect to a set top box/DVD player
6. HDMI 2 – high quality video/audio input
7. HDMI 1 – high quality video/audio input
8. AUDIO out – stereo (left/right) audio output. Connect to compatible sound systems
9. ANTENNA – connect to your antenna point with an antenna cable to receive TV
10. USB3.0 – connect to USB hard drives/flash drives for recording and media playback
11. EARPHONE – connect earphones/headphones for private listening
