Teac PL-D2000 - FM, am Tracking Voltage Adjustments; AM RF Adjustment

−6−

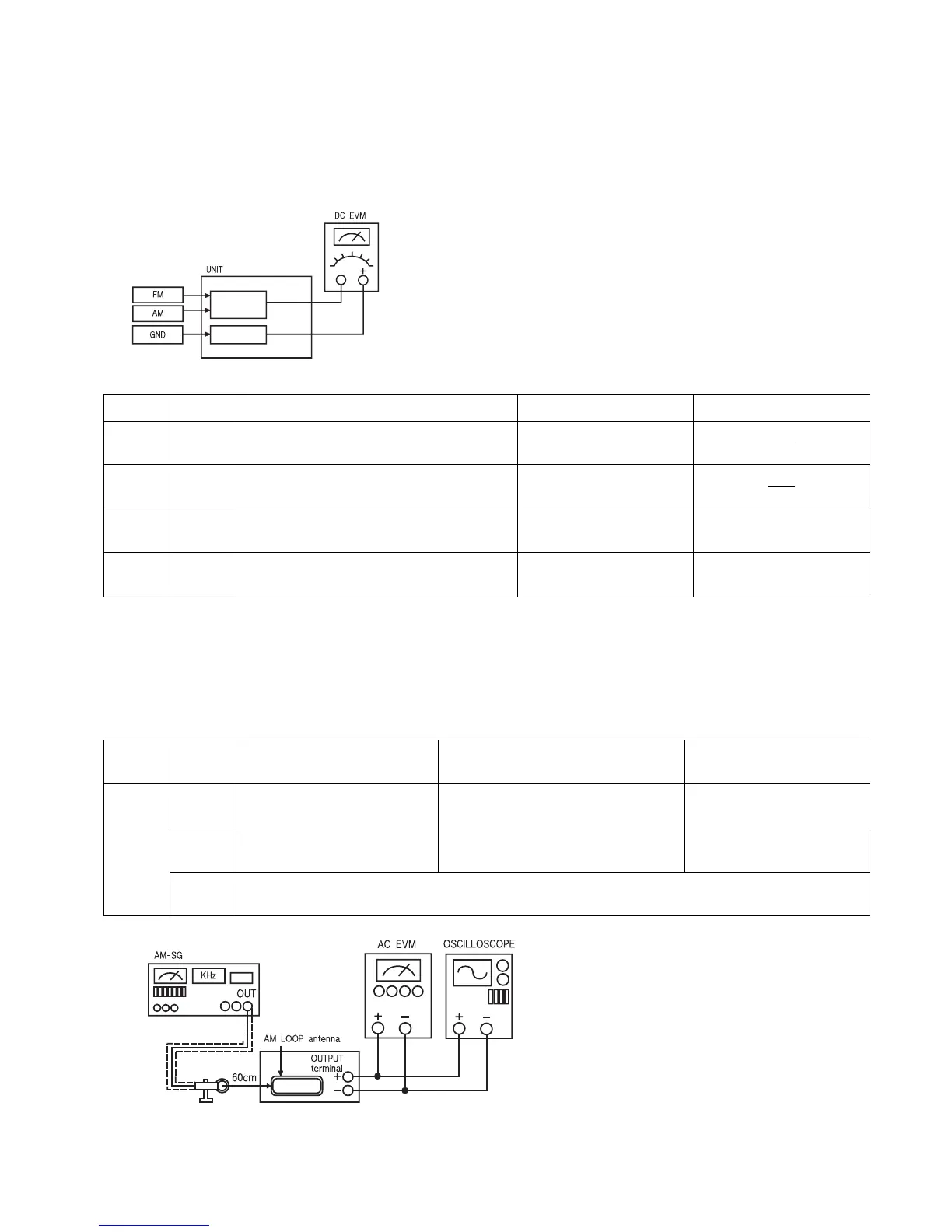

1. FM, AM TRACKING VOLTAGE ADJUSTMENTS FM/AMトラッキング電圧調整
(FM, AM) DC VOLTMETER ........................... CONNECT TO TEST POINT R109 and GND
NO. Band Frequency Adjust for Adjustment
1FM
87.50MHz [EUR,US]
76.00MHz [J]
1.5V
2
AM
522kHz [EUR,J]
530kHz [US]
1.5V T101
2. AM RF ADJUSTMENT AMRF調整
Signal Generator ........................ Connects to the AM ANT. Coil through the loop antenna.
Adjust for the indication of VTVM of the wave form of scope to be maximum.
BAND Step Frequency Adjust for Adjustment
1
612kHz [EUR,J]
610kHz [US]
Maximum sensitivity L101
2
1404kHz [EUR,J]
1400kHz [US]
Maximum sensitivity TC103
3 Repeat steps 1 and 2 several times.
AM
108.00MHz [EUR,US]
90.00MHz [J]
8.4V
8.3V TC102
FM
AM
3
4
1620kHz [EUR,J]
1710kHz [US]
R109
GND
