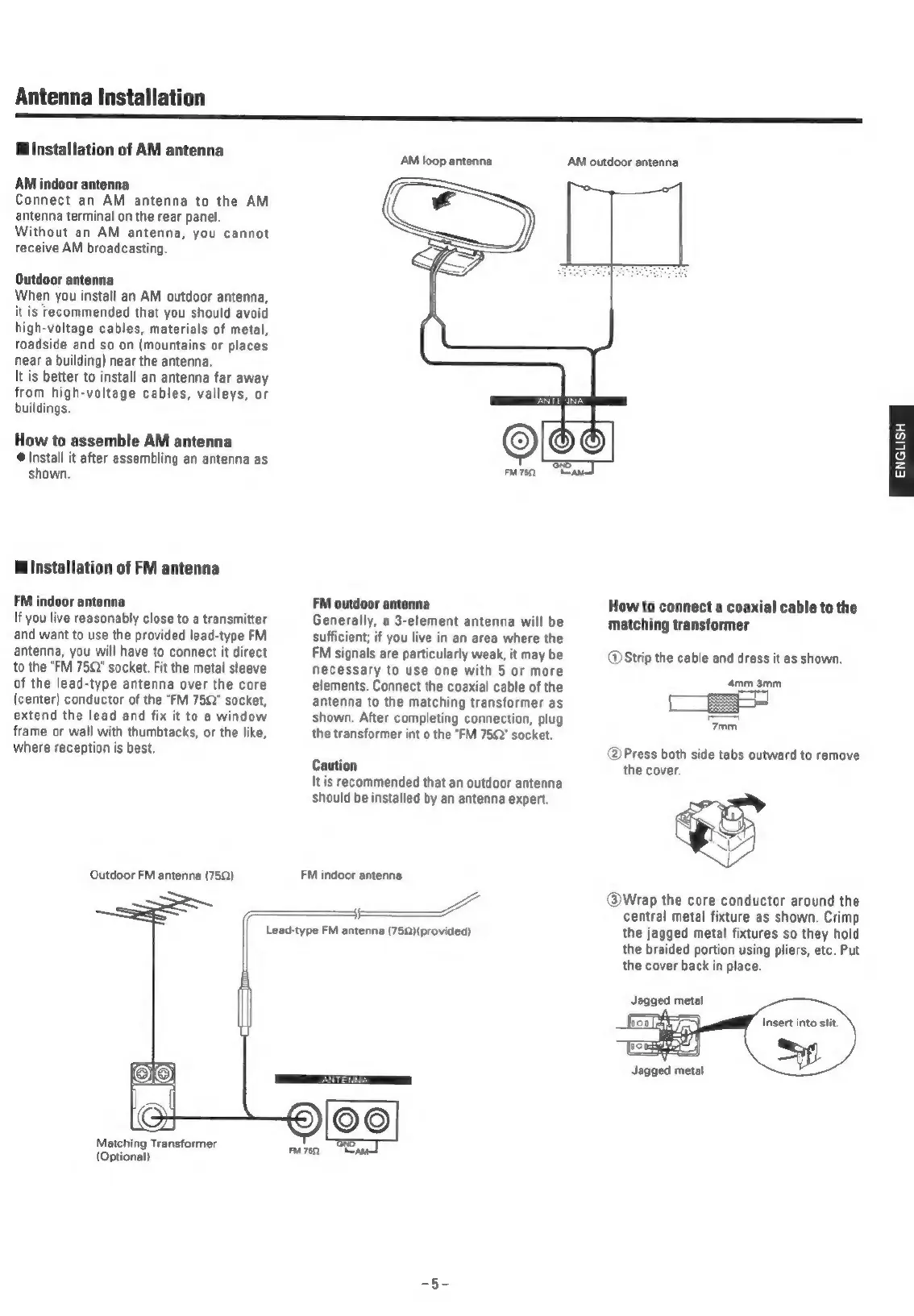

Antenna Installation
installation of AM antenna
AM indoor antenna
Connect an AM antenna to the AM
antenna terminal on the rear panel.
Without an AM antenna, you cannot
receive AM broadcasting.
Outdoor antenna
When you install an AM outdoor antenna,
it is recommended that you should avoid
high-voltage cables, materials of metal,
roadside and so on (mountains or places
near a building) near the antenna.
It is better to install an antenna far away
from high-voltage cables, valleys, or
buildings.
How to assemble AM antenna
@ Install it after assembling an antenna as
shown.
Wlnstallation of FM antenna
FM indoor antenna
If you live reasonably close to a transmitter
and want to use the provided lead-type FM
antenna, you will have to connect it direct
to the "FM 7502" socket. Fit the metal sleeve
of the lead-type antenna over the core
(center) conductor of the "FM 752" socket,
extend the lead and fix it to a window
frame or wall with thumbtacks, or the like,
where reception is best.
Outdoor FM antenna (750)
Matching Transformer
(Optional)
AM loop antenna
‘AM outdoor antenna
FM outdoor antenna
Generally, a 3-element antenna will be
sufficient; if you live in an area where the
FM signals are particularly weak, it may be
necessary to use one with 5 or more
elements. Connect the coaxial cable of the
antenna to the matching transformer as
shown. After completing connection, plug
the transformer int 0 the "FM 75" socket.
Caution
Itis recommended that an outdoor antenna
should be installed by an antenna expert.
FM indoor antenna
—_*
Lead-type FM antenna (750)(provided)
How to connect a coaxial cable to the
matching transformer
@ Strip the cable and dress it as shown.
4mm 3mm
—
7mm
2) Press both side tabs outward to remove
the cover.
@Wrap the core conductor around the
central metal fixture as shown. Crimp
the jagged metal fixtures so they hold
the braided portion using pliers, etc. Put
the cover back in place.
Jagged metal
Insert into slit.
Si.
Jagged metal
