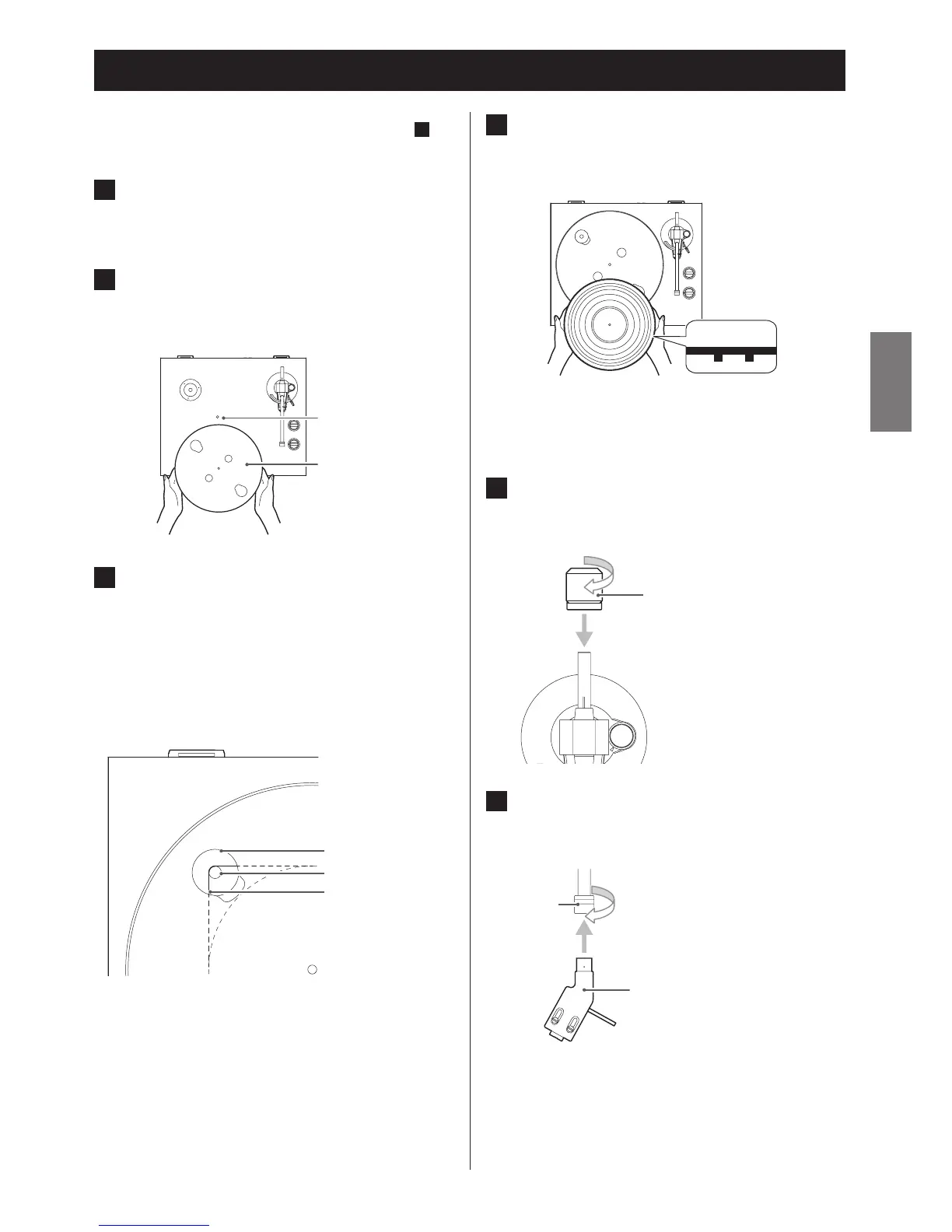

Preparing the record player
Keep the unit in standby while setting it up (
E
on
pages 10 and 11).
1 Place it on a at surface.
Since the heights of this unit's feet cannot be
adjusted, be sure to place it on a flat surface.
2 Install the turntable.
Align the turntable with the center shaft and install
it.
Center shaft
Turntable
3 Loop the belt around the motor pulley.
Use a finger to pull the rubber belt that is wrapped
around the sub-platter through the round opening
and loop it around the motor pulley.
o Be careful not to let the rubber become twisted.
o Rotate the turntable several times to make sure
that it is secure.
Motor pulley
Rubber belt
Round opening
4 Place the rubber mat.
Place the protective rubber mat that is included
with the turntable on it before use.
Top
o The rubber mat has a top and a bottom. As
shown in the illustration, the side with the ridged
concentric circles should be placed down.
5 Install the counterweight.
Place the counterweight over the end of the tone
arm and turn it clockwise to tighten it.
Counterweight
6 Install the headshell.
Insert the headshell on the end of the tone arm and
turn the nut to secure it in place.
Headshell
Nut
To Next Page
