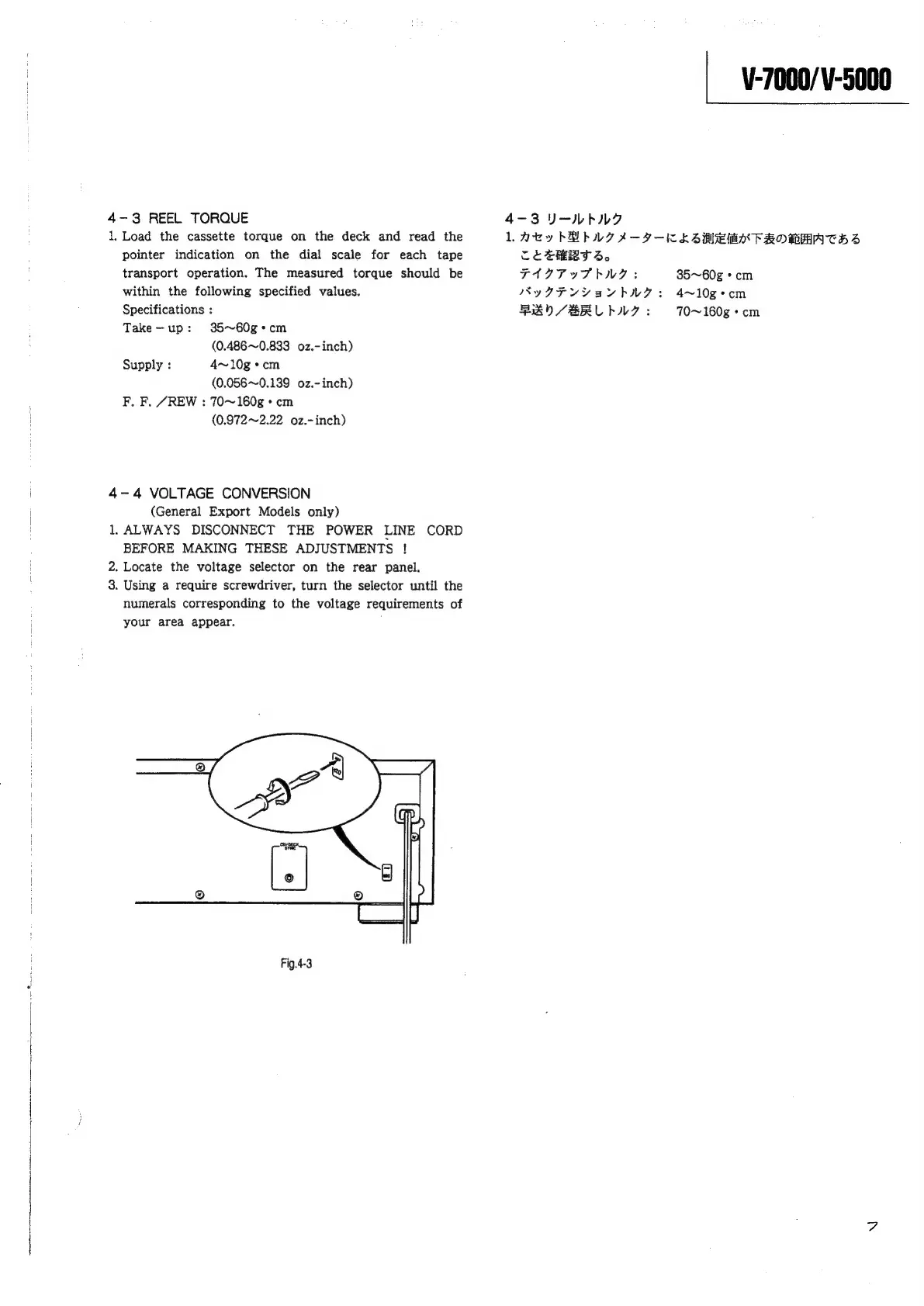

4-3 REEL TORQUE 4-3 V—JIDEWD
1. Load the cassette torque on the deck and read the LAty PARI A-F-K ESE FROMAN CHS
pointer indication on the dial scale for each tape CESHBTS.
transport operation. The measured torque should be FAVT YT bhN7: 35~60g * cm
within
the
following
specified
values.
WyIFYVYavbhny:
4~10g+cm
Specifications : BRD /BRL IV? : 70~160g * cm
Take~up: 35~60g°*cm
(0.486 ~0.833 oz.-inch)
Supply : 4~10g*cm
(0.066~0.139 oz.-inch)
F. F. /REW : 70~160g * cm
(0.972~2.22 oz.-inch)
4-4 VOLTAGE CONVERSION
(General Export Models only)
1, ALWAYS DISCONNECT THE POWER LINE CORD
BEFORE MAKING THESE ADJUSTMENTS !
2. Locate the voltage selector on the rear panel.
3. Using a require screwdriver, turn the selector until the
numerals corresponding to the voltage requirements of
your area appear.
Fig. 4-3
