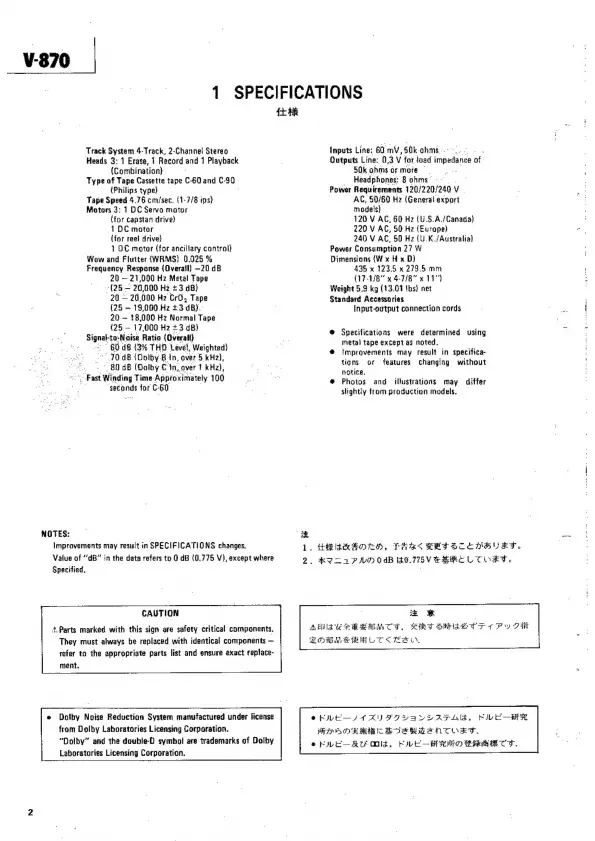

Teac V-870 - Specifications

V-870
1 SPECIFICATIONS
{tte
Track System 4-Track, 2-Channet Stereo
Heads 3: 1 Erase, t Record and 1 Playback
(Combination)
Type of Tape Cassette tape C-60 and C- 30
{Philips type)
Tape Speed 4.76 cm/sec. (1-7/8 ips)
Motors 3: 1 DC Servo motor
{for capstan drive}
1 DE motor
(for reel drive}
1 OC motor (for ancillary control}
Wow and Flutter (WRMS) 0.025 %
Frequency Response (Overail) —20 dB
20 — 21,000 Hz Metal Tape
“(25 -— 20,000 Hz +3 d8)
20 — 20,000 Hz CrO. Tape
(25 — 19,000.Hz +3 dB).
20 ~ 18,000 Hz Normal Tape
(25 — 17,000 Hz +3 dB)
iat etch Ratio {Overall}
80 d8 (3% THD Level, Weighted)
"70 dB (Solby Bin, aver § kHz),
80 dB (Dolby C1 ,over 1 kHz),
ait Fast Winding Time. Approximately 100
, ‘seconds for C- 60
NOTES:
Improvements may result in SPECIFICATIONS changes,
Value of “dB” in the data refers to 0 dB {0,775 V), except where
Specified.
CAUTION
4.Parts marked with this sign are safety critical components,
They must always be replaced with identical components —
refer to the appropriate parts list and ensure exact replace-
ment.
Dojhy Noise Reduction System manufactured under license
from Dolby Laboratories Licensing Corporation.
“Dolby” and the deuble-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
Inputs Line: 60 mV, 50k ohms...
Outputs Line: 0,3 Vv for load mehr of
50k ohms or more Ree
Headphones: 8 ohms”. ~
Power Requirements 120/220/240 vi
AC, S0/60 Hz (General export
models)
120 V AC, 60 Hz (U.S.A./Canada)
220 V AC, 50 Hz (Europe)
240 V AC, 50 Hz (U.K./Australia)
Power Consumption 27 W
Dimensions (Wx H x D)
435 x 123.5 x 279.5 mm
(17-7/8" x 4-7/8" x 11"
Weight 5.9 kg ($3.01 {bs) net
Standard Accessories
Input-odtput connection cords
@ Specifications were determined using
metal tape except as noted.
@ tmprovements may result in specifica-
tions or features changing without
notice.
@ Photos and illustrations may differ
slightly from production models.
Ee
, LIAR OEO, FHEK PETSCEMHUET.
_ AVI PIO 0 4B S0.775V FHKE LTVETF.
=
AFUISHPBRBACTS, RT SHH TT 7 Py Ot
LOA Ie BAL TS Ea.
®RILE—/ f KU PF IVEY TATAéAls, PIVE—MR
PPAR RBC BHOSRBENTONE.
®PILE—-RU Old, KILC RAO SRR,
