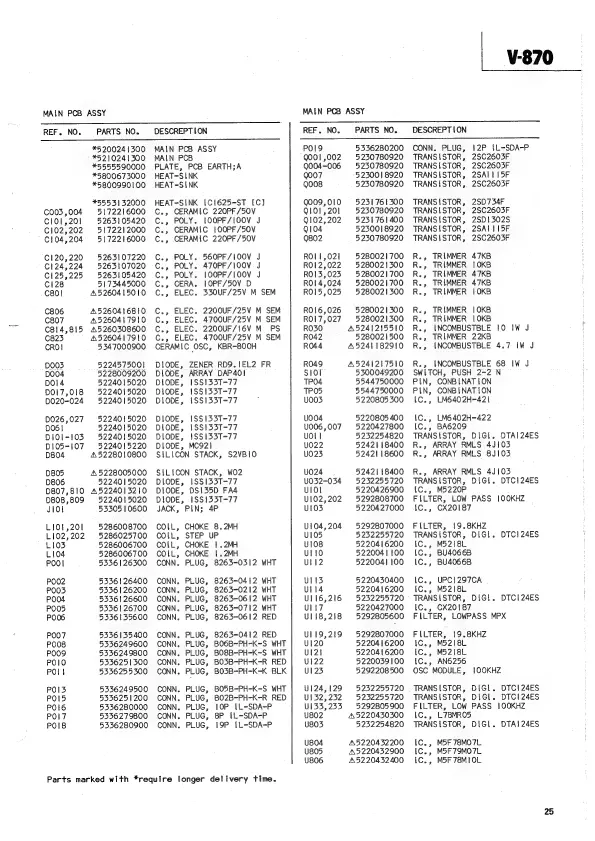

Teac V-870 - Page 25

MAIN PCB ASSY
REF. NO. PARTS NO. DESCREPTION
*5200241300 MALN PCB ASSY
-*5210241300 MAIN PCB
*5555590000 PLATE, PCB EARTH;A
*5800673000 HEAT-SINK
*5800990100 HEAT-SINK
¥5553132000 HEAT-SINK 1C1625-ST [C]
C003,004 5172216000 C., CERAMIC 220PF/50V
C101,20! 5263105420 C., POLY. I|OOPF/IO0V J
C102,202 5172212000 C., CERAMIC |00PF/50V
104,204: 5172216000 C., CERAMIC 220PF/50V
C120,220 5263107220 C., POLY. 560PF/100V J
C124,224 5263107020 C., POLY. 470PF/100V. J
C125,225 5263105420 C., POLY. |O0PF/100V J
C128 5173445000 C., CERA. |OPF/50V D
C801 A5260415010 C., ELEC. 330UF/25V M SEM
C806 A5260416810 C., ELEC. 2200UF/25V M SEM
C807 45260417910 C., ELEC. 4700UF/25V M SEM
C814,815 A5260308600 C., ELEC. 2200UF/16V M PS
C823 A5260417910 C., ELEC. 4700UF/25V M SEM
CRO} 5347000900 CERAMIC OSC, KBR-800H
D003 5224575001 DIODE, ZENER RD9.1IEL2 FR
D004 5228009200 DIODE, ARRAY DAP4O!
DOI4 5224015020 DIODE, 1SSI33T-77
DOI7,018 5224015020 DIODE, 1$$133T-77
DO020-024 5224015020 DIODE, 1S$133T-77
D026,027 5224015020 DIODE, 1SS133T-77
DO6 | 5224015020 DIODE, 1SS133T-77
DIOl-103 5224015020 DIODE, !SSI33T-77
DIO5-107 5224015220 DIODE, MC92I
D804 45228010800 SILICON STACK, S2VBI0
D805 A5228005000 SILICON STACK, WO2
D806 5224015020 DIODE, 1SSI33T-77
D807,810 45224013210 DIODE, DS135D FA4
D808,809 5224015020 DIODE, 1$$133T-77
J104 5330510600 JACK, PIN; 4P
L101,201 5286008700 COIL, CHOKE 8.2MH
L102,202 5286025700 COIL, STEP UP
L103 5286006700 COIL, CHOKE |.2MH
L104 5286006700 COIL, CHOKE |.2MH
POO! 5336126300 CONN. PLUG, 8263-0312 WHT
PO02 5336126400 CONN. PLUG, 8263-0412 WHT
POO3 5336126200 CONN. PLUG, 8263-0212 WHT
POO4 5336126600 CONN. PLUG, 8263-0612 WHT
PO05 5336126700 CONN. PLUG, 8263-0712 WHT
P06 5336135600 CONN. PLUG, 8263-0612 RED
P007 5336135400 CONN. PLUG, 8263-0412 RED
POO8 5336249600 CONN. PLUG, BO6B-PH-K-S WHT
PO09 5336249800 CONN. PLUG, BO8B-PH-K-S WHT
POLO 5336251300 CONN. PLUG, BO3B-PH-K-R RED
POL! 5336255300 CONN. PLUG, BO3B-PH-K-K BLK
POI3 5336249500 CONN. PLUG, BO5B-PH-K-S WHT
POI5 5336251200 CONN. PLUG, BO2B-PH-K-R RED
POI6 5336280000 CONN. PLUG, IOP {L-SDA-P
POI7 5336279800 CONN. PLUG, 8P IL-SDA-P
POIB 5336280900 CONN. PLUG, I9P IL-SDA-P
Parts marked with *require longer delivery time.
V-870
MAIN PCB ASSY
REF. NO. PARTS NO. DESCREPTION
POLS 5336280200 CONN. PLUG, 12P {L-SDA-P
Q001,002 5230780920 TRANSISTOR, 2SC2603F
Q004-006 5230780920 TRANSISTOR, 2SC2603F
Q007 “5230018920 TRANSISTOR, 2SAI115F
Q008 5230780920 TRANSISTOR, 2SC2603F
Q009,010 5231761300 TRANSISTOR, 2SD734F
QI01,201 5230780920 TRANSISTOR, 2SC2603F
Q102,202 5231761400 TRANSISTOR, 2SD1302S
Q104 5230018920 TRANSISTOR, 2SAI115F
Q802 5230780920 TRANSISTOR, 2SC2603F
ROII,021 5280021700 R., TRIMMER 47KB
ROI2,022 528002!300 R., TRIMMER IOKB
ROI3,023 5280021700 R., TRIMMER 47KB
RO14,024 5280021700 R., TRIMMER 47KB
ROI5,025 5280021300 R., TRIMMER |OKB
RO16,026 5280021300 R., TRIMMER !OKB
RO!7,027 5280021300 R., TRIMMER 1OKB
R030 A5241215510 R., INCOMBUSTBLE 10 IW J
R042 5280021500 R., TRIMMER 22KB
R044 A5241182910 R., INCOMBUSTBLE 4.7 IW J
R049 A5241217510 R., LNCOMBUSTBLE 68 IW J
S101 5300049200 SWITCH, PUSH 2-2 N
TP04 5544750000 PIN, CONBINATION
TPOS 5544750000 PIN, CONBINATION
UO003 5220805300 1C., LM6402H-42|
U004 5220805400 [C., LM6402H-422
U006,007 5220427800 IC., BA6209
UOl| 5232254820 TRANSISTOR, DIGI. DTAI24ES
U022 5242118400 R., ARRAY RMLS 4J103
U023 5242118600 R., ARRAY RMLS 8J103
U024 5242118400 R., ARRAY RMLS 4J103
U032-034 5232255720 TRANSISTOR, DIGI. DTCI24ES
UIO1 5220426900 {C., M5220P
UI02,202 5292808700 FILTER, LOW PASS IOOKHZ
UILO3 5220427000 1C., CX20187
U104,204 5292807000 FILTER, 19.8KHZ
U105 5232255720 TRANSISTOR, DIGI. DTCi24ES
U108 5220416200 {C., M5218L
UL10 5220041100 [C., BU4066B
UlI2 5220041100 {C., BU4066B
UII3 5220430400 [C., UPCI297CA
Ull4 5220416200 [C., M5218L
Ui16,216 5232255720 TRANSISTOR, DIGL. DTCI24ES
ULI7 5220427000 1C., CX20187
UI18,218 5292805600 FILTER, LOWPASS MPX
UI19,219 5292807000 FILTER, 19.8KHZ
U120 5220416200 {C., M5218L
UI2) 5220416200 [C., M5218L
UI122 5220039100 {C., AN6256
UI23 5292208500 OSC MODULE, IOOKHZ
U124,129 5232255720 TRANSISTOR, DIGL. DTCI24ES
U132,232 5232255720 TRANSISTOR, DIGL. DTCI24ES
UI33,233 5292805900 FILTER, LOW PASS 1OOKHZ
U802 45220430300 IC., L78MRO5
U803 5232254820 TRANSISTOR, DIGI. DTAI24ES
U804 45220432200 1iC., MSF 78MO7L
U805 45220432900 1C., MSF79MO7L
45220432400 1C., MSF 78MIOL
U806
25
