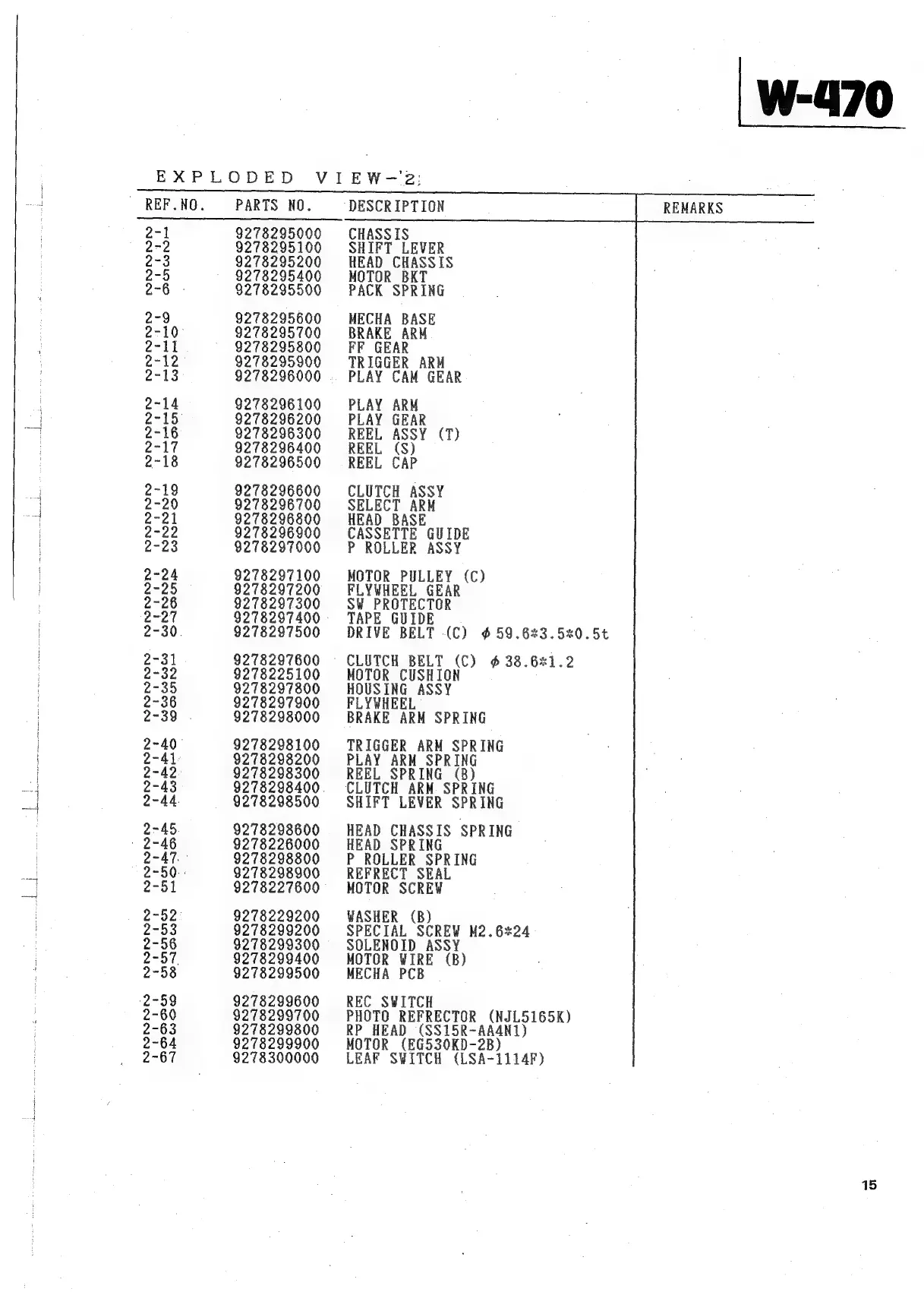

Teac W-470 - Page 15

EXPLODED
VIEW-'2:
W-470
PARTS NO.
= 9278295000 CHASSIS
2 9278295100 SHIFT LEVER
3 9278295200 HEAD CHASSIS
a 9278295400 MOTOR BKT
9
‘DESCRIPTION
9278295500 PACK SPRING
9278295600 MECHA BASE
9278295700 BRAKE ARM
9278295800 FF GEAR
9278295900 TRIGGER ARM
9278296000 _ PLAY CAM GEAR
9278296100 PLAY ARM
9278296200 PLAY GEAR
9278296300 REEL ASSY (T)
9278296400 REEL (S)
9278296500 REEL CAP
9278296600 CLUTCH ASSY
9278296700 SELECT ARM
9278296800 HEAD BASE
9278296900 CASSETTE GUIDE
9278297000 P ROLLER ASSY
9278297100 MOTOR PULLEY (C)
9278297200 FLYWHEEL GEAR
9278297300 SW PROTECTOR
9278297400 TAPE GUIDE
9278297500 DRIVE BELT (C) ¢59,6%3.5%0.5t
9278297600 CLUTCH BELT (C) ¢38.6%1.2
9278225100 MOTOR CUSHION
9278297800 HOUSING ASSY
9278297900 FLYWHEEL
9278298000 BRAKE ARM SPRING
9278298100 TRIGGER ARM SPRING
9278298200 PLAY ARM SPRING
9278298300 REEL SPRING (B)
9278298400. CLUTCH ARM. SPRING
9278298500 SHIFT LEVER SPRING
9278298600 HEAD CHASSIS SPRING
9278226000 HEAD SPRING
9278298800 P ROLLER SPRING
9278298900 REFRECT SEAL
9278227600 MOTOR SCREW
9278229200 WASHER (B)
9278299200 SPECIAL SCREW M2.6%24
9278299300 SOLENOID ASSY
9278299400 MOTOR WIRE (B)
9278299500 MECHA PCB
9278299600 REC SWITCH
9278299700 PHOTO REFRECTOR (NJL5165K)
9278299800 RP HEAD (SS15R-AA4N1)
9278299900 MOTOR (EG530KD-2B)
9278300000 LEAF SWITCH (LSA-1114F)
