Teac W-470 - Exploded View

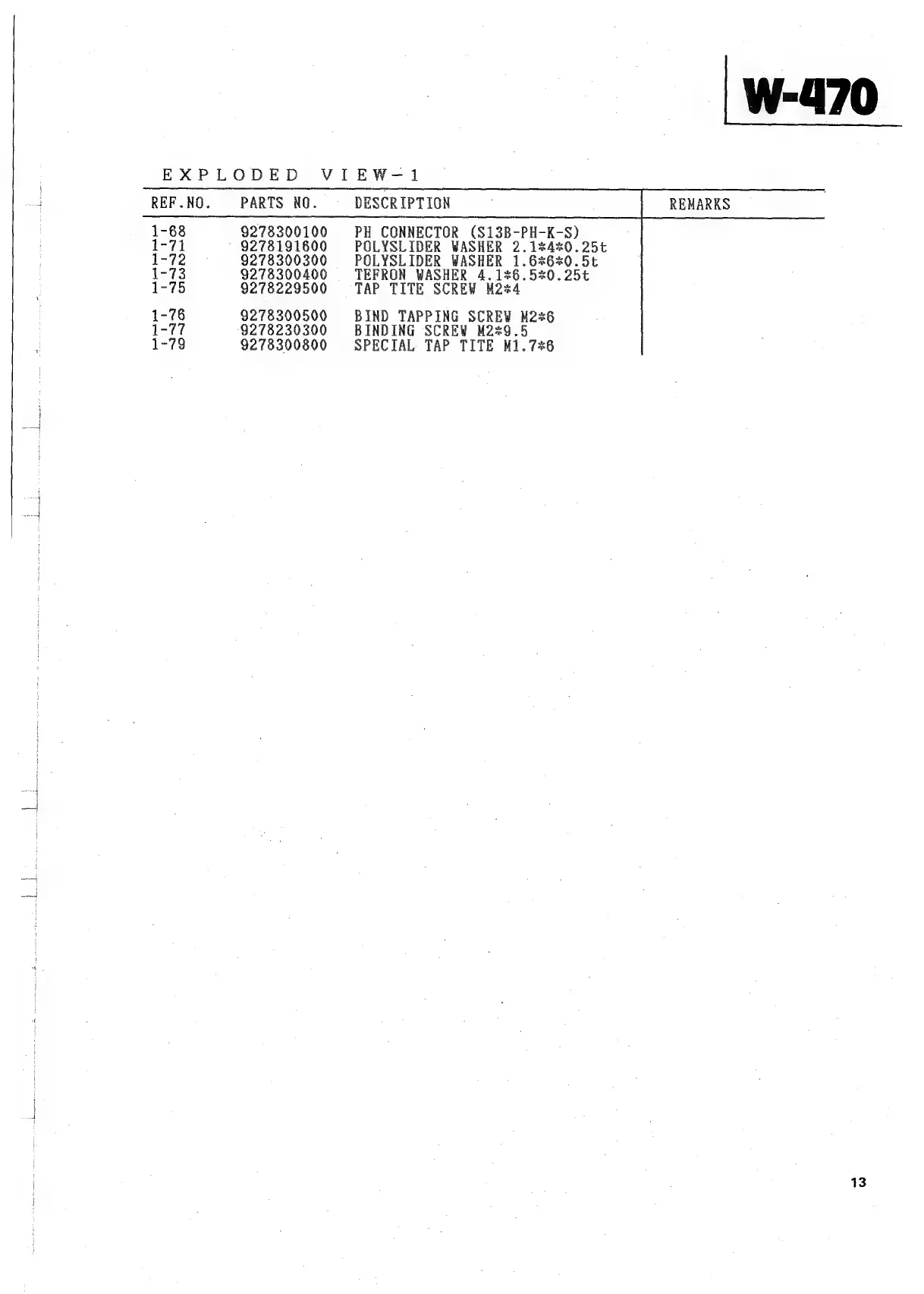

EXPLODED VIEW-1
PARTS NO. | DESCRIPTION
REMARKS
1 9278300100 PH CONNECTOR (S13B-PH-
Pehl ' 9278191600 POLYSLIDER WASHER 2.1%
be72 * 9278300300 POLYSLIDER WASHER 1.6%
1-73 9278300400 TEFRON WASHER 4.1%*6.5%
1-75 9278229500 TAP TITE SCREW M2%4
1-76 9278300500 BIND TAPPING SCREW M2%6
1-77 9278230300 BINDING SCREW M2*9.5
1-79 9278300800 SPECIAL TAP TITE M1.7%6
13
