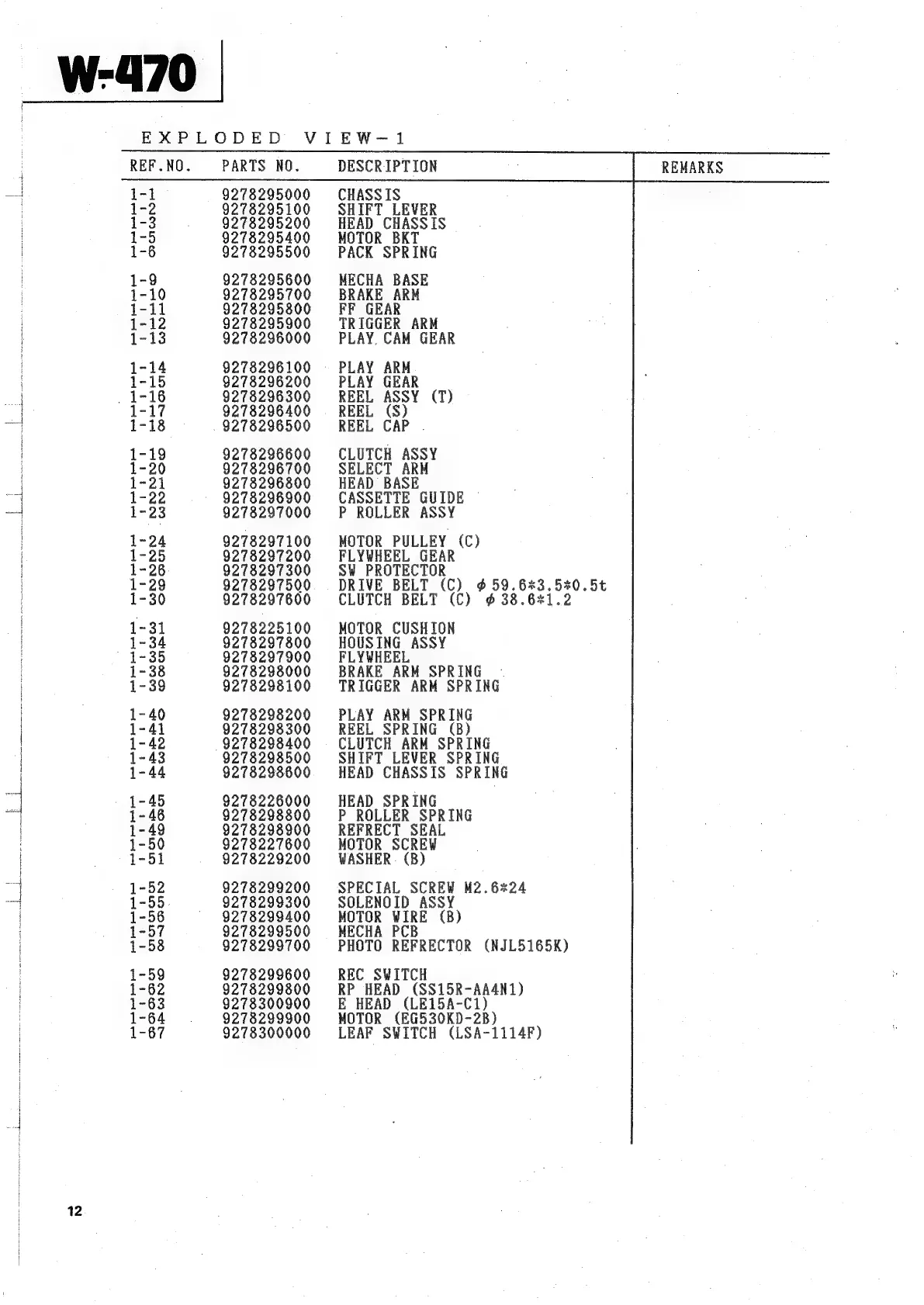

Teac W-470 - Page 12

PARTS NO.
i] 9278295000 CHASSIS
1-2 9278295100 SHIFT LEVER
1-3 9278295200 HEAD CHASSIS
1-5 9278295400 MOTOR BKT
1-6 9278295500 PACK SPRING
1-9 9278295600 MECHA BASE
1-10 9278295700 BRAKE ARM
1-1] 9278295800 FF GEAR
1-12 9278295900 TRIGGER ARM
1-13 9278296000 PLAY CAM GEAR
1-14 9278296100 - PLAY ARM
1-15 9278296200 PLAY GEAR
i _ 1-16 9278296300 REEL ASSY (T)
1-17 9278296400 REEL (8S)
1-18 . 9278296500 REEL CAP .
1-19 9278296600 CLUTCH ASSY
1-20 9278296700 SELECT ARM
1-21 9278296800 HEAD BASE
1-22 9278296900 CASSETTE GUIDE
1-23 9278297000 P ROLLER ASSY
1-24 9278297100 MOTOR PULLEY (C)
| 1-25 9278297200 FLYWHEEL GEAR
1-26 9278297300 SW PROTECTOR
1-29 9278297500 DRIVE BELT (C) ¢ 59.6%3.5%0.5t
1-30 9278297600 CLUTCH BELT (C) $ 38.6%1.2
1-31 9278225100 MOTOR CUSHION
1-34 9278297800 HOUSING ASSY
1-35 9278297900 FLYWHEEL
1-38 9278298000 BRAKE ARM SPRING .
1-39 9278298100 TRIGGER ARM SPRING
1-40 9278298200 PLAY ARM SPRING
1-41 9278298300 REEL SPRING (B)
1-42 9278298400 CLUTCH ARM SPRING
1-43 9278298500 SHIFT LEVER SPRING
1-44 9278298600 HEAD CHASSIS SPRING
1-45 9278226000 HEAD SPRING
1-46 9278298800 P ROLLER SPRING
1-49 9278298900 REFRECT SEAL
1-50 9278227600 MOTOR SCREW
1-51 9278229200 WASHER. (B)
1-52 9278299200 SPECIAL SCREW M2.6%24
1-55 9278299300 SOLENOID ASSY
1-56 9278299400 MOTOR WIRE (B)
1-57 9278299500 MECHA PCB
1-58 9278299700 PHOTO REFRECTOR (NJL5165K)
1-59 9278299600 REC SWITCH
1-62 9278299800 RP HEAD (SS15R-AA4N1)
1-63 9278300900 E HEAD (LE15A-C1)
1-64 9278299900 MOTOR (EG530KD-2B)
1-67 9278300000 LEAF SWITCH (LSA-1114F)
DESCRIPTION REMARKS
